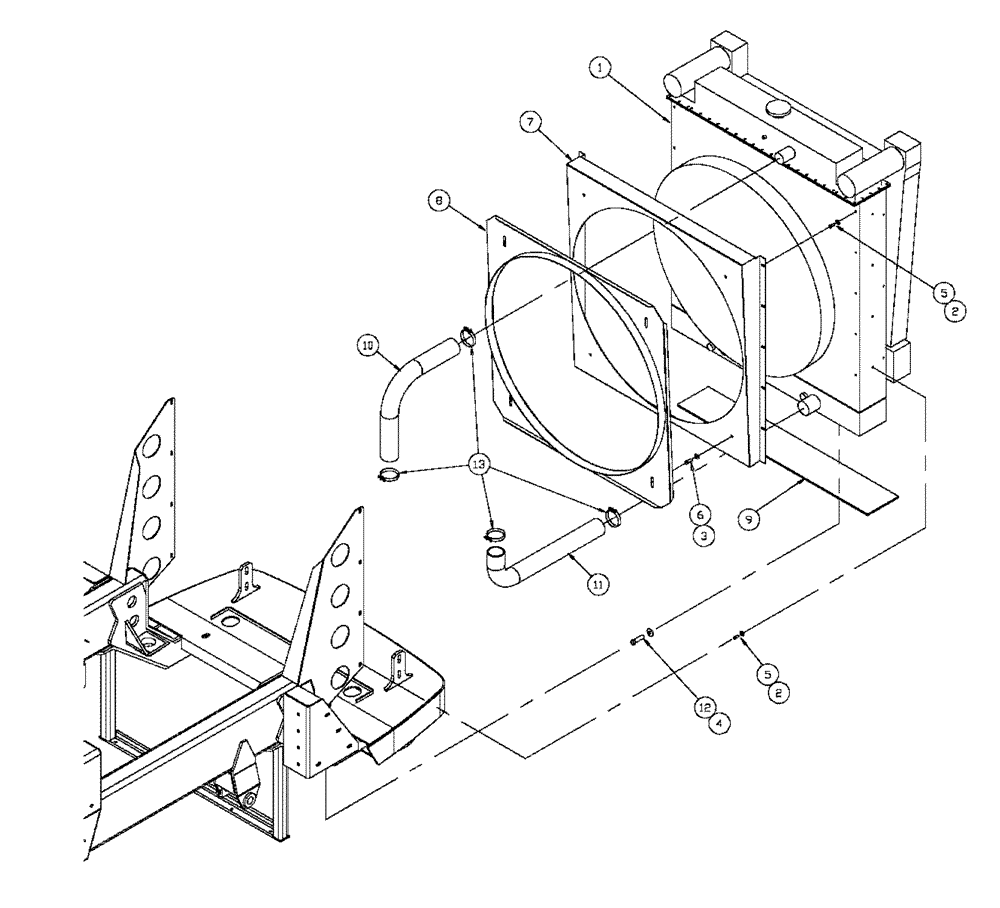

Запчасти Case IH 4375 (02-008[02]) - RADIATOR ASSEMBLY, WITHOUT OIL COOLER (01) - ENGINE

1

BN300027

RADIATOR

40 X 45, 4 Coolers

1шт.

1a

BN300011

ANGLE

Chan. Mount, Oil Cooler

1шт.

Service Parts For Ref. 1

1шт.

1b

BN300013

TANK

1шт.

Service Parts For Ref. 1

1шт.

1c

BN300029

RADIATOR

Water, 40 x 45

1шт.

Service Parts For Ref. 1

1шт.

1d

BN300030

RADIATOR

Bottom Tank, 40 x 45

1шт.

Service Parts For Ref. 1

1шт.

1e

BN300031

COOLER ASSY.

CAC, 40 X 45 Rad

1шт.

Service Parts For Ref. 1

1шт.

1f

BN305644

OIL COOLER

Radiator, 30 X 38, -20 Mb

1шт.

Service Parts For Ref. 1

1шт.

1g

BN306028

RADIATOR CAP

15# Sae Med

1шт.

Service Parts For Ref. 1

1шт.

1h

BN300028

RADIATOR

Assy 40 X 45 3 Coolers

1шт.

Same Part Of Radiator Assembly, 40 X 45, Coolers, P/N. "300027" But Opposite Side

1шт.

1j

BN300013

TANK

1шт.

Service Parts For Ref. 1

1шт.

1k

BN300029

RADIATOR

Water, 40 x 45

1шт.

Service Parts For Ref. 1

1шт.

1l

BN300030

RADIATOR

Bottom Tank, 40 x 45

1шт.

Service Parts For Ref. 1

1шт.

1m

BN300031

COOLER ASSY.

CAC, 40 X 45 Rad

1шт.

Service Parts For Ref. 1

1шт.

1n

BN306028

RADIATOR CAP

15# SAE Medium

1шт.

Service Parts For Ref. 1

1шт.

2

BN300497

WASHER,M8, 10.9

18шт.

3

BN300499

WASHER,M10, 10.9

4шт.

4

BN300501

WASHER

M16, FW, 10.9

2шт.

5

80043233

SCREW

Hex, M8 x 20, 10.9

18шт.

6

BN301045

BOLT,Hex, M10 x 25, 10.9, Full Thd

4шт.

7

BN302188

BOX

Fan Shroud, 38"

1шт.

8

BN302192

FAN

38"

1шт.

9

BN302276

RADIATOR

7 X 43

1шт.

10

BN302306

HOSE,2.50" ID x 14.50", SAE 20R4

Upper

1шт.

11

BN302307

HOSE,2.50" ID x 23.25", SAE 20R4

Lower

1шт.

12

BN302759

BOLT

M16-2 X 50, HH, 10.9

2шт.

13

BN51098

HOSE CLAMP

#48

4шт.

14

BN68738

HYDRAULIC VALVE

Radiator Drain W/90

1шт.

Not Shown

1шт.

15

BN302660

FITTING

20Mor-20Mb

1шт.

Not Shown

1шт.

16

BN305540

HOSE

20-100R1At-20Forx-20Forx-165

2шт.

Not Shown

1шт.
