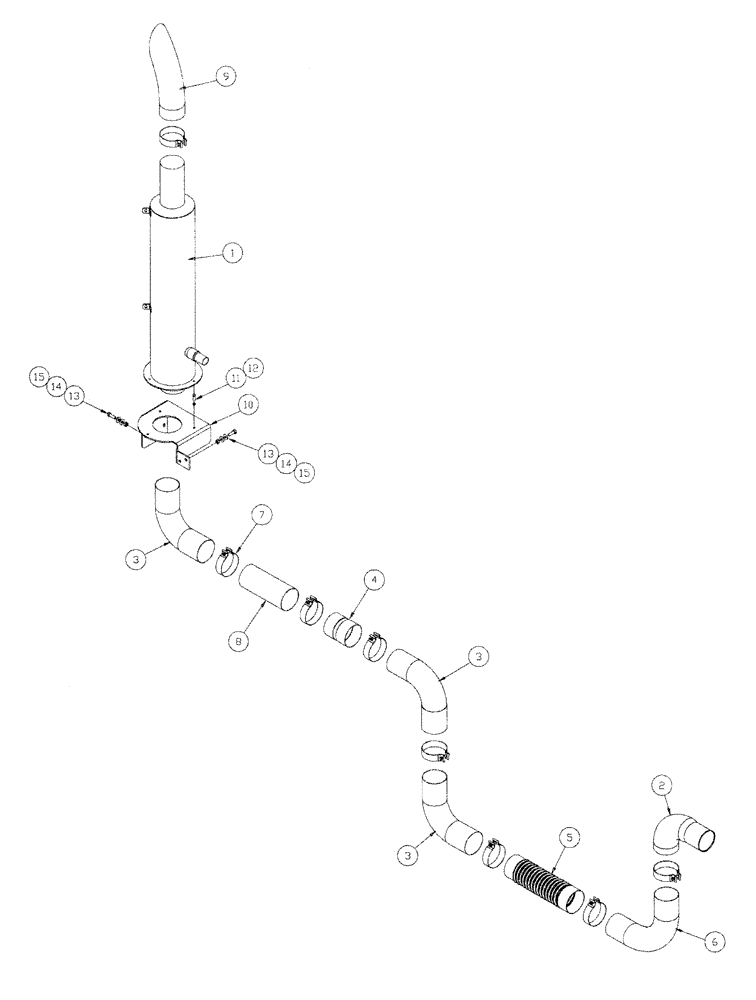

Запчасти Case IH 4375 (02-007) - AIR EXHAUST GROUP (01) - ENGINE

1

BN311344

MUFFLER

Assembly, 18-2450 CFM

1шт.

2

BN303452

FLANGE

Exhaust

1шт.

3

BN303454

ELBOW

90, 5" ID, OD

3шт.

4

BN303455

HYD CONNECTOR

5", ID

1шт.

5

BN303456

FLEXIBLE HOSE,18.00"

1шт.

6

BN303457

ELBOW

90 5" O.D.

1шт.

7

BN303459

PIPE CLAMP

Muffler, 5"

8шт.

8

BN303476

TUBE

Exhaust, 5" O.D., 12" L

1шт.

9

BN303493

EXHAUST SYSTEM PIPE

5" W/ Turnout

1шт.

10

BN304531

BRACKET

Muffler

1шт.

11

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

3шт.

12

BN300393

NUT

M10-1.5, FLN, 10.9

3шт.

13

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

5шт.

14

BN300500

WASHER,M12, 10.9

10шт.

15

BN304551

SCREW

M12-1.75, FLN, 10.9

5шт.
