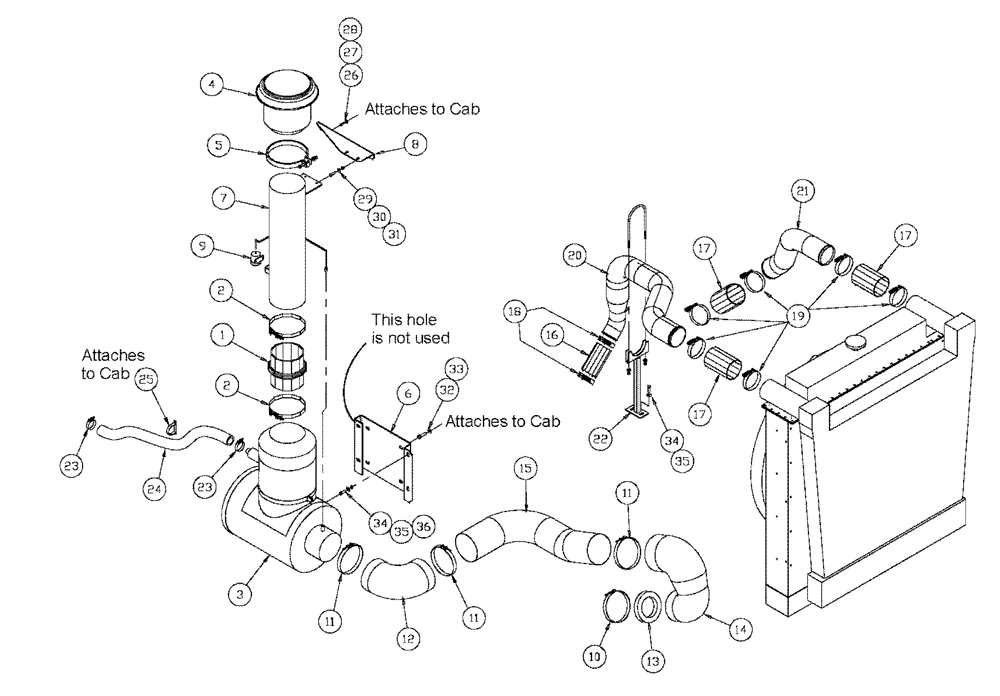

Запчасти Case IH 4375 (02-006) - AIR INTAKE GROUP (01) - ENGINE

1

BN2390854

HOSE

Hump 7 To 7

1шт.

2

BN2396358

CLAMP

T-Bolt Band 7"

2шт.

3

BN300018

AIR CLEANER

STB 14

1шт.

3a

BN300019

ADAPTER

11 To 7 For Air CL

1шт.

Service Parts For Ref. 3

1шт.

3b

BN300022

AIR FILTER

14 Primary

1шт.

Service Parts For Ref. 3

1шт.

3c

BN300023

AIR FILTER

14 Safety

1шт.

Service Parts For Ref. 3

1шт.

3d

BN300024

AIR FILTER

14 Ultra Web

1шт.

Service Parts For Ref. 3

1шт.

3e

BN300025

AIR CLEANER

STB 14, Precleaner Body STB 14

1шт.

Service Parts For Ref. 3

1шт.

3f

BN300026

BODY

Band, Precealner STB 14

1шт.

Service Parts For Ref. 3

1шт.

4

BN300020

PROTECTION CAP

Rain, Air CLR

1шт.

5

BN303444

CLAMP

Raincap

1шт.

6

BN302282

MOUNTING PLATE

Air Filter To Cab

1шт.

7

BN302813

PIPE

Air Intake Riser

1шт.

8

BN302821

BRACKET

Riser

1шт.

9

BN303501

FILTER

Minder

1шт.

10

BN2390361

SPECIAL CLAMP

T-Bolt Band 5.5"

1шт.

11

BN2390362

SPECIAL CLAMP

T-Bolt Band 6.5"

3шт.

12

BN9-22

ELBOW

6 x 90, Rubber

1шт.

13

BN302203

Rubber, 5 To 4

1шт.

14

BN302204

ELBOW

Rubber, 180 X 6 X 5

1шт.

15

BN302210

PIPE

Air 6" X 90D

1шт.

16

BN2390865

HOSE

CAC 3" 367 Series

1шт.

17

BN2390871

HOSE

CAC 4" Series 367

3шт.

18

BN300759

CLAMP

Constant Torque, 3.25"

2шт.

19

BN300760

CLAMP

Constant Torque, 4.25"

6шт.

20

BN302791

Charge Air Pressure

1шт.

21

BN302792

TUBE

Charge Air Return

1шт.

22

BN305965

SUPPORT

CAC Tube Support

1шт.

22a

BN25927

CLAMP,104.8mm ID

4" Muffler

1шт.

Associated Part Of CAC Tube Support, P/N BN305965

1шт.

23

BN76084

HOSE CLAMP

Adj. #24, SS

2шт.

24

BN306562

HOSE,1.50" ID x 42.00"

1.5 X 42

1шт.

25

BN2399320

CLAMP

Loom, Del City #2032

1шт.

26

BN50486

BOLT

1/4-20 X .625, HH, G5

3шт.

27

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

0.281 X 0.625 X 0.065 HTS DOR HDN

3шт.

28

ZPX24236

SEALANT, THREAD

Loctite - #242

1шт.

29

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

30

BN300497

WASHER,M8, 10.9

2шт.

31

86528579

NUT,M8 x 1.25

2шт.

32

86050212

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

4шт.

33

86637952

WASHER,0.47" ID x 0.92" OD x 0.07" Thk

0.469 x 0.922 x 0.065, Hardened

4шт.

34

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

5шт.

35

BN300499

WASHER,M10, 10.9

5шт.

36

BN304419

NUT

M10-1.5, NLN, 10.9

3шт.
