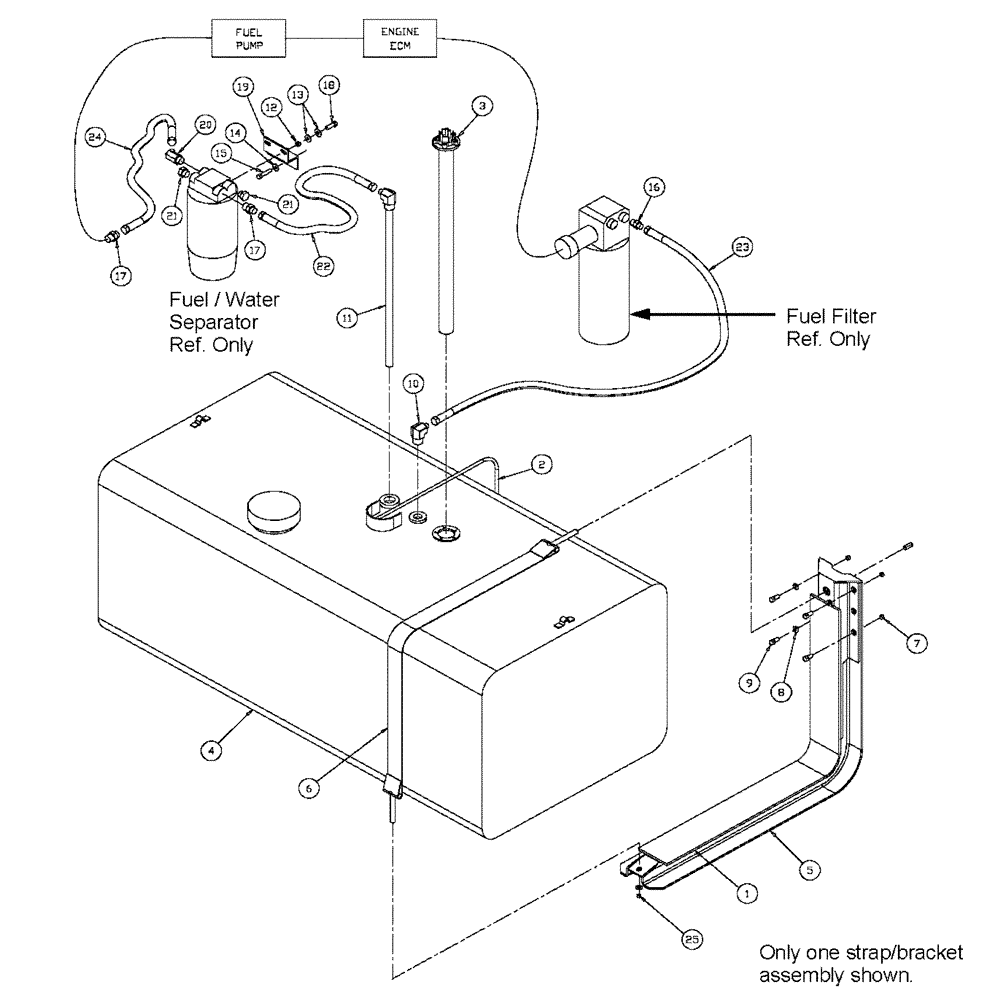

Запчасти Case IH 4375 (02-005) - FUEL TANK GROUP (01) - ENGINE

1

87484460

BELT,76.67 mm W x 6096.00 mm L

4 Ply, Cut To Fit

10шт.

2

BN2390873

HOSE,0.31" ID

Fuel, 815-25R

3.5шт.

3

BN306489

ASSEMBLY

Fuel Tube Type, 20"

1шт.

4

BN2395008

TANK

Fuel 120 Gallon (MICH)

1шт.

4a

BN2395003-003

CAP

Fuel, 878

1шт.

Service Parts For Ref. 4

1шт.

4b

BN2395003-004

GASKET

For Fuel Cap

1шт.

Service Parts For Ref. 4

1шт.

5

87267439

BRACKET, SUPPORTING

Fuel Tank

2шт.

6

BN2395008-002

STRAP

Assembly, Fuel Tank

2шт.

7

BN300359

BOLT

M12-1.75, FLN, 8.8

8шт.

8

BN300500

WASHER,M12, 10.9

16шт.

9

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

8шт.

10

BN302496

FITTING

6Mor-8Mp90

1шт.

11

BN7133010

TUBE

Fuel, P/U Tube

1шт.

12

BN300429

BOLT

M8-1.25, FlN, 8.8

2шт.

13

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

4шт.

14

BN300490

BOLT

M10, FW, G5

2шт.

15

BN301045

BOLT,Hex, M10 x 25, 10.9, Full Thd

2шт.

16

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

1шт.

17

BN302647

FITTING

6MOR - 8MB

2шт.

18

BN302737

BOLT

M8-1.25 X 40, HH, 10.9

2шт.

19

BN302812

BRACKET

Fuel/Water Separator

1шт.

20

BN303940

FITTING

6Mor-8Mb45

1шт.

21

BN446025

PLUG

Hex O-Ring 3/4-16

2шт.

22

BN303485

HOSE

6-100R1-6Forx-6Fjx-123

1шт.

23

BN303486

HOSE

6-100R1-6Forx-6Forx-138

1шт.

24

BN303487

HOSE

6-100R1-6Forx-6Forx-54

1шт.

25

BN2395003-005

NUT

Fuel Tank Strap

2шт.
