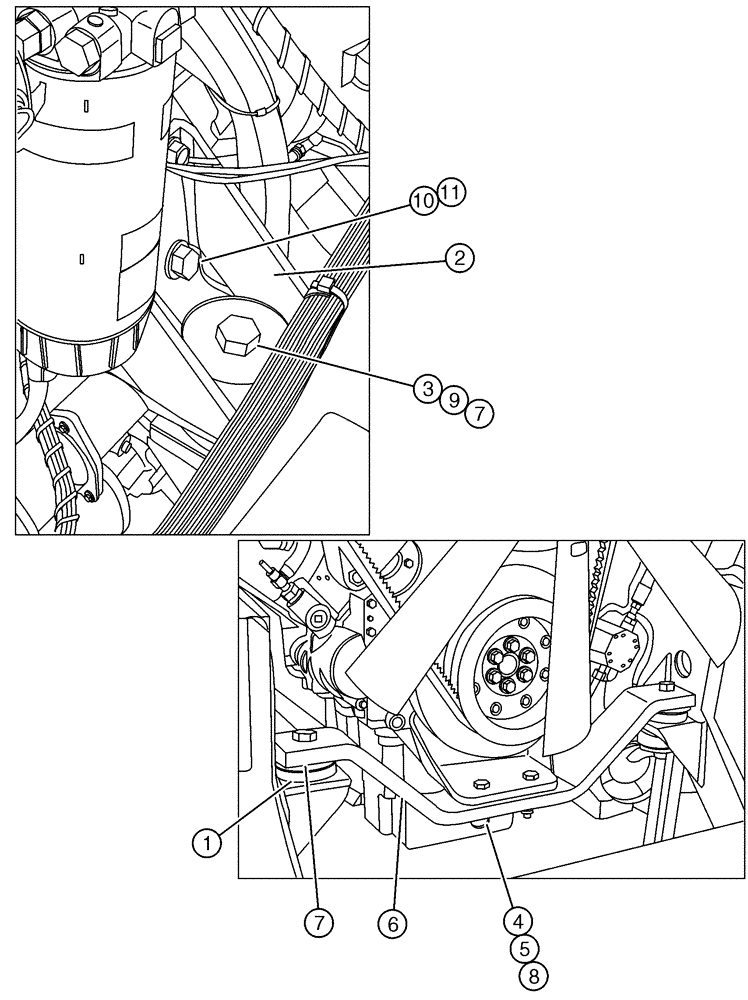

Запчасти Case IH 4375 (02-003) - ENGINE MOUNTING (01) - ENGINE

1

BN300012

DAMPER

Vibration, Engine

8шт.

2

BN300066

Rear Engine, Repto

1шт.

3

814-22140

BOLT,Hex, M22 x 140mm, Cl 8.8

M22-2.5 X 140, HH, 10.9

4шт.

4

BN300384

BOLT

M20-2.5 X 80, HH, 10.9

2шт.

5

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

4шт.

6

BN301789

MOUNTING PLATE

Front Engine

1шт.

7

BN302284

WASHER,23.88mm ID x 98.55mm OD x 6.35mm Thk

Rebound, 3.88 od x .94 id x .25

8шт.

8

380424

NUT,M20 x 2.5, Cl 8

2шт.

9

BN305518

NUT

M22-2.5, NLN, 10.9

4шт.

10

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

8шт.

11

BN50956

BOLT

3/4-10 X 2.5, HH, G8

8шт.
