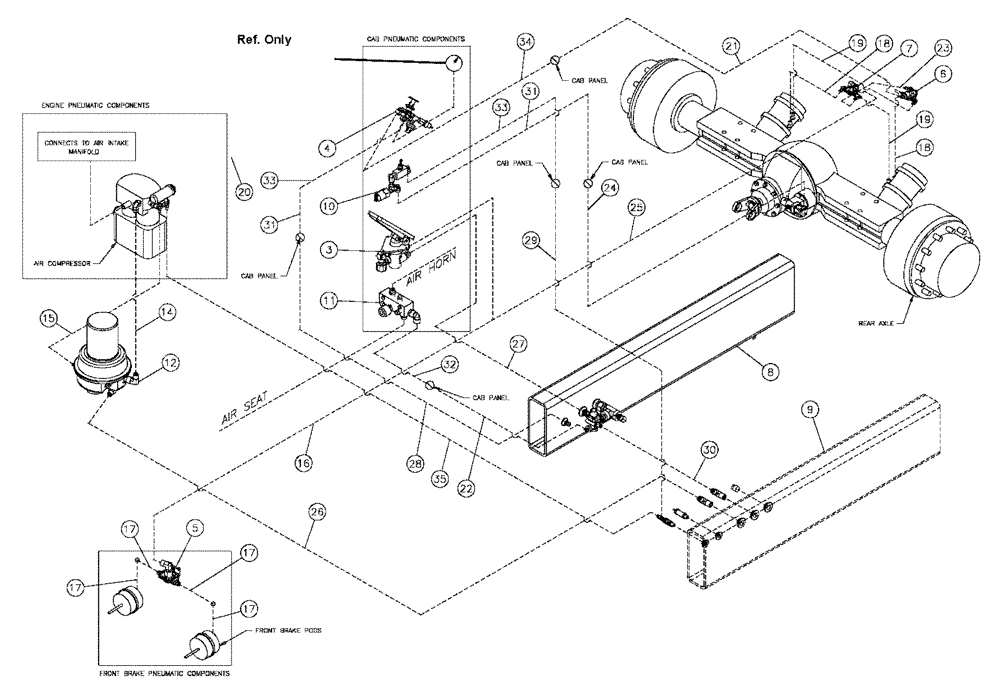

Запчасти Case IH 4375 (07-001) - PNEUMATIC ASSEMBLY Pneumatics

1

NSS

NOT SOLD SEPARAT

Air Compressor Group

1шт.

See Fig. 07-002

1шт.

3

NSS

NOT SOLD SEPARAT

Brake Pedal Valve Group

1шт.

See Fig. 07-003

1шт.

4

NSS

NOT SOLD SEPARAT

Parking Brake Valve Group

1шт.

See Fig. 07-004

1шт.

5

NSS

NOT SOLD SEPARAT

Quick Release, Front Brake

1шт.

See Fig. 07-005

1шт.

6

NSS

NOT SOLD SEPARAT

Quick Release, Park Brake

1шт.

See Fig. 07-006

1шт.

7

NSS

NOT SOLD SEPARAT

Quick Release, Rear Brake

1шт.

See Fig. 07-007

1шт.

8

BN302679

Secondary Air Tank

1шт.

See Fig. 07-008

1шт.

9

BN302678

Primary Air Tank

1шт.

See Fig. 07-009

1шт.

10

NSS

NOT SOLD SEPARAT

Assy, 2-Speed Shift Circuit

1шт.

See Fig. 07-010

1шт.

11

7148114-B

MANIFOLD

Assembly, Air

1шт.

See Fig. 07-011

1шт.

12

BN302677

PACKAGE

Air Dryer

1шт.

See Fig. 07-012

1шт.

14

BN303957

HOSE

10-100R14-10Fjx-10Fjx-85

1шт.

15

BN303497

4-100R5-4Fjx-4Fjx-77

1шт.

16

BN3600003-066.70

451 AR-8-01

1шт.

17

BN3600002-022.54

451 AR-6-01

1шт.

18

BN3600002-038.50

451 AR-6-01

1шт.

19

BN3600002-034.54

451 AR-6-01

1шт.

21

BN3600001-162.38

451 AR-4-01

1шт.

22

BN3600002-032.54

451 AR-6-01

1шт.

23

BN3600002-018.54

451 AR-6-01

1шт.

24

BN3600001-170.38

451 AR-4-01

1шт.

25

BN3600003-180.70

451 AR-8-01

1шт.

26

BN3600003-076.70

451 AR-8-01

1шт.

27

BN3600003-056.70

451 AR-8-01

1шт.

28

BN3600001-034.38

451 AR-4-01

1шт.

29

BN3600001-056.38

451 AR-4-01

1шт.

30

BN3600003-044.70

451 AR-8-01

1шт.

31

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

1шт.

32

BN2292088

AIR INTAKE TUBE

3/8" Black

1шт.

33

BN2393051

TUBE,1/4" X 500' BULK, SAE J844, RED

Air, Synflex 1/4" Red, Bulk

1шт.

34

BN2393053

TUBE,1/4" X 100' BULK, SAE J844, GREEN

Air, Synflex 1/4" Green

1шт.

35

BN303498

4-100R5-4Fjx-4Fjx-90

1шт.
