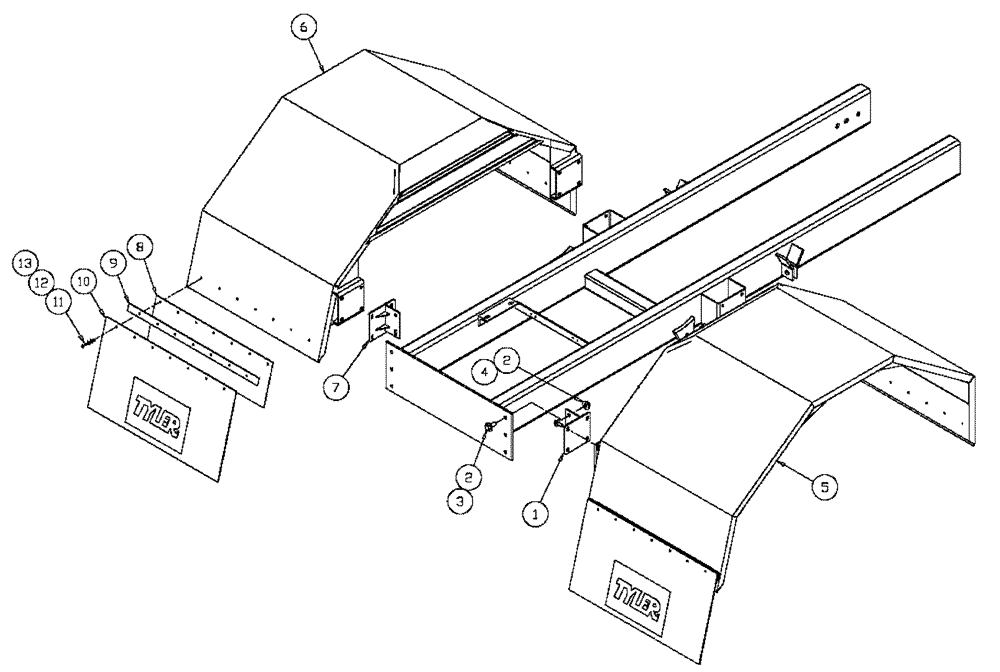

Запчасти Case IH 4375 (10-008) - REAR FENDER, 73” Options

0

BN302313

Rear, 73" Steel Complete

1шт.

Includes Refs. 1 - 7

1шт.

1

BN306032

MOUNTING PLATE

Rear Fender, CS

1шт.

2

BN300491

BOLT

M12, FW, G5

32шт.

3

BN301068

NUT

M12-1.75 X 25, HH, 10.9

16шт.

4

BN304551

SCREW

M12-1.75, FLN, 10.9

16шт.

5

BN306094

FENDER

CS

1шт.

6

BN306093

FENDER

RS

1шт.

7

BN306157

MOUNTING PLATE

Rear Fender, RS

1шт.

7a

BN306263

MUDFLAP

73" Rear Complete

1шт.

Includes Refs. 8 - 13

1шт.

8

BN8091049

SHEET METAL

Mud Flap Brace

2шт.

9

BN306239

MOUNTING PLATE

Mud Flap

2шт.

10

BN306236

Mud 73" Tire

2шт.

11

BN300472

BOLT

M10-1.5 X 35, HH, SS

14шт.

12

BN300507

WASHER

M10, Flat, SS

28шт.

13

100037

LOCK NUT,M10 x 1.5, Cl 8

14шт.
