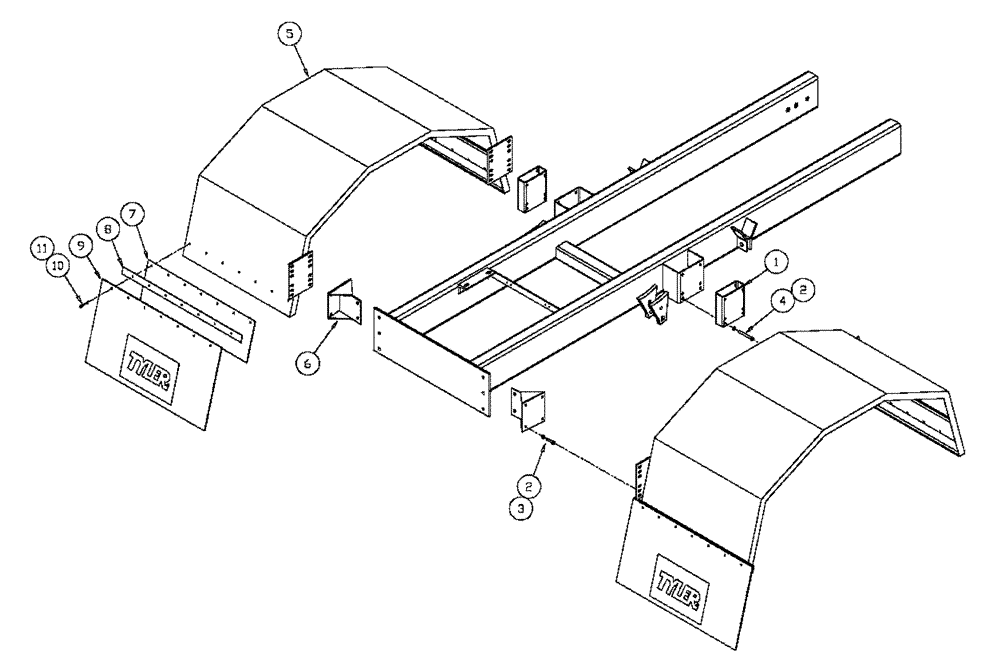

Запчасти Case IH 4375 (10-007) - REAR FENDER, 66” Options

0

BN306321

Fender, 66"

1шт.

Includes Refs. 1 - 6

1шт.

1

BN302346

SPACER

66 Fender, Front

2шт.

2

100038

NUT,M12 x 1.75, Cl 8

16шт.

3

BN302755

BOLT

M12-1.75 X 120, HH, 10.9

8шт.

4

BN302747

BOLT

M12-1.75 X 50, HH, 10.9

8шт.

5

BN8205181

FENDER

Rear Titan

2шт.

6

BN8205209

MOUNTING PLATE

Rear Fender

2шт.

6a

BN8194088

MUDFLAP

1шт.

Includes Refs. 7 - 11

1шт.

7

BN8091049

SHEET METAL

Mud Flap Brace

2шт.

8

BN8091048

MOUNTING PLATE

Mud Flap

2шт.

9

BN310599

MUDFLAP

66"

2шт.

10

BN2403263

HH 3/8-16 X 1 1/2 SS

14шт.

11

BN2294495

LOCK NUT

3/8-16 SS Flex Lock

14шт.
