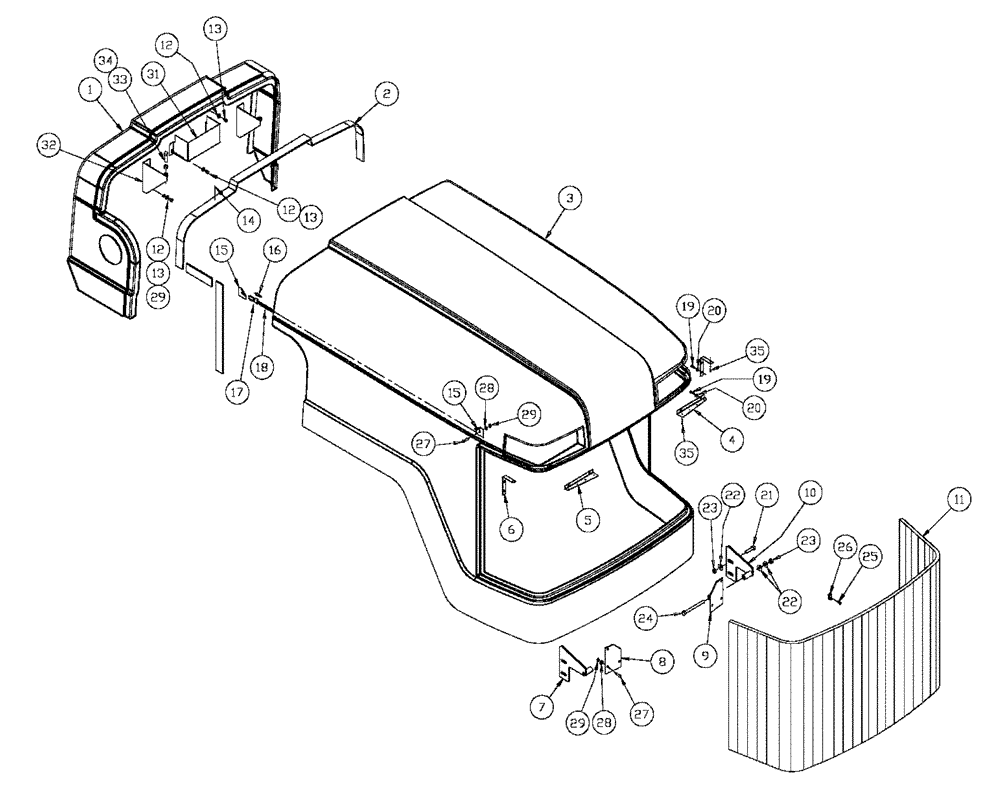

Запчасти Case IH 4375 (04-012) - HOOD GROUP Frame & Suspension

1

BN303713

Cowling, Hood, 542

1шт.

2

BN313860

BELT,1.25" W x

Cotton, Red

1шт.

3

BN300058

Front, 4 Wheeler

1шт.

4

BN303232

MOUNTING PARTS

headlamp, LH

1шт.

5

BN303233

BRACKET

Headlamp, RH

1шт.

6

BN303231

BRACKET

Headlamp Back

2шт.

7

BN302851

MOUNTING PLATE

Hinge, Frame, RH

1шт.

8

BN302853

Hinge Plate, Hood, RH

1шт.

9

BN302854

Hinge Plate, Hood, LH

1шт.

10

BN302852

MOUNTING PLATE

Hinge, Frame, LH

1шт.

11

BN300059

GRILLE

Wrap Around

1шт.

12

BN50141

WASHER

5/16, FW, G5

12шт.

13

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

12шт.

14

BN303821

RIVET

.18 x .57 Steel

19шт.

15

BN7142951

SHEET

Cable Anchor

4шт.

16

BN2402055

THIMBLE

Wire Rope 3/16"

4шт.

17

BN2403398

CLAMP

Wire Rope 3/16

4шт.

18

BN2403397

CABLE

Vinylcoat 3/16 DRV, 10FT

1шт.

19

86505530

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

8шт.

20

BN300488

WASHER

M6, Flat, 8.8

8шт.

21

BN302747

BOLT

M12-1.75 X 50, HH, 10.9

4шт.

22

BN300500

WASHER,M12, 10.9

8шт.

23

BN300359

BOLT

M12-1.75, Fln, 8.8

6шт.

24

BN301082

NUT

M12-1.75 X 140, Hh, 8.8

2шт.

25

BN307091

SCREW,M6 x 20mm

M6-1 X 20, AH, SS

32шт.

26

BN300401

CLIP

U Nut, On - M6-1

32шт.

27

BN2403270

BOLT

Carriage 5/16 X 1 1/4

8шт.

28

BN50144

LOCK WASHER

5/16" SS Lock

8шт.

29

BN1470403C

FLANGE NUT

5/16-18, FLN, G8

10шт.

30

BN43840

LATCH

2шт.

Not Shown

1шт.

31

BN306490

BOX

Wiper

1шт.

32

BN303717

Cowl

2шт.

33

50286

BOLT Hex, 1/2"-13 x 1 3/4", G5

2шт.

34

BN50072

NUT

Hex, 1/2"-13, G5

2шт.

35

BN303821

RIVET

.18 x .57 Steel

10шт.
