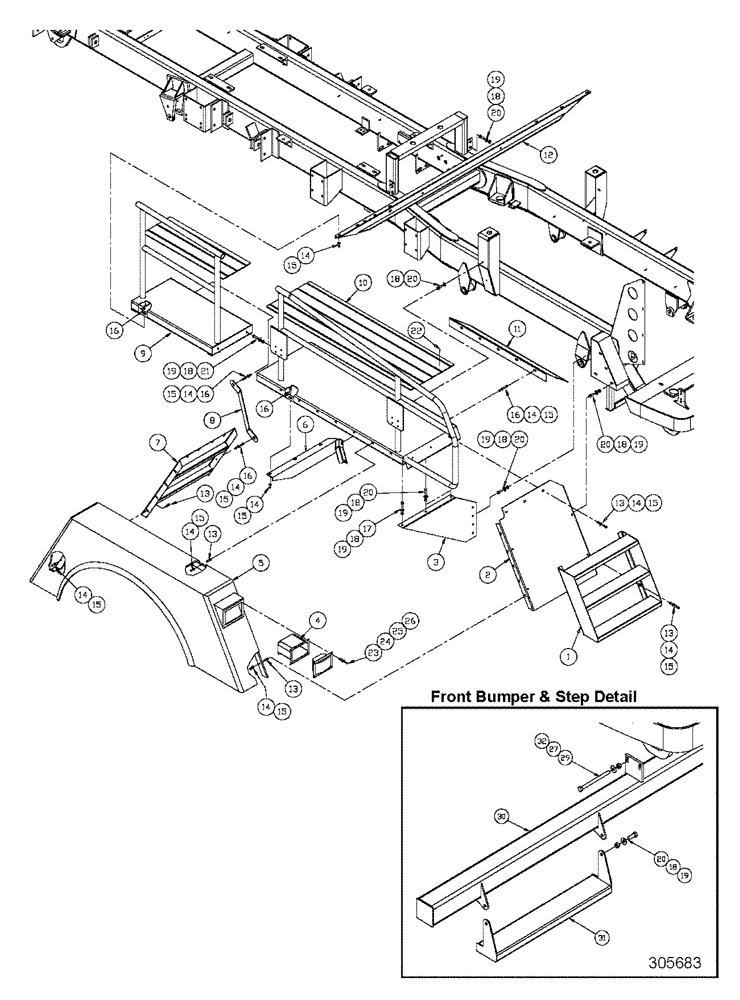

Запчасти Case IH 4375 (04-010) - FRONT FENDER GROUP - CURB SIDE Frame & Suspension

1

BN7141968

STEP

Front

1шт.

2

BN7141970

SPLASH SHIELD

Front PL C/S

1шт.

3

BN303562

SUPPORT

Walkway, CS

1шт.

4

BN7143130

COVER ASSY

HD LT Mud

1шт.

5

BN7143124

FENDER

Fiberglass, C/S

1шт.

6

BN301792

SUPPORT

Walkway, Middle RH

1шт.

7

BN7141904

SPLASH SHIELD

Rear Platform

1шт.

8

BN303682

GUARD

Splash

1шт.

9

BN304550

Split

1шт.

10

BN2401312

MAT

P-80 GRS/PSA

8.25шт.

11

BN7141787

SPLASH SHIELD

Apron-RH

1шт.

12

BN300080

BASE PLATE

Walkway Mount

1шт.

13

BN300472

BOLT

M10-1.5 X 35, HH, SS

23шт.

14

BN50138

WASHER,1/4", SS

36шт.

15

100037

LOCK NUT,M10 x 1.5, Cl 8

36шт.

16

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

13шт.

17

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

18

BN300500

WASHER,M12, 10.9

19шт.

19

BN304551

SCREW

M12-1.75, FLN, 10.9

17шт.

20

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

15шт.

21

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

3шт.

22

BN2394894

RIVET

Pop 97525A032 3/16X

4шт.

23

BN2403271

BOLT

Carriage, SS

4шт.

24

BN50140

LOCK WASHER

Spring, 1/4", SS

4шт.

25

BN50138

WASHER,1/4", SS

4шт.

26

BN50054

NUT,1/4"-20, SS

4шт.

29

BN301085

NUT

M12-1.75 X 170, HH, 8.8

4шт.

30

BN301897

BUMPER

Front Step

1шт.

31

BN301900

STIRRUP

Front Step

2шт.
