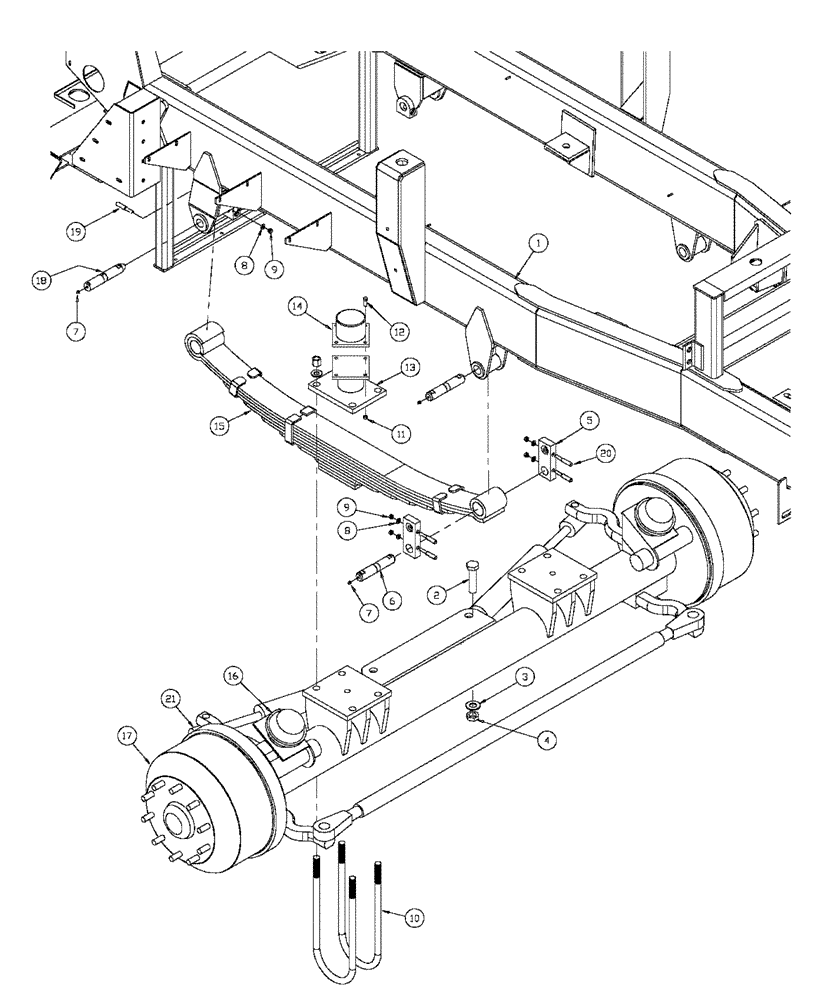

Запчасти Case IH 4375 (04-001) - FRONT AXLE ASSEMBLY Frame & Suspension

1

BN300063

Main, 4 Wheeler

1шт.

2

428-1672

BOLT,Hex, 1" - 14 x 4-1/2", Gr 8

Hex, 1"-14 x 4", G8

2шт.

3

BN2298333

WASHER

Hardened 1 Wa1772

2шт.

4

BN1470411F

LOCK NUT

1"-14 Flex

2шт.

5

BN2394958

SHACKLE

Front, E397-55

4шт.

6

BN2391613

PIN,31.7mm OD x 165.1mm L

Shackle B1367-55

4шт.

7

BN2651850

LUBE NIPPLE

Zerk, 1/8 STR 5000

6шт.

8

BN2292371

NUT

3/8, FW, G8

10шт.

9

BN1470404C

LOCK NUT

NC 3/8-16 Flex Lock

10шт.

10

BN2292187

U-BOLT

U, 7/8 X 6 1/8 X 18 1/2

4шт.

11

BN300358

NUT

M10-1.5, FLN, 8.8

8шт.

12

BN301045

BOLT,Hex, M10 x 25, 10.9, Full Thd

8шт.

13

BN7147045

SUPPORT

U-Bolt Front Spring

2шт.

14

BN5001054

BUMPER

Rubber, 3 3/8"

2шт.

15

BN2394957

SPRING

Double Eye 572383C91

2шт.

16

BN1666159

PLUG

Allen Head 3/8

2шт.

17

BN7147025

AXLE

Front

1шт.

18

BN2391614

PIN,31.7mm OD x 178.82mm L

Front B1366-55 Flagg

2шт.

19

BN2294185

KEY

Draw LP#107 Flagg

2шт.

20

BN2294181

KEY

Draw, #113

8шт.

21

BN2293237

BOOT

Garrison

2шт.
