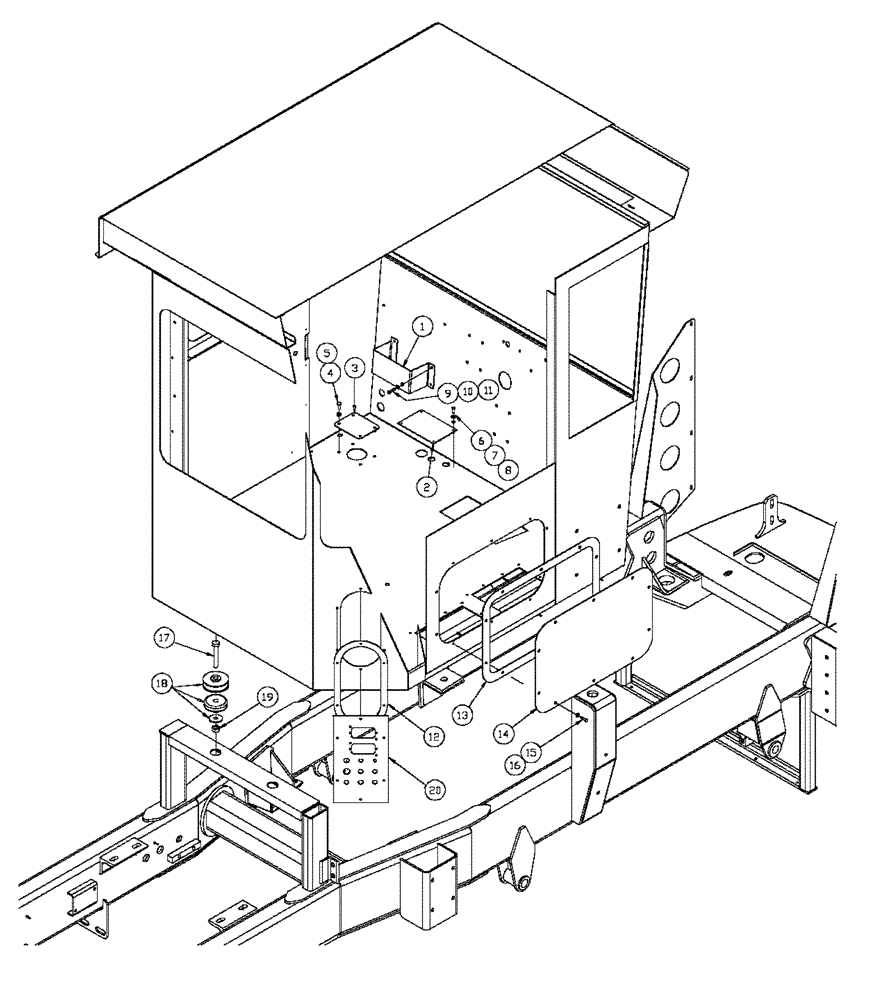

Запчасти Case IH 4375 (01-007) - CAB AND PANEL MOUNTING (10) - CAB

1

BN7142499

SHEET

Kick Plate

1шт.

2

BN306551

PLATE

Cover

1шт.

3

BN7146086

SHEET

Cover Plate Auxiliary

1шт.

4

BN1913308C

HH 5/16-18 X 3/4 NC

4шт.

5

BN1470403C

FLANGE NUT

5/16-18, FLN, G8

4шт.

6

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

7

BN50138

WASHER,1/4", SS

2шт.

8

BN2294431

SET SCREW,1/4" - 20

1/4-20, FLN, SS

2шт.

9

BN2403255

BOLT

HH 1/4-20 X 1 NC

4шт.

10

80682

LOCK WASHER,1/4"

4шт.

11

BN1470002

NUT

1/4-20, HH, G5

4шт.

12

BN2390723

GASKET

Panel

1шт.

13

BN2390722

GASKET

Panel

1шт.

14

BN7142152

SHEET

Cover Plate Side

1шт.

15

BN2403261

BOLT

HH 1/4-20 X 1 SS

16шт.

16

BN2392389

WASHER

Flat 1/4 SS

16шт.

17

BN302765

BOLT

M16-2 X 100, HH, 10.9

4шт.

18

BN2291320

CUSHION

3910274

4шт.

18a

BN306746

Cab Mount

1шт.

Service Parts For Ref. 18

1шт.

18b

BN306747

Cab Mount

1шт.

Service Parts For Ref. 18

1шт.

18c

BN306748

Cab Mount

1шт.

Service Parts For Ref. 18

1шт.

19

832-46416

NUT,M16 x 2, Cl 8

4шт.

20

BN8196071

PANEL

(Chassis Only)

1шт.
