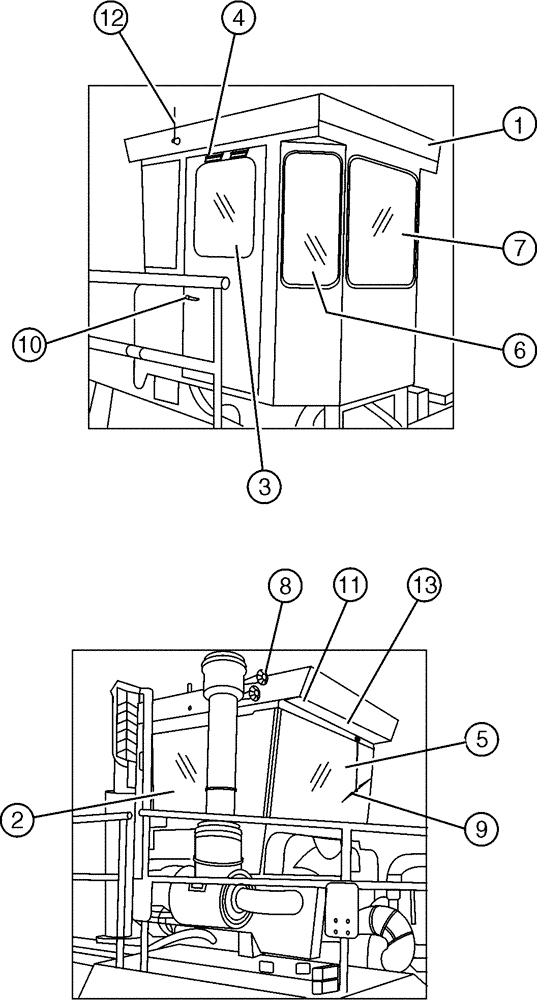

Запчасти Case IH 4375 (01-006) - CAB EXTERIOR (10) - CAB

1

BN2406306

CAB FRAME

Sub Assembly (Steel)

1шт.

1

BN2406308

Sub Assembly (Stainless Steel)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

2

BN2406306-005

GLASS

RH Window/Pop Out

1шт.

3

BN2406306-006

GLASS

Door (Pop Out)

1шт.

4

BN2406306-008

HINGE

Pop-Out Window

1шт.

5

BN2406306-012

GLASS

Windshield

1шт.

6

BN2406306-013

ANGLE

Corner SS Glass

1шт.

7

BN2406306-014

GLASS

Rear Side 3-15054

1шт.

8

BN324834

HORN

Fultone, Stainless

1шт.

8a

BN7143114

MOUNTING PLATE

Horn Valve Mount

1шт.

Associated Part Of Horn, Kit 207945, P/N BN2290862

1шт.

9

BN2406306-003

WIPER BLADE

1шт.

9a

BN2406306-004

ARM

Wiper

1шт.

Associated Part Of Wiper Blade, P/N BN2406306-003

1шт.

9b

BN29267

WIPER MOTOR

MOTOR, WIPER 2 Speed, 12V

1шт.

Associated Part Of Wiper Blade, P/N BN2406306-003

1шт.

10

BN2396818

Locking 10840-05

1шт.

10a

BN2297250

LATCH

Door L/H, 11442-16

1шт.

Associated Part Of Handle, Locking 10840-05, P/N BN2396818

1шт.

10b

BN2293877

HANDLE

I 8002 Inside

1шт.

Associated Part Of Handle, Locking 10840-05, P/N BN2396818

1шт.

11

BN2406306-015

BRACKET

Cab Air Filter

1шт.

11a

BN2406306-016

KNOB

Air Filter Bracket

1шт.

Associated Part Of Bracket, Cab Air Filter, P/N BN2406306-015

1шт.

12

BN57222

ANTENNA

Radio

1шт.

12a

BN2391154-003

ANTENNA

Rubber

1шт.

Associated Part Of Antenna, Rubber, Complete W/Mtg Hardware, P/N BN2393116

1шт.

13

BN2403650

CAB FILTER

(Standard)

1шт.

13a

BN2406603

CAB FILTER

Cab Air (Charcoal)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.
