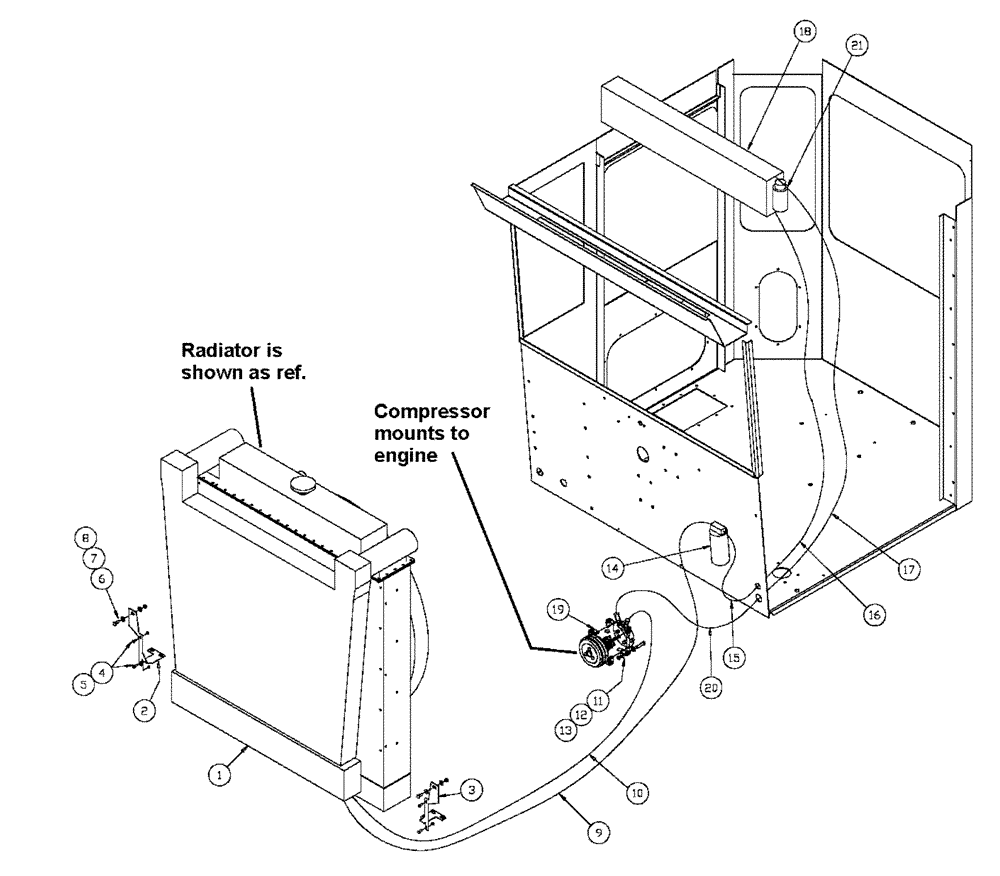

Запчасти Case IH 4375 (01-005) - AIR CONDITIONER GROUP (10) - CAB

1

BN300033

CONDENSER

AC 6 X 36

1шт.

2

BN302694

BRACKET

A/C Condensor, RH

1шт.

3

BN302693

BRACKET

A/C Condensor, LH

1шт.

4

BN301011

NUT

M6-1 X 12, HH, 10.9

4шт.

5

BN300394

BOLT

Hex, M14 x 60, 8.8, Full Thd

4шт.

6

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

2шт.

7

BN300429

BOLT

M8-1.25, FLN, 8.8

2шт.

8

BN300497

WASHER,M8, 10.9

4шт.

9

BN304066

HOSE

6-J51-6Fton90-6Fton90-98

1шт.

10

BN304068

HOSE

8-J51-8Fton90-8Fton134Sp90-70

1шт.

11

BN300393

NUT

M10-1.5, FLN, 10.9

6шт.

12

BN300499

WASHER,M10, 10.9

12шт.

13

BN302472

FITTING

M10-1.5 X 40, HH, 10.9

6шт.

14

BN67797

RECEIVER-DRYER

1шт.

14a

BN67726

CLAMP

receiver dryer

1шт.

Associated Part Of Receiver Dryer, P/N BN67797

1шт.

14b

BN1913634C

3/8-16 X 1, HH, G8

1шт.

Associated Part Of Receiver Dryer, P/N BN67797

1шт.

14c

BN50368

BOLT

3/8-16 X 1.25, HH, G8

1шт.

Associated Part Of Receiver Dryer, P/N BN67797

1шт.

14d

BN1470404C

LOCK NUT

NC 3/8-16 Flex Lock

2шт.

Associated Part Of Receiver Dryer, P/N BN67797

1шт.

15

BN304065

HOSE

6-J51-6Fton-6Fton90-17

1шт.

16

BN304064

HOSE

6-J51-6Fton-6Mbkhd-71

1шт.

17

BN304063

HOSE

10-J51 -10Fton45-10Mbkh-75

1шт.

18

BN2403360

EVAPORATOR

1шт.

19

BN2450312

AIRCOND. COMPRESSOR,W/ Pulley

A/C SD-709

1шт.

20

BN304067

HOSE

10-J51 -10Fton90-10Fton134Sp90-68

1шт.

21

BN2395298

HYDRAULIC VALVE

Expansion

1шт.

21a

BN2294852

O-RING

#6 Neoprene (A/C)

5шт.

Not Shown

1шт.

21b

BN2294854

O-RING

#8 Neoprene (A/C)

2шт.

Not Shown

1шт.

21c

BN2294855

O-RING

#10 Neoprene (A/C)

3шт.

Not Shown

1шт.
