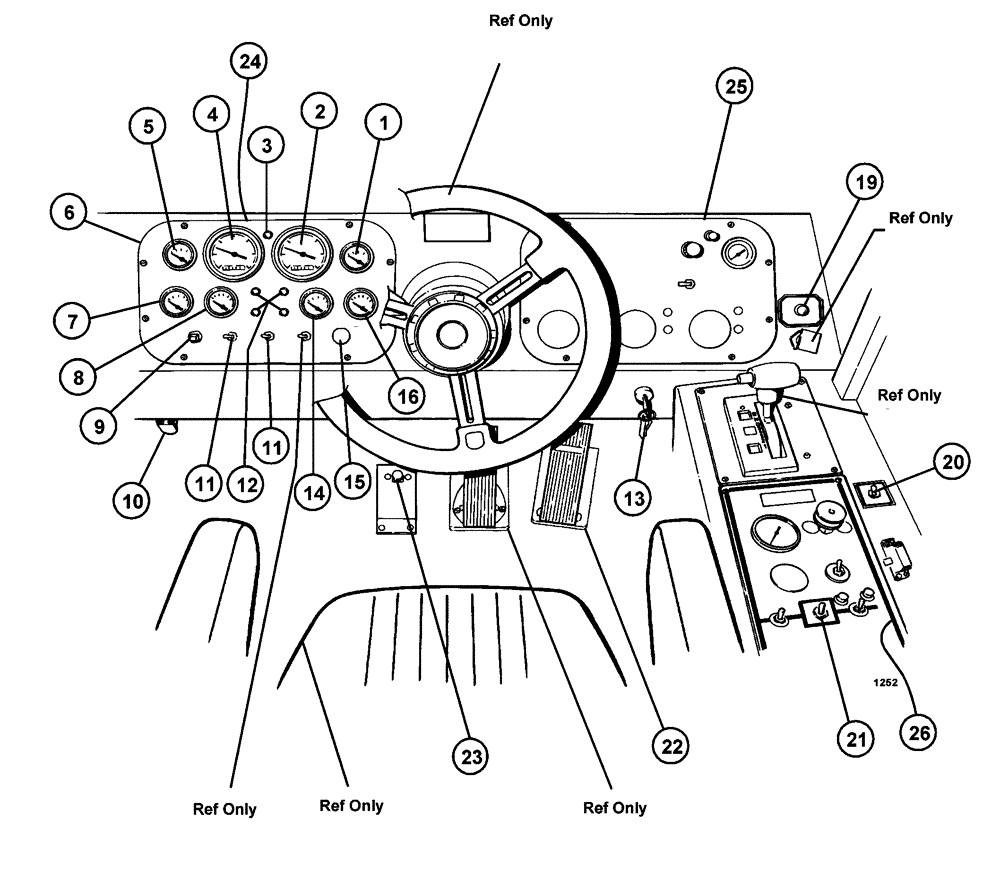

Запчасти Case IH 4375 (01-001) - DASH CONTROLS (10) - CAB

1

BN2296753

GAUGE

Voltmeter

1шт.

2

BN304524

SPEEDOMETER

Speedo, 3.38 X 80 MPH W/OD

1шт.

3

BN2291214

INDICATOR LIGHT

Blue

1шт.

4

86636599

TACHOMETER

3.38 x 3K With Hourmeter

1шт.

5

BN2296752

FUEL GAUGE

1шт.

6

BN304540

DASH PANEL

Left

1шт.

6a

BN55383

BOLT

1/4-20 X 1/2 Bsh 2

4шт.

Associated Part Of Gauge, Fuel Level, P/N 304540

1шт.

7

BN2296754

OIL PRESSURE GAUGE

"Smart"

1шт.

8

BN2296730

GAUGE

Water Temp "Smart”

1шт.

9

BN2293217

BUZZER

1шт.

10

BN65223

POWER SOCKET

Outlet, 12V

1шт.

10a

BN2404968

SELF-TAP SCREW,#8 x 5/8"

HH #8 X 5/8 SLF Tap

4шт.

Associated Part Of Outlet, Auxiliary Power Single, P/N 2392095

1шт.

11

BN2291956

SWITCH

Cutler Hammer

3шт.

12

BN2291234

INDICATOR LIGHT

Red

4шт.

13

BN2401950

IGNITION SWITCH

1шт.

14

BN304547

GAUGE

Oil Temperature 100-240 W/Tr200

1шт.

15

BN2294958

SWITCH

Windshield Wiper

1шт.

16

BN2390774

GAUGE

Air Pressure

1шт.

19

BN2291152

REPAIR KIT

Low Air Pressure 326

1шт.

20

BN24129

SWITCH

On-None-On Dpdt

1шт.

21

BN29445

SWITCH

On-Off-On

1шт.

22

BN300040

THROTTLE

Pedal, Elect, PWM

1шт.

22a

BN302720

PLATE

Elect, Throttle Pedal

1шт.

Associated Part Of Throttle Pedal, Electric, PWM, P/N 300040

1шт.

22b

BN300363

BOLT

M6-1 X 20, HH, 8.8

3шт.

Associated Part Of Throttle Pedal, Electric, PWM, P/N 300040

1шт.

22c

BN300428

NUT

M6-1, FLN, 8.8

3шт.

Associated Part Of Throttle Pedal, Electric, PWM, P/N 300040

1шт.

22d

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

Associated Part Of Throttle Pedal, Electric, PWM, P/N 300040

1шт.

22e

BN304315

NUT

M8-1.25, FLN, 10.9

3шт.

Associated Part Of Throttle Pedal, Electric, PWM, P/N 300040

1шт.

23

BN29522

SWITCH

Dimmer Floor Mount

1шт.

23a

BN29618

MOUNTING PLATE

10 ga HRS 3.5 x 10.5

1шт.

Associated Part Of Switch - Dimmer Floor Mount P/N 29618

1шт.

23b

BN50823

BOLT

5/16-18 X 1, HH, G5

4шт.

Associated Part Of Switch - Dimmer Floor Mount P/N 29618

1шт.

23c

BN55360

LOCK NUT

5/16"-18, NLN, G5

4шт.

Associated Part Of Switch - Dimmer Floor Mount P/N 29618

1шт.

24

BN304541

Left Dash Assembled

1шт.

25

BN7142150

SHEET

Blank Panel

1шт.

For Foam Marker Option, See Fig. 10-012

1шт.

26

BN8196083

SHEET

Right Side Panel, Blank (Chassis Only)

1шт.
