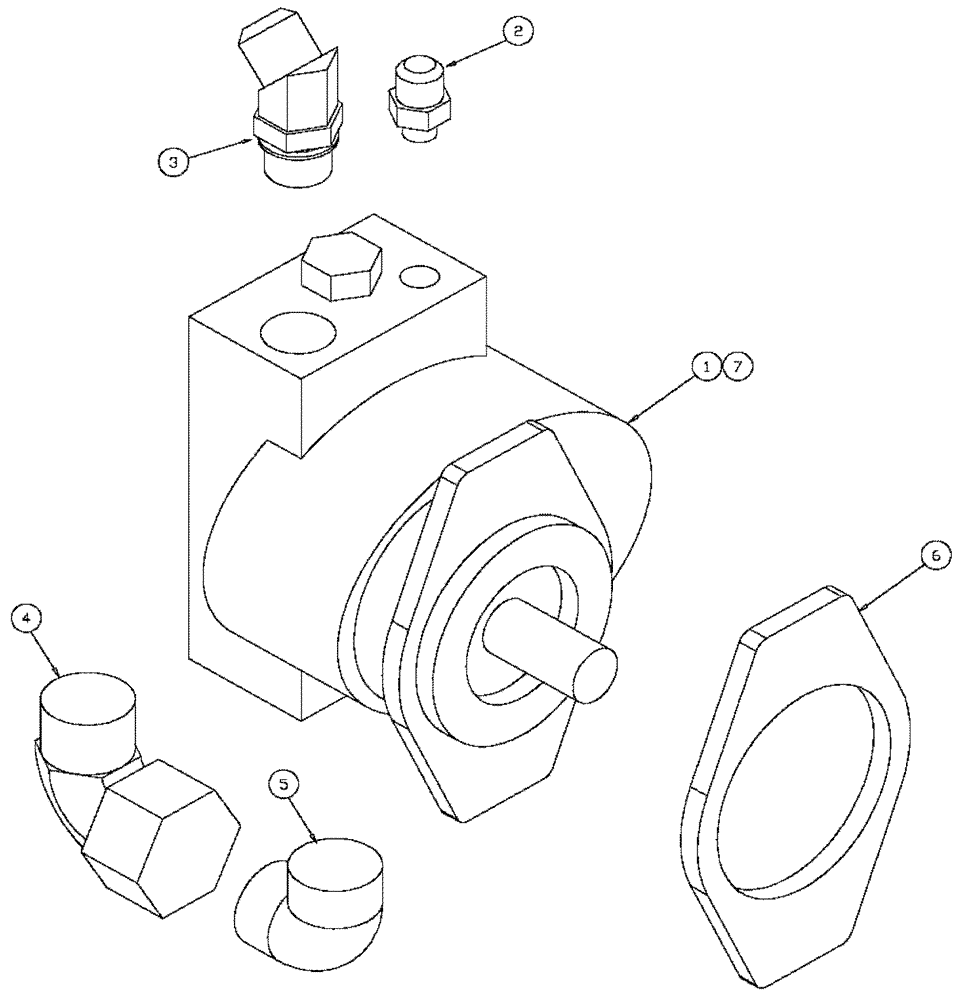

Запчасти Case IH 4330 (06-004) - HYDRAULIC PUMP GROUP (07) - HYDRAULICS

1

BN300038

PUMP

Hydraulic, SS CP180-030,15T

1шт.

1

BN300038R

REMAN-HYD PUMP

Hydraulic, SS CP180-030,15T

1шт.

1

BN300038C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1a

BN2397695-001

SEAL KIT

For Pump

1шт.

Service Parts For Ref. 1

1шт.

1b

BN2397695-004

SPOOL

1шт.

Service Parts For Ref. 1

1шт.

1c

BN307657

SHAFT

1шт.

Service Parts For Ref. 1

1шт.

1d

BN2397695-005

HYDRAULIC VALVE

Relief

1шт.

Service Parts For Ref. 1

1шт.

2

BN2396642

FITTING

8-6 F50X-S (6MB-8MJ)

1шт.

3

BN2293520

3503-12-12 (12MB-12MJ X 45)

1шт.

4

BN2390674

FITTING

3903-20-20 (20MJ-20FJ)

1шт.

5

BN2290150

FITTING

2503-20-20 (20MB-20MJ)

1шт.

6

BN68702

GASKET

2 Bolt SAE B Pad

1шт.

7

BN306620

BOLT

1/2-13 X 1.25, HH, G8

2шт.
