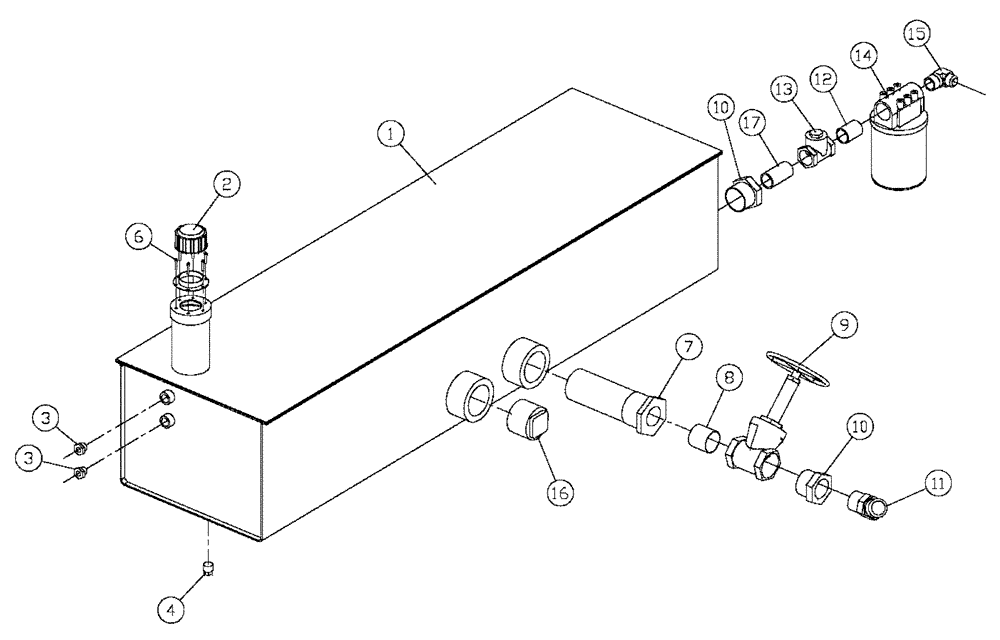

Запчасти Case IH 4330 (06-002) - HYDRAULIC TANK GROUP (07) - HYDRAULICS

1

BN8206176

TANK

Hydraulic 60 Gallon

1шт.

2

BN2390290

BREATHER

PBB-40-5-3S

1шт.

3

BN2290721

GLASS

Sight, 0719-6 1/2"

2шт.

4

BN1666257

PLUG

Pipe 1/2", Square Head

1шт.

6

BN1914047

SCREW,#10 - 32 x 1"

Mach Pan 10/32 X 1

6шт.

7

BN25877

FILTER STRAINER

In-Line 50 GPM 100 Mesh

1шт.

8

BN1420161

LUBE NIPPLE

LUBRICATOR 2 X 2 STD

1шт.

9

BN2201123

Valve, Gate 2" 125 LB

1шт.

10

BN2290276

BUSHING

2081-32-20 (Aero)

2шт.

11

BN2290189

FITTING

3103-20-20

1шт.

12

BN2294460

1-1/4 MNPT x 2"

1шт.

13

BN2395248

CHECK VALVE

Swing 1-1/4

1шт.

14

BN2396609

FILTER

50AT10C-15302

1шт.

14a

BN2296553

FILTER

Power Steering

1шт.

Service Parts For Ref. 14

1шт.

15

BN2290519

FITTING

2103-20-20

1шт.

16

BN1666268

Pipe 3" SQ HD

1шт.

17

BN2294464

1 1/4MNPT x 3"

1шт.
