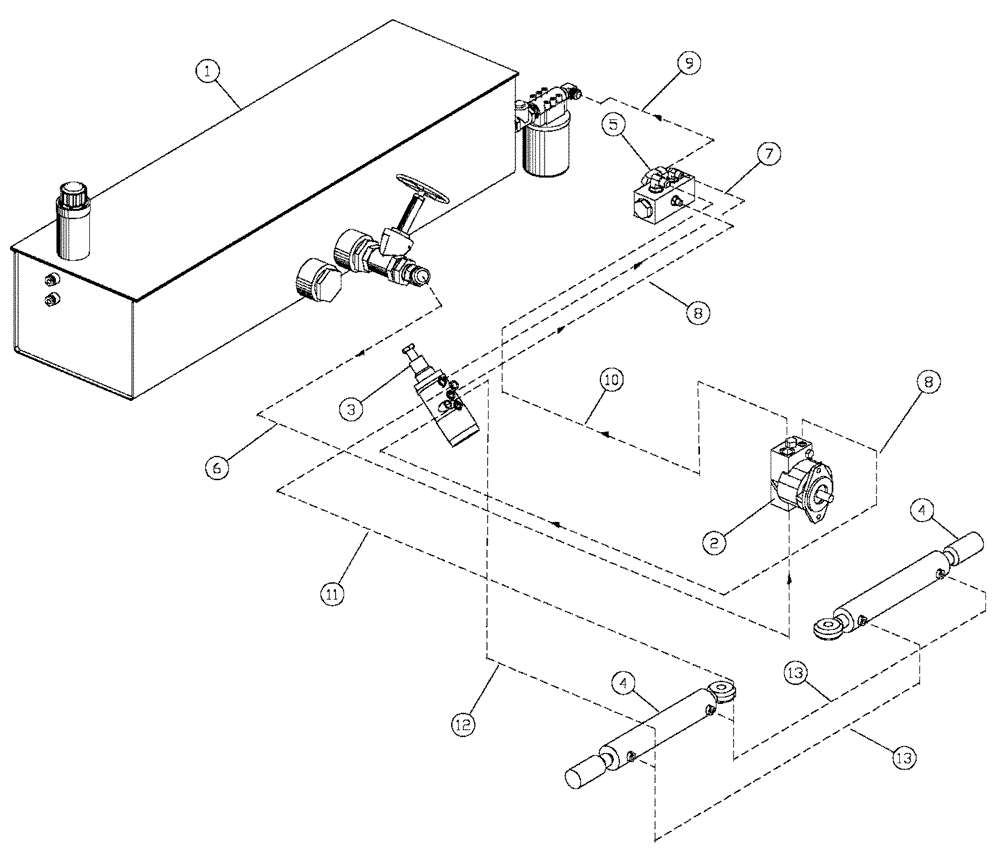

Запчасти Case IH 4330 (06-001) - HYDRAULIC ASSEMBLY (07) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

Hydraulic Tank Group

1шт.

See Fig. 06-002

1шт.

2

NSS

NOT SOLD SEPARAT

Hydraulic Pump Group

1шт.

See Fig. 06-004

1шт.

3

NSS

NOT SOLD SEPARAT

Steering Orbit Group

1шт.

See Fig. 06-005

1шт.

4

NSS

NOT SOLD SEPARAT

Hydraulic Steer Cylinder Group

1шт.

See Fig. 06-006

1шт.

5

NSS

NOT SOLD SEPARAT

Return Manifold Group

1шт.

See Fig. 06-008

1шт.

6

BN3600010-028.52

Assy 881-20-01

1шт.

7

BN3600004-052.96

Assy 451AR-10-01

1шт.

8

BN3600003-050.70

Assy 451AR-8-01

1шт.

9

BN3600010-034.52

Assy 881-20-01

1шт.

10

BN3600005-022.06

Assy 451AR-12-01

1шт.

11

BN3600003-094.70

Assy 451AR-08-01

1шт.

12

BN3600003-106.70

Assy 451 AR-8-01

1шт.

13

BN3600003-036.70

Assy 451 AR-8-01

2шт.
