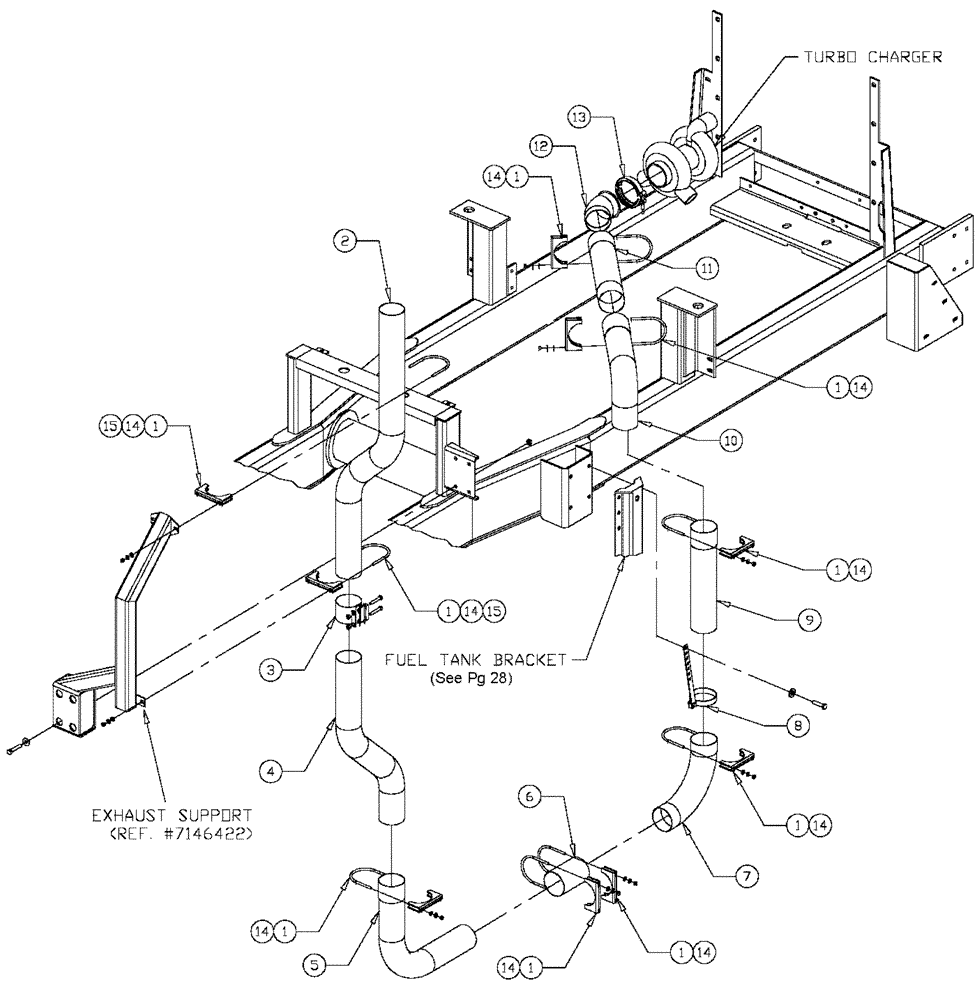

Запчасти Case IH 4330 (02-015) - AIR EXHAUST GROUP (01) - ENGINE

1

BN25927

CLAMP,104.8mm ID

4" Muffler

9шт.

2

BN2397677

EXHAUST SYSTEM PIPE

Exhaust Stack

1шт.

3

BN2400398

CLAMP

Exhaust Band 4"

1шт.

4

BN7146273

Exhaust Off-Set (4" X)

1шт.

5

BN2296559

ELBOW

9306 90 4" 18 X 18

1шт.

6

BN2393092

TUBE

AP14603 4"

1шт.

7

BN2296554

ELBOW

8678 90 4" AP

1шт.

8

BN2390850

HANGER

P20-6525 Donaldson

1шт.

9

BN2394987

EXHAUST SYSTEM PIPE

Stack 24711

1шт.

10

BN2390550

ELBOW

Exhaust 4" ID 4" O

1шт.

11

BN2393089

PLASTIC-RUBBER TUBE

Flexible 4"

1шт.

12

BN7146266

ELBOW

(4" X 45 Degree)

1шт.

13

BN2400396

CLAMP

Exhaust 4" 1W2431

1шт.

14

BN2303412

LOCK WASHER

3/8

18шт.

15

87529233

WASHER,0.41" ID x 0.81" OD x 0.09" Thk

3/8"

4шт.
