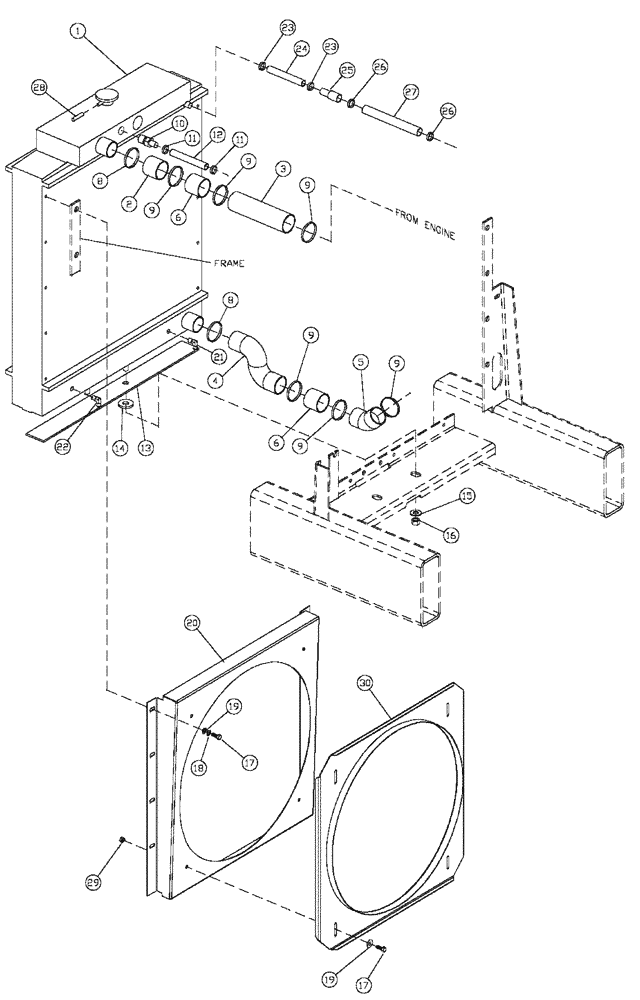

Запчасти Case IH 4330 (02-014) - RADIATOR GROUP (01) - ENGINE

1

NSS

NOT SOLD SEPARAT

Condenser/Radiator

1шт.

See Fig. 02-012

1шт.

2

BN2396823

HOSE

Gates 26517 2 X 2-1/4

1шт.

3

BN2393820

HOSE

Gates 26507 2" X 9.5

1шт.

4

BN2393865

HOSE,2.00" ID, 2.25" ID, SAE 20R4 CLASS D2

Gates 20844

1шт.

5

BN2393862

HOSE,2.00" mm ID, SAE 20R4 CLASS D2

Gates 21473

1шт.

6

BN2390189

ADAPTER

Hose Mender 2"

2шт.

8

BN51674

HOSE CLAMP

Adjustable #40

2шт.

9

BN2296306

CLAMP

Hose H32 SS

6шт.

10

BN2290646

FITTING

744440

1шт.

11

BN76094

HOSE CLAMP

SS #M4

2шт.

12

BN2390873

HOSE,0.31" ID

Fuel, 815-25R

3шт.

13

BN7146236

RADIATOR

Pad

1шт.

14

BN2297363

MOUNTING PLATE

Isolator 200106R1

2шт.

15

BN2303148

Flat 5/8

2шт.

16

87310322

NUT

Hex, 5/8-11, GB, DOR

2шт.

17

BN1913319F

HH 3/8-24 X 1 NF

12шт.

18

BN2303412

LOCK WASHER

3/8

12шт.

19

87529233

WASHER,0.41" ID x 0.81" OD x 0.09" Thk

3/8"

12шт.

20

BN7146183

SHROUD

Fan UNI

1шт.

21

BN2290512

FITTING

2503-16-16

1шт.

22

BN2290576

FITTING

3503-16-16

1шт.

23

BN2296336

CLAMP

Hose H8 SS

2шт.

24

BN2293891

HOSE,0.75" ID

Heater 28418

2шт.

25

BN2390194

ADAPTER

15-3684

1шт.

26

BN310446

HOSE CLAMP

#12, Stainless Steel

2шт.

27

BN2390875

HEATER HOSE,1.00" ID

Heater 28413

1шт.

28

BN2390990

3/8" Overflow (Rad)

1шт.

30

BN7146189

SUPPORT

Fan Ring/CAT

1шт.
