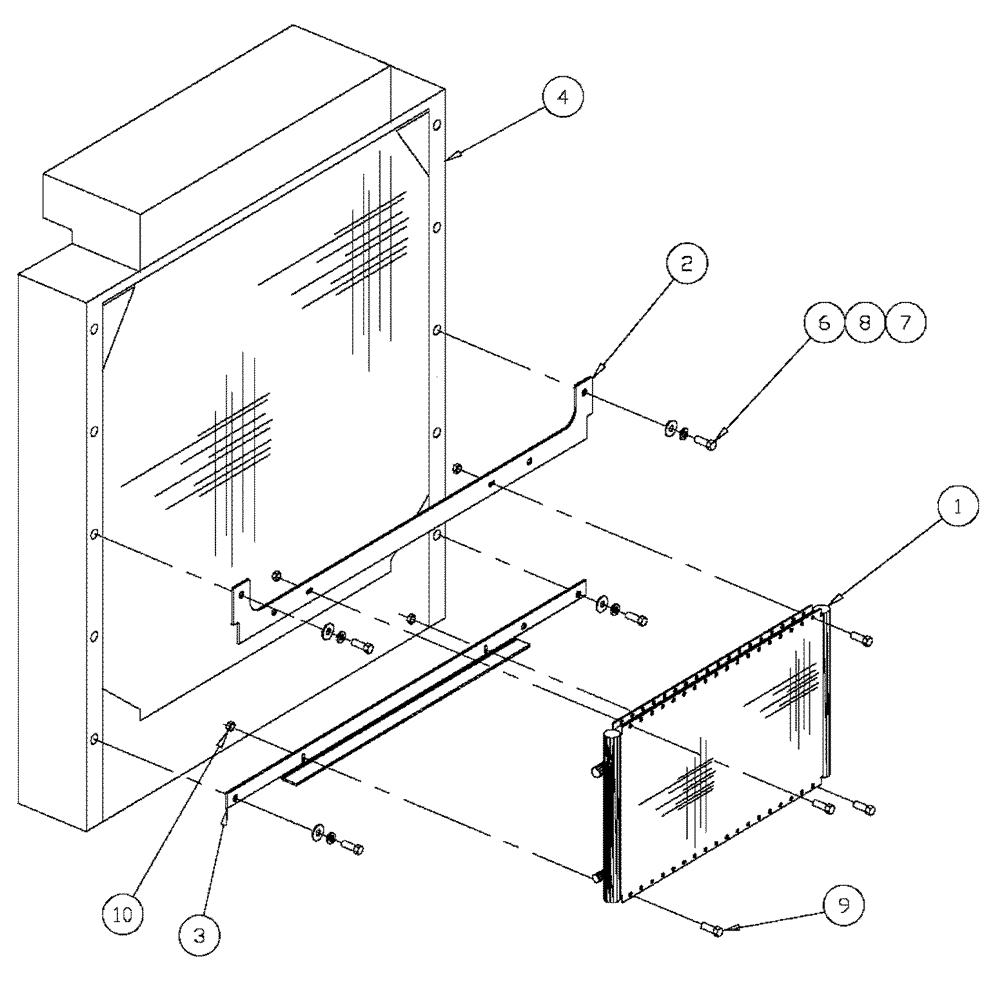

Запчасти Case IH 4330 (02-012) - CONDENSOR/RADIATOR GROUP (01) - ENGINE

1

BN2396320

CONDENSER

A/C

1шт.

2

BN7144025

FILLING STRIP

Condenser Upper Mount

1шт.

3

BN7144024

SHEET

Condenser Lower Mount

1шт.

4

BN2394853

RADIATOR

ICS MD W/CAC (4330)

1шт.

4

BN2394844

RADIATOR

ICS For Auto (4300)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

4a

BN2394844-001

GLASS

Sight

1шт.

Service Parts For Ref. 4

1шт.

4b

BN2394844-002

TANK

Bottom W/Cooler

1шт.

Service Parts For Ref. 4

1шт.

4c

BN2394844-003

GASKET

Tank

1шт.

Service Parts For Ref. 4

1шт.

5

BN7144026

CLAMP

A/C Condenser

3шт.

6

BN1913319C

BOLT

HH 3/8-16 X 1 NC

4шт.

7

87529233

WASHER,0.41" ID x 0.81" OD x 0.09" Thk

3/8"

4шт.

8

BN2303412

LOCK WASHER

3/8

4шт.

9

50364

BOLT Hex, 1/4"-20 x 1 1/2", G5

4шт.

10

BN1470402C

FLANGE NUT

NC 1/4-20 Flex Lock

4шт.
