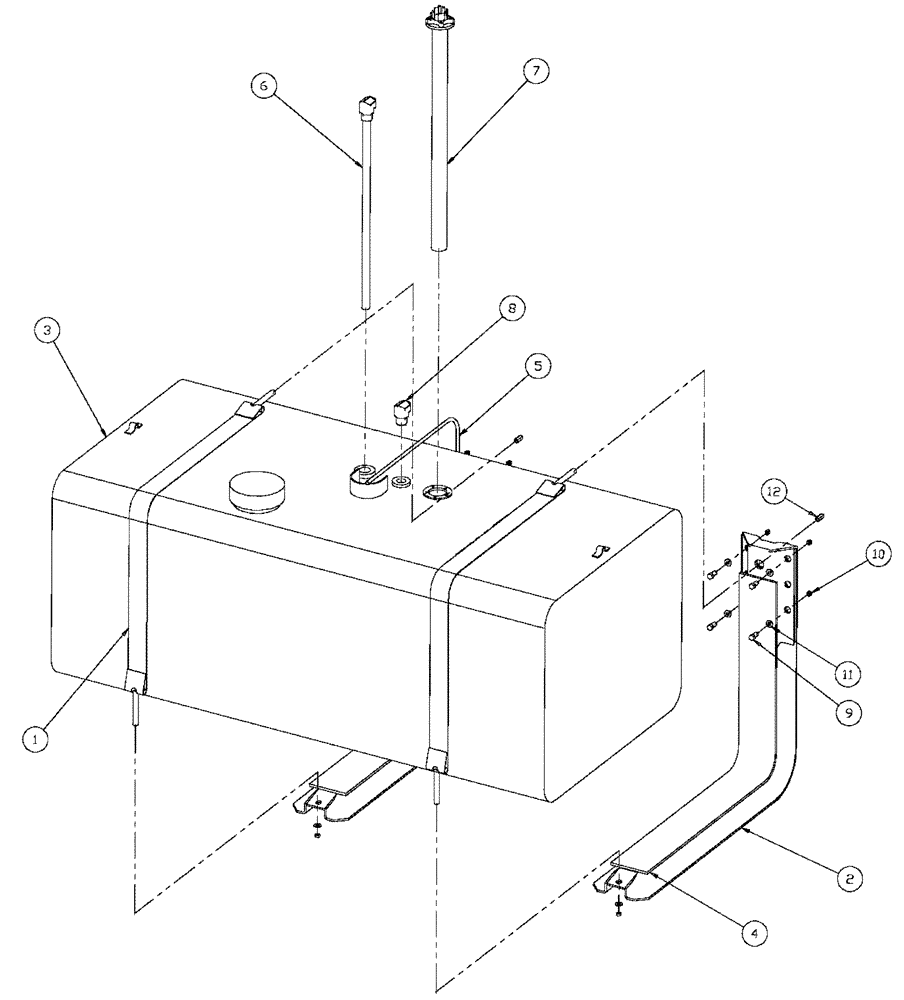

Запчасти Case IH 4330 (02-007) - FUEL TANK GROUP (01) - ENGINE

1

BN2395008-002

STRAP

Assembly, Fuel Tank

2шт.

2

87267439

BRACKET, SUPPORTING

Fuel Tank

2шт.

3

BN2395008

TANK

Fuel, 120 Gallon

1шт.

4

87484460

BELT,76.67 mm W x 6096.00 mm L

4 Ply, Cut To Fit

10шт.

5

BN2390873

HOSE,0.31" ID

Fuel, 815-25R

1шт.

6

BN7133010

TUBE

Fuel P/U Tube

1шт.

7

BN306489

ASSEMBLY

Fuel Tube TYP, 20"

1шт.

8

BN2290561

FITTING

2103-8-6

1шт.

9

50285

BOLT Hex, 1/2"-13 x 1 1/2", G5, Full Thd

8шт.

10

BN300407

FLANGE NUT

Flg, 1/2"-13, G8

8шт.

11

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

8шт.

12

BN2395003-005

NUT

Fuel Tank Strap

2шт.
