(05-001[03]) - FRONT TIRE GROUP - 48"/ 54" FIRESTONE RIB-48"

Запчасти Case IH 4330 (05-001[03]) - FRONT TIRE GROUP - 48"/ 54" FIRESTONE RIB-48" Tires

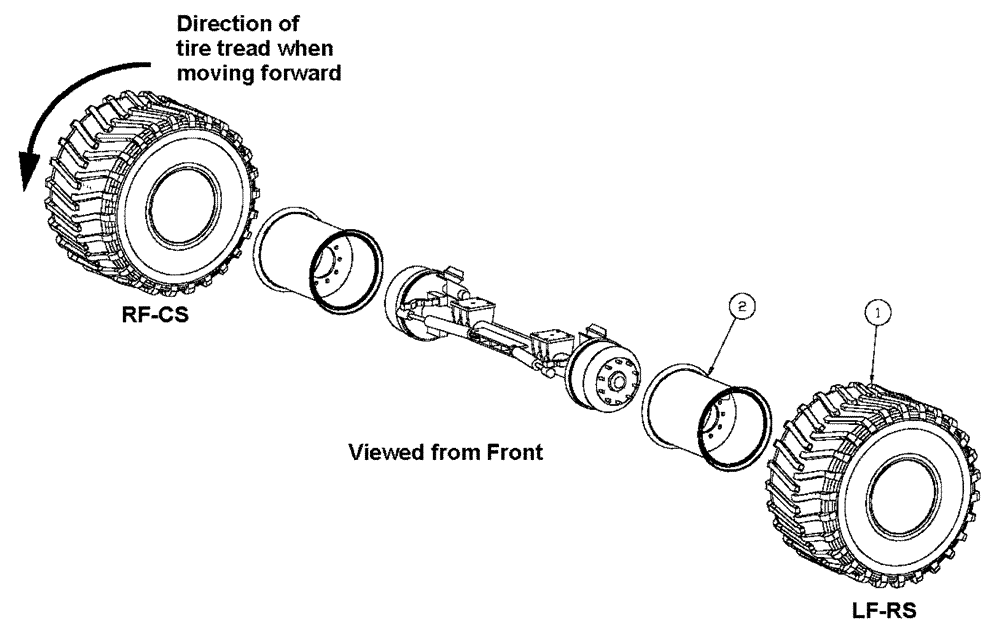

Схема запчастей Case IH 4330 - (05-001[03]) - FRONT TIRE GROUP - 48"/ 54" FIRESTONE RIB-48" Tires
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2393075

TYRE/TIRE

48 X 31-20 10P Ribbed

1шт.

2

BN7147021

Front Wheel

1шт.

2a

BN2297540

O-RING,489.71 mm ID

20" Wheel, McCord

1шт.

Service Parts For Ref. 2

1шт.

2b

BN67197

VALVE STEM

TR-600

1шт.

Service Parts For Ref. 2

1шт.

2c

BN2391220

LOCKING RING

20" Wheel, McCord #LR20JM

1шт.

Service Parts For Ref. 2

1шт.

2d

BN2403676

FLANGE

Bead Seat, 20" Wheel, McCord F8020JM

1шт.

Service Parts For Ref. 2

1шт.

Выбрано товаров: 10
