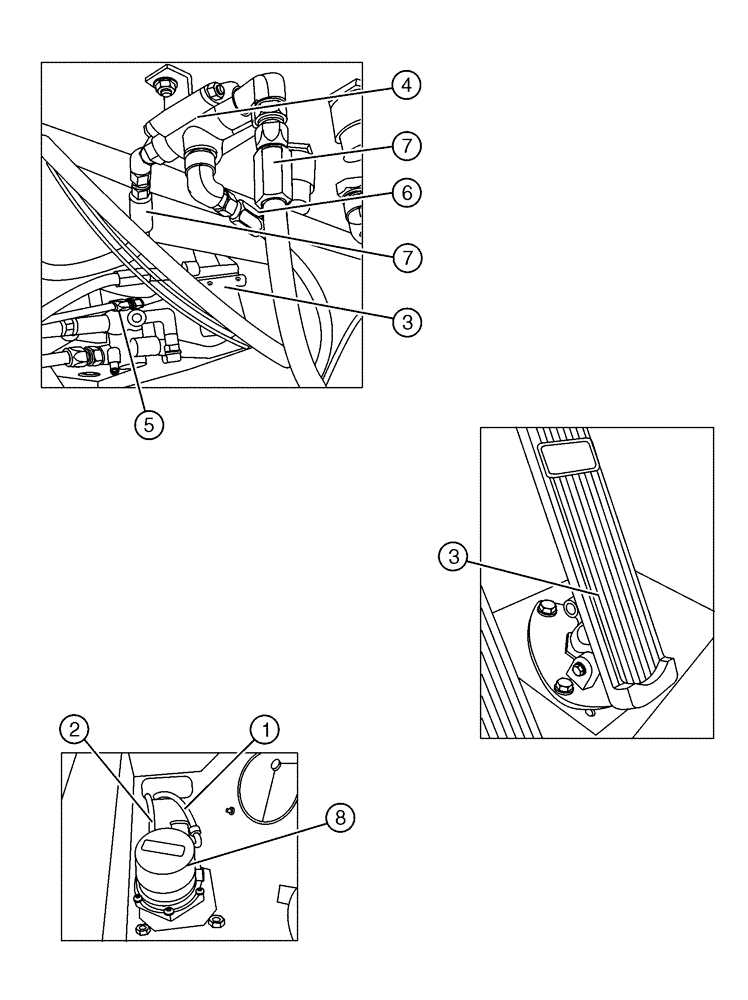

Запчасти Case IH 4330 (07-014) - PNEUMATIC THROTTLE GROUP Pneumatics

1

BN2292089

AIR INTAKE TUBE

Synflex, 1/4" Bulk

1шт.

2

BN2393051

TUBE,1/4" X 500' BULK, SAE J844, RED

Air, Synflex 1/4" Red, Bulk

1шт.

3

BN305695

THROTTLE

Air Throttle Pedal

1шт.

4

BN305696

HYDRAULIC VALVE

Shuttle Valve

1шт.

4a

BN305724

Kit, Pneumatic

1шт.

5

BN310205

HOSE

#4 JIC FEM-69" 4 Wheel

1шт.

From Air Divider To Throttle Pedal

1шт.

6

BN310206

AIR HOSE

#4 JIC FEM-74"

1шт.

Shuttle Valve To Air Cylinder

1шт.

7

BN310207

AIR HOSE,20.00"

#4 JIC Female

2шт.

Foot Throttle To Shuttle Valve

1шт.

8

NSS

NOT SOLD SEPARAT

Hand Throttle Valve Assembly

1шт.

See Fig. 07-013

1шт.

8a

NSS

NOT SOLD SEPARAT

R/H Cab Floor Assembly (Resume)

1шт.

Not Shown

1шт.

See Fig. 01-010

1шт.
