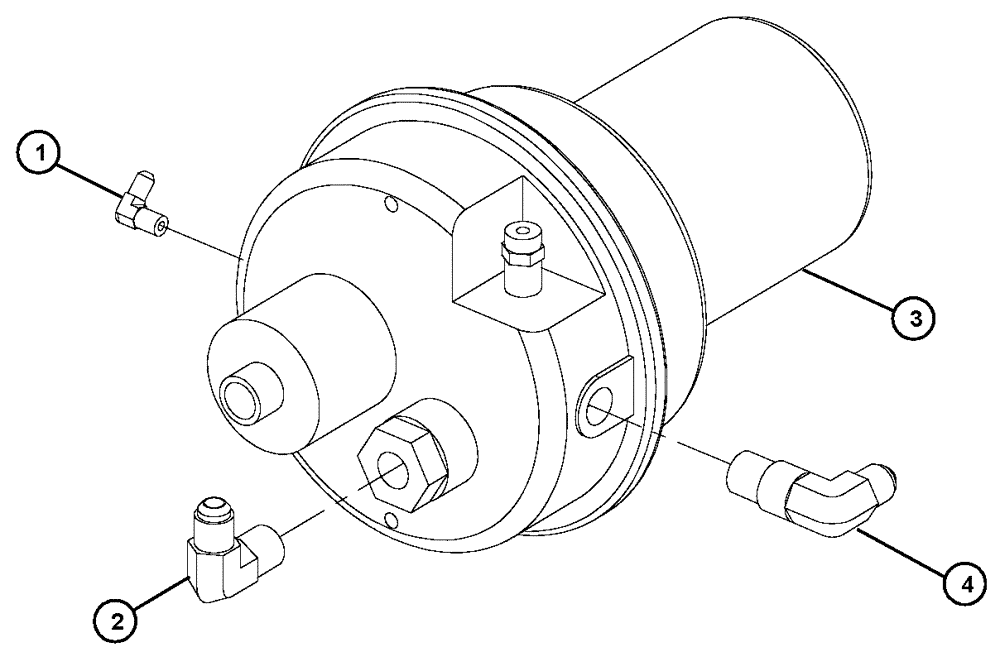

Запчасти Case IH 4330 (07-012) - AIR DRYER GROUP Pneumatics

1

BN2290148

ELBOW

4MJ - 2MP 90º

1шт.

2

BN2290508

ELBOW

2103-8-8

1шт.

3

BN2296407

FILTER ASSY

Air Dryer (Spin On)

1шт.

3a

BN2296407-001

FILTER

Coalescing Kit

1шт.

3b

BN2296407-002

FILTER

Filter, (Desiccant & Coalescing) (Spin On)

1шт.

Service Parts For Ref. 3

1шт.

3c

BN2296407-003

REPAIR KIT

(Purge, Turbo, Saver, Check Valve)

1шт.

Service Parts For Ref. 3

1шт.

3d

BN2296407-004

Air Dryer

1шт.

Service Parts For Ref. 3

1шт.

3e

BN2296407-005

BRACKET

1шт.

Service Parts For Ref. 3

1шт.

3f

BN2296407-006

CLAMP

T-Bolt

1шт.

Service Parts For Ref. 3

1шт.

4

BN2390690

FITTING

5603-8-10

1шт.

5

BN2392394

WASHER

3/8 SS

4шт.

Not Shown

1шт.

6

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

Not Shown

1шт.

7

BN2392391

WASHER

Flat 3/8 SS

4шт.

Not Shown

1шт.
