(07-001) - PNEUMATIC ASSEMBLY

Запчасти Case IH 4330 (07-001) - PNEUMATIC ASSEMBLY Pneumatics

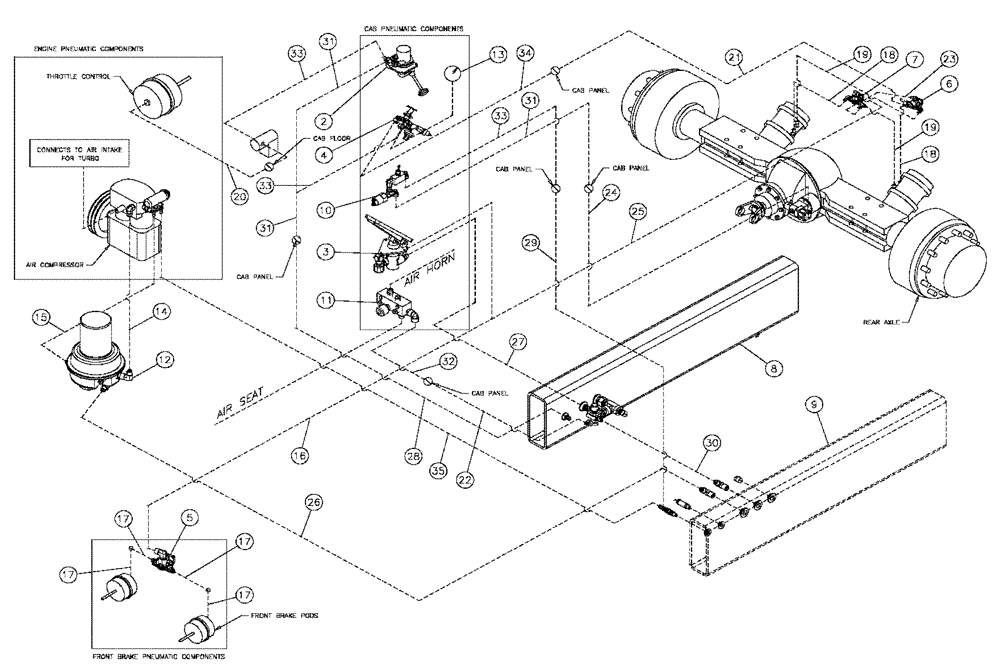

Схема запчастей Case IH 4330 - (07-001) - PNEUMATIC ASSEMBLY Pneumatics
28
8
7
30
17
34
27
2
11
31
24
21
9
33
29
16
4
6
20
13
23
19
32
3
14
17
35
19
31
22
31
17
12
33
33
15
25
5
26
18
17
18
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

BN7135009-A

Hand Throttle Valve Assembly

1шт.

3

BN7148131

BRAKE VALVE

Pedal Assembly

1шт.

4

BN7148013-A

BRAKE VALVE

Parking Assembly

1шт.

5

BN7148001-A

HYDRAULIC VALVE

Quick Release Assembly-Front Brake

1шт.

6

BN7138035

HYDRAULIC VALVE

Quick Release Assembly-Park Brake

1шт.

7

BN7138034

HYDRAULIC VALVE

Quick Release Assembly-Rear Brake

1шт.

8

BN7148104

Secondary Air Tank

1шт.

9

BN7148103

Primary Air Tank 4W

1шт.

10

BN7148162

Assembly, 2-Speed Shift CIRC

1шт.

11

BN7148114-B

Assembly, Air

1шт.

12

BN7148023

RECEIVER-DRYER

Assembly, Air (Spin-On)

1шт.

13

BN2290728

GAUGE

Air Pressure (10-150) 8

1шт.

14

BN3600021-114.25

Assembly 919-10-01

1шт.

15

BN3600001-114.38

Assembly 451 AR-4-01

1шт.

16

BN3600003-066.70

Assembly 451 AR-8-01

1шт.

17

BN3600002-022.54

Assembly 451 AR-6-01

1шт.

18

BN3600002-036.54

Assembly 451 AR-6-01

1шт.

19

BN3600002-034.54

Assembly 451 AR-6-01

1шт.

21

BN3600001-162.38

Assembly 451 AR-4-01

1шт.

22

BN3600002-032.54

Assembly 451 AR-6-01

1шт.

23

BN3600002-018.54

Assembly 451 AR-6-01

1шт.

24

BN68493

HOSE

1/4" x 170"

1шт.

25

BN3600003-180.70

Assembly 451 AR-8-01

1шт.

26

BN3600003-076.70

Assembly 451 AR-8-01

1шт.

27

BN3600003-056.70

Assembly 451 AR-8-01

1шт.

28

BN3600001-034.38

Assembly 451 AR-4-01

1шт.

29

BN3600001-056.38

Assembly 451 AR-4-01

1шт.

30

BN3600003-044.70

Assembly 451 AR-8-01

1шт.

31

NSS

NOT SOLD SEPARAT

Tubing, SYN 1/4 Black

1шт.

See Fig. 07-014

1шт.

32

BN2292088

AIR INTAKE TUBE

3/8" Black

1шт.

33

NSS

NOT SOLD SEPARAT

Tubing, SYN 1/4 Red

1шт.

See Fig. 07-014

1шт.

34

BN2393053

TUBE,1/4" X 100' BULK, SAE J844, GREEN

Air, Synflex 1/4" Green

1шт.

35

BN3600001-112.38

Assembly 451 AR-4-01

1шт.

36

BN305697

CYLINDER

Air Throttle Cylinder

1шт.

37

NSS

NOT SOLD SEPARAT

Shuttle Valve

1шт.

See Fig. 07-014

1шт.

38

NSS

NOT SOLD SEPARAT

Air Throttle Pedal

1шт.

See Fig. 07-014

1шт.

39

NSS

NOT SOLD SEPARAT

#4 JIC FEM-20"

2шт.

See Fig. 07-014

1шт.

40

NSS

NOT SOLD SEPARAT

#4 JIC FEM-69" 4 Wheel

1шт.

See Fig. 07-014

1шт.

41

NSS

NOT SOLD SEPARAT

#4 JIC FEM-74"

1шт.

See Fig. 07-014

1шт.
