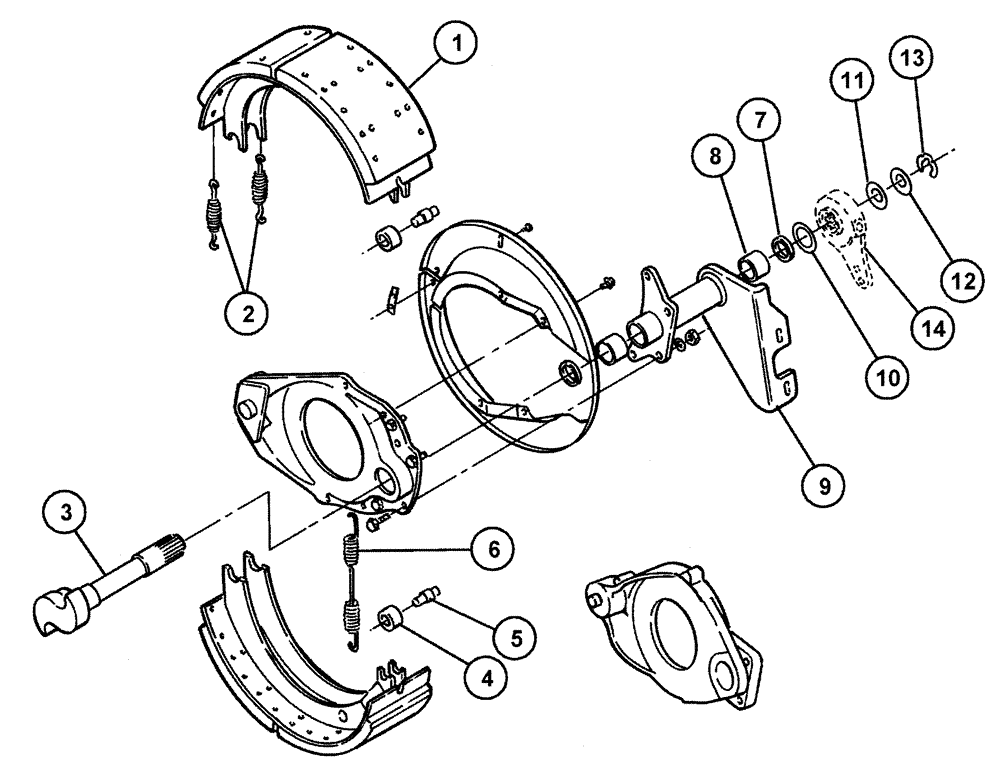

Запчасти Case IH 4330 (04-004) - FRONT AXLE BRAKE Frame & Suspension

1

BN2296172-015

SET OF BRAKE LININGS

1шт.

2

BN2296172-029

SPRING

Retaining

1шт.

3

BN2296172-030

CAMSHAFT

LH

1шт.

3a

BN2296172-031

CAMSHAFT

RH

1шт.

Same Part Of Camshaft, Left, P/N. BN2296172-030 But Opposite Side

1шт.

4

BN2296172-032

ROLLER

1шт.

5

BN2296172-033

PIN

1шт.

6

BN2296172-034

SPRING

Shoe Release, Red

1шт.

7

BN2296172-035

SEAL

Lip

1шт.

8

BN2296172-036

BUSHING

Camshaft

1шт.

9

BN2296172-023

HOUSING

S-Cam W/ Bush, RH

1шт.

9a

BN2296172-022

HOUSING

S-Cam W/ Bush, LH

1шт.

Same Part Of Housing S-Cam W/ Bush, RH, P/N. BN2296172-023 But Opposite Side

1шт.

10

BN2296172-037

WASHER

Inner Slack Adjuster

1шт.

11

BN2296172-038

WASHER

Camshaft Shim

1шт.

12

BN2296172-039

WASHER

Camshaft Shim

1шт.

13

BN2296172-040

SNAP RING

Camshaft

1шт.

14

BN2296172-021

BRACKET

Slack Adjuster

1шт.
