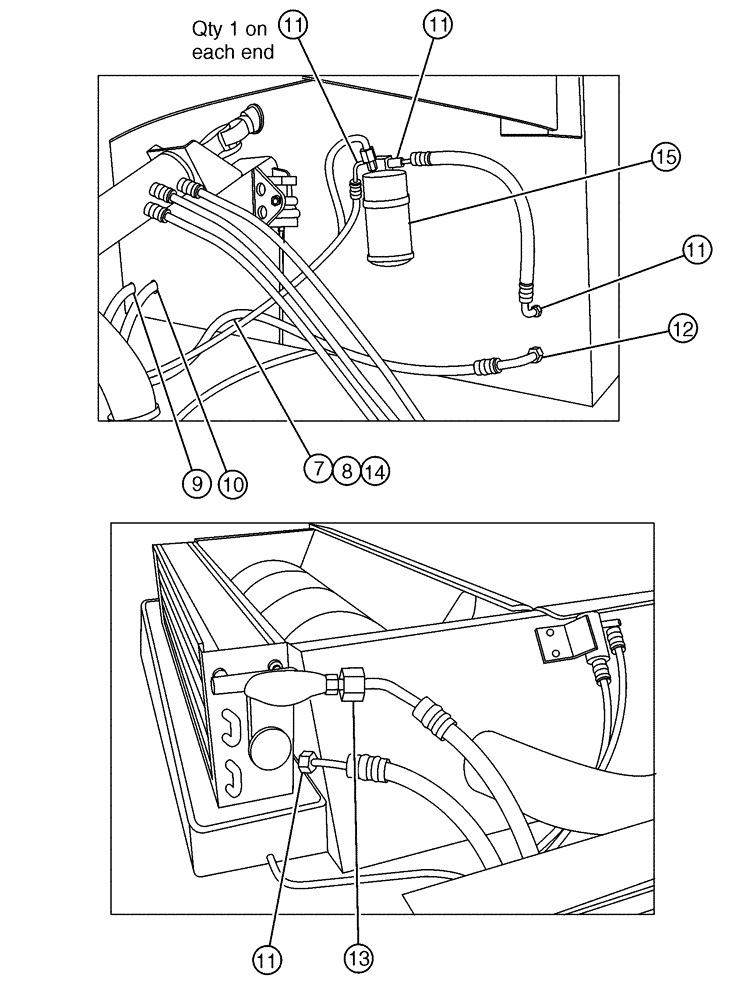

Запчасти Case IH 4330 (01-006[01]) - HEAT A/C GROUP (CAB) (10) - CAB

1

BN2296337

CLAMP

H1 0SS

2шт.

2

BN2391926

SWITCH

Air Toggle On-Off

1шт.

3

BN2395246

HYDRAULIC VALVE

Heater Control Air

1шт.

4

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

5

BN2399405

90 ELBOW

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

6

BN2399408

UNION TEE

Tube UTC140

1шт.

7

BN1470808

NUT

#10-32 Machine Zinc

2шт.

8

BN1914070

SCREW,#10 - 32 x 3/4"

#10-32 X 3/4 Machine

2шт.

9

BN2290753

GROMMET

2870 (7/8" Hole)

1шт.

10

BN2290763

GROMMET

2872 (1" Hole)

1шт.

11

BN2294852

O-RING

#6 Neoprene (A/C)

5шт.

12

BN2294854

O-RING

#8 Neoprene (A/C)

1шт.

13

BN2294855

O-RING

#10 Neoprene (A/C)

2шт.

14

BN2399309

CLAMP

2028

2шт.

15

BN304325

RECEIVER-DRYER

A/C Assembly

1шт.

15a

BN1470404C

LOCK NUT

NC 3/8-16 Flex Lock

2шт.

Parts Of A/C Dryer Assembly, P/N BN304325

1шт.

Not Shown

1шт.

15b

BN1913634C

3/8-16 X 1, HH, G8

1шт.

Parts Of A/C Dryer Assembly, P/N BN304325

1шт.

Not Shown

1шт.

15c

BN50368

BOLT

1шт.

Parts Of A/C Dryer Assembly, P/N BN304325

1шт.

Not Shown

1шт.

15d

BN67726

CLAMP

receiver dryer

1шт.

Parts Of A/C Dryer Assembly, P/N BN304325

1шт.

15e

BN67797

RECEIVER-DRYER

1шт.

Parts Of A/C Dryer Assembly, P/N BN304325

1шт.

Not Shown

1шт.

16

BN2395298

HYDRAULIC VALVE

A/C Expansion Valve, Not Shown

1шт.
