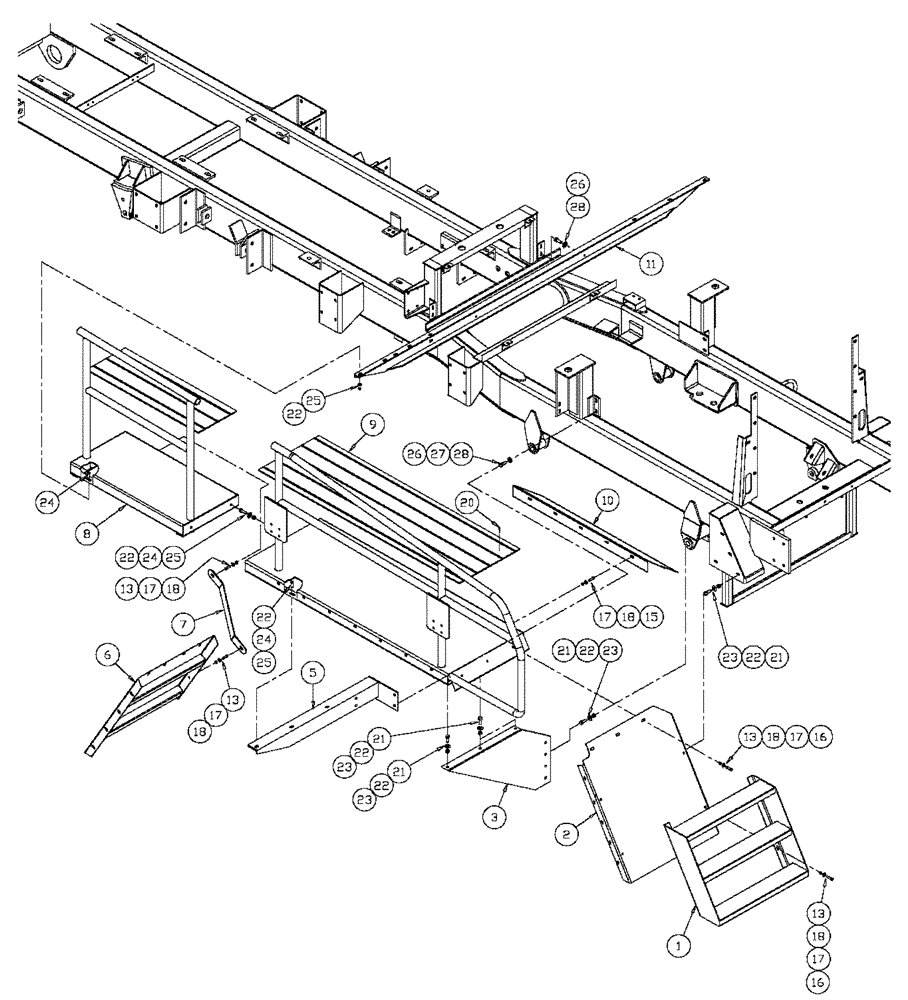

Запчасти Case IH 4300 (04-011) - WALKWAY GROUP - CURB SIDE Frame & Suspension

1

BN7141968

STEP

Front (95)

1шт.

2

BN7141970

SPLASH SHIELD

Front Pl C/S

1шт.

3

BN303562

SUPPORT

Walkway, CS

1шт.

4

BN303728

WALKWAY

CATWALK Front Walkway

1шт.

5

BN7141942

MOUNTING PLATE

Walkway C

1шт.

6

BN7141904

SPLASH SHIELD

Rear Plat

1шт.

7

BN303682

GUARD

Splash Support

1шт.

8

BN303727

WALKWAY

CATWALK Rear Walkway

1шт.

9

BN2401312

MAT

P-80 Grs/Psa

1шт.

10

BN7141787

SPLASH SHIELD

Apron, RH

1шт.

11

BN7141994

MOUNTING PLATE

Walkway

1шт.

12

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

13

BN50254

BOLT,3/8"-16 x 1", Stainless

14шт.

14

BN1913335C

BOLT

HH 3/8-16 X 1-1/2

2шт.

15

BN1913319C

BOLT

HH 3/8-16 X 1 NC

31шт.

16

BN2392391

WASHER

Flat 3/8 SS

14шт.

17

87529233

WASHER,0.41" ID x 0.81" OD x 0.09" Thk

3/8"

67шт.

18

BN1470404C

LOCK NUT

NC 3/8-16 Flex Lock

45шт.

19

BN1470402C

FLANGE NUT

1/4-20, FLN, G8

4шт.

20

BN2394894

RIVET

Pop 97525A032 3/16X

4шт.

21

BN306620

BOLT

1/2-13 X 1.25, HH, G8

14шт.

22

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

12шт.

23

BN300407

FLANGE NUT

Flg, 1/2"-13, G8

14шт.

24

50285

BOLT Hex, 1/2"-13 x 1 1/2", G5, Full Thd

11шт.

25

BN55362

LOCK NUT

1/2-13, NLN, G5

11шт.

26

86637952

WASHER,0.47" ID x 0.92" OD x 0.07" Thk

0.469 x 0.922 x 0.065, Hardened

20шт.

27

BN305066

NUT,7/16" - 14, Gr 8

7/16-14, FLN, G8

4шт.

28

BN50376

7/16-14 X 1.5, HH, G8

8шт.
