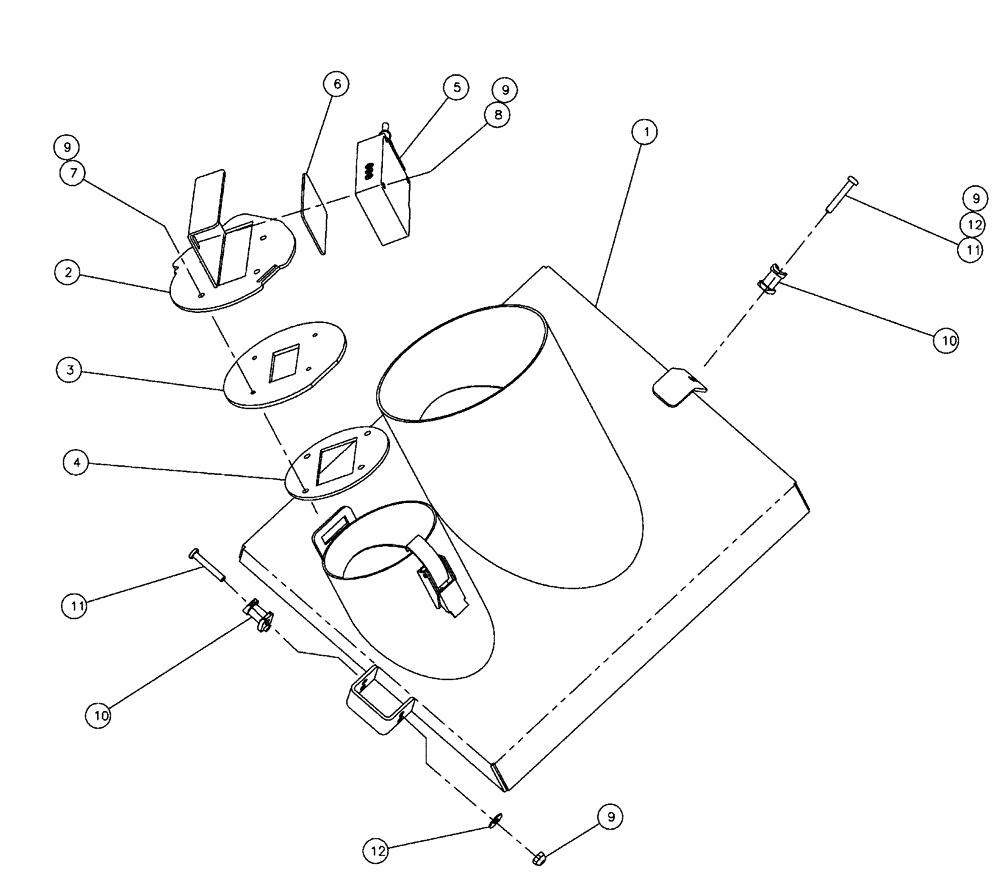

Запчасти Case IH FLX810 (02-054) - COVER ASSEMBLY, RH BIN Bin Group

1

86986413

COVER

RH Bin

1шт.

2

86986111

CAP

Cap, RH Mount

1шт.

3

86986115

RUBBER SLEEVE

Rubber

1шт.

4

86986114

PLATE

Retainer

1шт.

5

BN322583

SENSOR

Assembly

1шт.

See Fig. 13-014

1шт.

6

BN321167

GASKET

Sensor Cushion

1шт.

7

BN2407985

SCREW,Hex, #10 - 24 x 3/4"

10-24 x 3/4", HH, SST

4шт.

8

BN316803

SCREW,#10 - 24 x 1 1/2", SST

Mach-#10-24 X 1.5 SS

2шт.

9

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

8шт.

10

BN309337

LATCH

Flexible Draw

2шт.

11

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

2шт.

12

BN310265

WASHER

10, Stainless Steel

2шт.
