Запчасти Case IH FLX810 (02-051) - LADDER GROUP, DOUBLE & TRIPLE BIN Bin Group

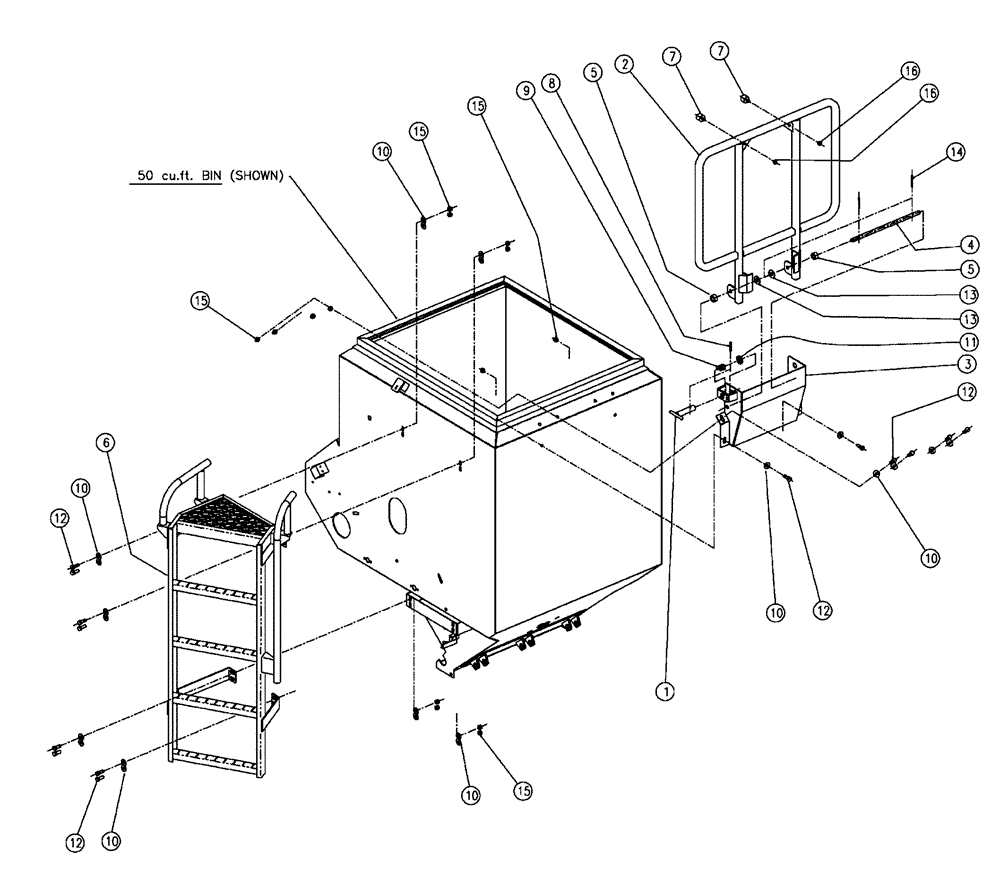

Схема запчастей Case IH FLX810 - (02-051) - LADDER GROUP, DOUBLE & TRIPLE BIN Bin Group
3
15
2
7
14
9
12
1
10
5
15
7
10
16
15
12
8
10
12
10
13
4
12
16
5
15
13
10
10
6
11

Артикул

Название

Примечание

Количество

1

BN05412

PIN

Locking, MW

1шт.

2

BN308099

HANDRAIL

Co-Ap Bin

1шт.

3

BN308100

SUPPORT

Co-Ap Handrail

1шт.

4

BN308104

PIN

Handrail Pivot

1шт.

5

BN308105

BUSHING

Co-Ap Handrail

2шт.

6

87267261

LADDER

Co-Ap Bin-LH

1шт.

7

BN310002

BUMPER

1.00 OD x 1.0H

2шт.

8

BN31444

PIN, ROLL

1/4 X 1 1/2

1шт.

9

BN31937

SPRING

Compressor, .905 X .765 2

1шт.

10

BN50146

WASHER,3/8", Stainless

22шт.

11

BN50178

WASHER

1.25 OD X .75 ID X 10 GA

1шт.

12

BN50254

BOLT,3/8"-16 x 1", Stainless

14шт.

13

BN50595

WASHER,1/2", Stainless

2шт.

14

BN50602

COTTER PIN

1/8" X 1.25

2шт.

15

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

14шт.

16

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.

Выбрано товаров: 16
