Запчасти Case IH FLX810 (02-043) - 6" AUGER PNEUMATIC GROUP, DOUBLE & TRIPLE BIN, 37 & 50 CU. FT Bin Group

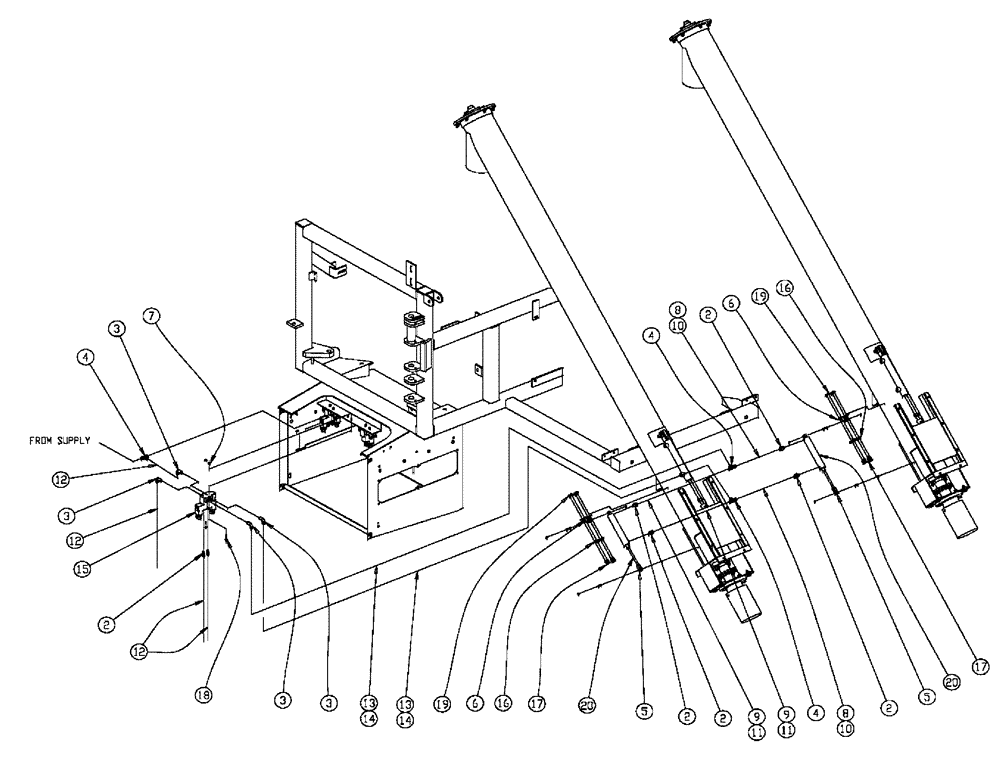

Схема запчастей Case IH FLX810 - (02-043) - 6" AUGER PNEUMATIC GROUP, DOUBLE & TRIPLE BIN, 37 & 50 CU. FT Bin Group
14
3
11
18
9
10
16
14
17
13
13
2
4
3
9
3
12
12
20
12
4
6
15
2
3
11
7
8
17
20
8
19
2
6
19
2
16
5
10
4
5
2

Артикул

Название

Примечание

Количество

2

BN2399402

ADAPTER

1/8" MPT x 1/4" OD Tube, Push Lock Fitting

6шт.

3

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

4шт.

4

BN2399408

UNION TEE

Tube UTC140

3шт.

5

BN300254

KIT

Clevis, .31 Rod

2шт.

6

BN300255

REPAIR KIT

Pivot Bracket, 1.06 Cylinder

2шт.

7

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

2шт.

8

BN303244

AIR HOSE,15.00"

1/4", Black

2шт.

9

BN303245

AIR HOSE,7.00"

1/4", Black

2шт.

10

BN303248

SLEEVE

Loom, Plastic, 1/4" X 15"

2шт.

11

BN303249

SLEEVE

Loom, Plastic, 1/4" X 7"

2шт.

12

BN303257

AIR HOSE,33.00"

1/4", Black

4шт.

13

BN303336

AIR HOSE,88.00"

1/4", Black

2шт.

14

BN303337

LOOM

Plastic-1/4" X 88"

2шт.

15

BN304833

SOLENOID VALVE

Air, 6" & 8" Auger

1шт.

See Fig. 01-008

1шт.

15a

84269276

SEAL

Pressure, Pilot Valve

1шт.

16

BN50138

WASHER,1/4", SS

8шт.

17

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

8шт.

18

BN313804

SCREW,#10 - 24 x 1 1/2", SST

10-24 X 1.50, BSH, SS

2шт.

19

BN55359

LOCK NUT,1/4"-20, SS

8шт.

20

BN68384

CYLINDER,Double Acting, 7.87mm Rod, 127mm Stroke

1.06 X 4, Air

2шт.

Выбрано товаров: 21
