Запчасти Case IH FLX810 (02-040) - 6” AUGER TUBE GROUP, DOUBLE & TRIPLE BIN, 37 & 50 CU. FT. Bin Group

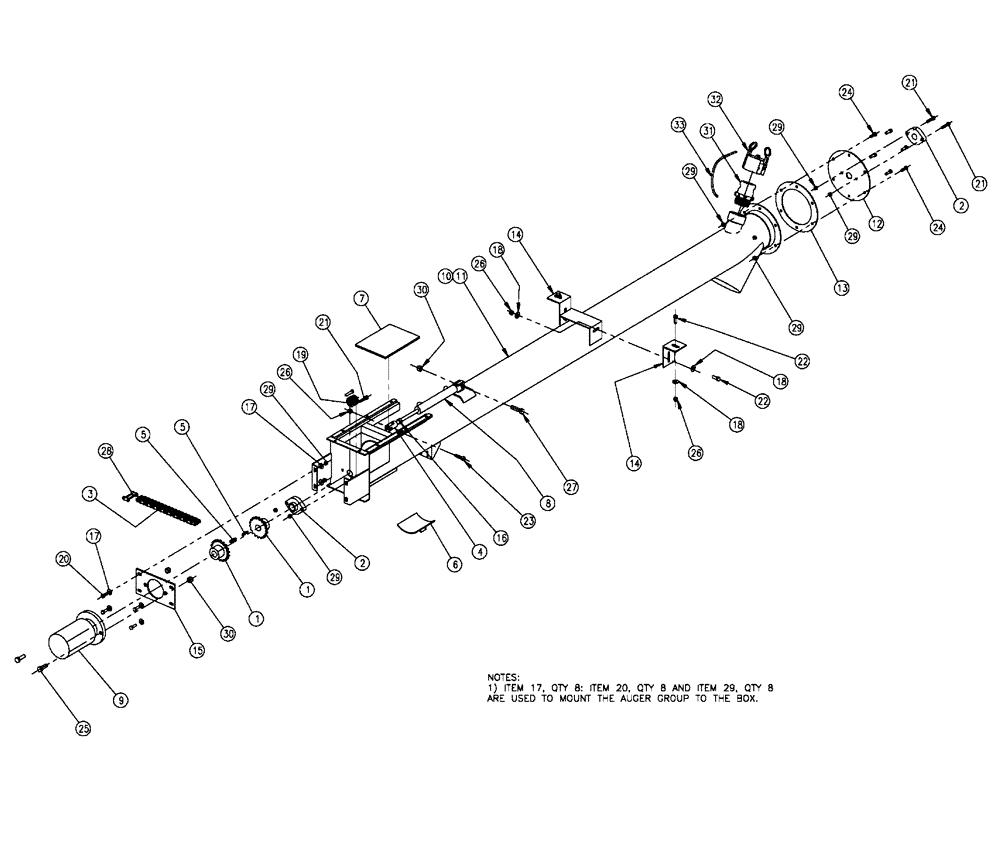

Схема запчастей Case IH FLX810 - (02-040) - 6” AUGER TUBE GROUP, DOUBLE & TRIPLE BIN, 37 & 50 CU. FT. Bin Group
16
13
24
21
14
25
1
10
7
23
19
27
26
5
8
3
4
2
18
29
29
17
6
18
20
32
18
9
24
30
22
11
31
9
21
26
21
22
17
29
30
33
15
14
29
26
5
12
28
29
1
2

Артикул

Название

Примечание

Количество

1

BN10181

SPROCKET

50B18 With 1" Bore

2шт.

2

BN10500

FLANGED BEARING,25.4mm ID

Flange 1"

2шт.

3

BN17701

#50-2 Double RLR x 18 LN

1шт.

4

BN21982

CLEVIS,1/2" - 20

1" Diameter CRS x 1.87

1шт.

5

BN23880

KEY

1/4" X 1/4" X 1.25

2шт.

6

BN304623

DOOR

Cleanout Door, 6 Inch

1шт.

7

BN304625

PLATE

Gate, 6 Inch

1шт.

8

87266443

HYDRAULIC CYLINDER,12.7mm Rod, 152.4mm Stroke

1 x 6 x 0.5, Complete

1шт.

See Fig. 07-001

1шт.

9

BN306232

MOTOR

Hydraulic, 6" Auger

1шт.

See Fig. 07-020

1шт.

10

BN321067

AUGER

6" Tube

1шт.

11

87528879

AUGER

6", Shaft With Flighting

1шт.

12

BN308063

PLATE

6 Inch Auger, Upper

1шт.

13

BN308067

GASKET

6 Inch Auger, Upper

1шт.

14

BN309460

ANGLE

Bracket, 6" Auger

2шт.

15

BN35935

PLATE

MTR Mount, Auxiliary Auger

1шт.

16

BN50075

NUT

1/2-20 Hex SS

1шт.

17

BN50142

WASHER,5/16", Stainless Steel

16шт.

18

BN50146

WASHER,3/8", Stainless

6шт.

19

BN50168

WASHER,25.4mm ID x 38.1mm OD x 3.57mm Thk

1" ID x 1.5 OD x 10 GA

3шт.

21

BN50237

BOLT,5/16"-18 X 1-1/2", Stainless Steel

4шт.

22

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

23

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

1шт.

24

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

6шт.

25

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

2шт.

26

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

5шт.

27

BN50786

BOLT,1/2"-13 x 2", Stainless

1шт.

28

BN53159

LINK

CONN. 50-2

1шт.

29

BN55361

NUT,5/16"-18, Nylon, Stainless

22шт.

30

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

3шт.

31

BN2396382

COUPLING,2" Male Adapter-2" Male Thread

F 2" Poly

1шт.

32

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

33

BN321087

STRAP

Lanyard, 11" Polyurethane

1шт.

Выбрано товаров: 34
