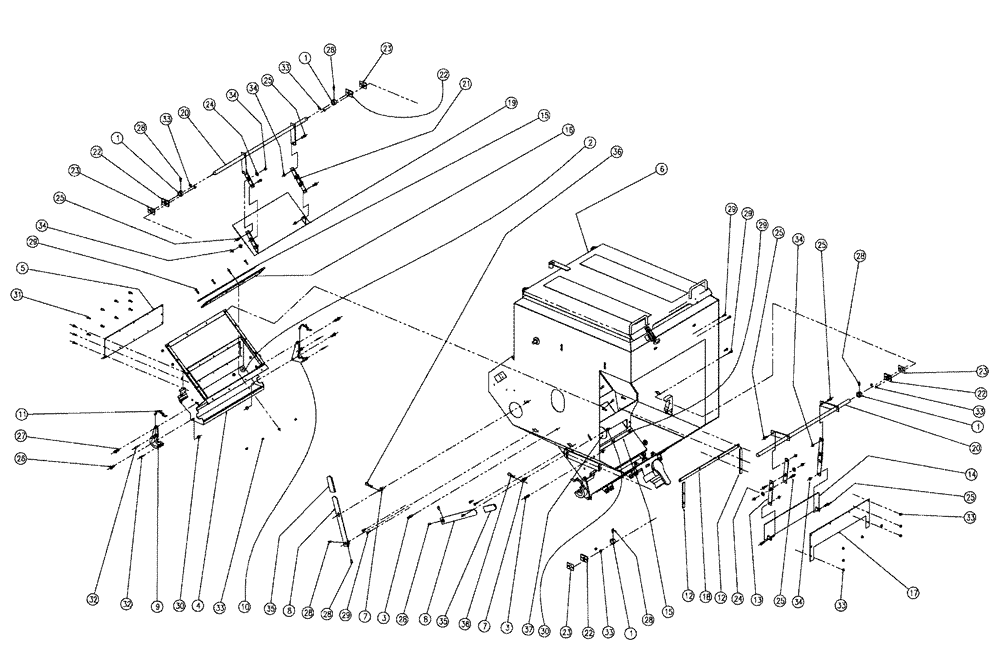

Запчасти Case IH FLX810 (02-037) - BIN GROUP, TRIPLE BIN, LH, 50 CU. FT Bin Group

1

BN10054

COLLAR

1 1/4" od x 3/4" id HRST

4шт.

2

BN23452

WASHER,13/32" x 1.25 " OD x 12 GA, SS

2шт.

3

BN307047

PIN

3/8 With Shoulder

2шт.

4

BN309310

SUPPORT

Supplemental, LH

1шт.

5

BN309317

PANEL

Supp Access

1шт.

6

NS

NOT SERVICED

Bin Group, LH, (50)

1шт.

See Fig. 02-038

1шт.

7

BN310283

PIN

3/8 With .75 Shoulder

2шт.

8

BN35411

HANDLE

Gate, Conveyor

2шт.

9

BN35705

BEARING HOUSING

Valmar - Bearing HSG, LH

1шт.

10

BN35706

BEARING HOUSING

Valmar - Bearing HSG, RH

1шт.

11

BN35707

BEARING CAP

Valmar - Latch, Stainless Steel

2шт.

12

BN35785

SLIDE

VERT., Co-Ap Gate

2шт.

13

BN35786

LINK

Co-Ap Bin Gate

4шт.

14

BN35787

GATE ASSY

Co-Ap Bin

1шт.

15

BN35788

SEAL

Co-Ap Gates

2шт.

16

BN35789

SEAL

Co-Ap Gates

1шт.

17

BN35790

COVER

Co-Ap Bin Gate

1шт.

18

BN35791

SLIDE

Horizontal, Co-Ap Gate

1шт.

19

BN35793

GATE ASSY

Supply Bin

1шт.

20

BN35796

SHAFT

Supplemental Gate

2шт.

21

BN35799

LINKAGE

Supply Gate

4шт.

22

BN35800

BUSHING

Shaft, Supplemental Gate

4шт.

23

BN35801

SEAL

Shaft, Supplemental Gate

4шт.

24

BN50142

WASHER,5/16", Stainless Steel

8шт.

25

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

16шт.

26

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

27

BN50258

BOLT,3/8"-16 X 1.25", Stainless

2шт.

28

BN50421

SET SCREW

5/16"-18 X 1/2"

8шт.

29

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

34шт.

30

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

31

BN313961

SCREW,Hex, 1/4" x 3/4", SST

1/4" X 3/4", HH, STP, SS

12шт.

32

BN55216

ROLL PIN

5/32 X 1 1/2, SS

4шт.

33

BN55359

LOCK NUT,1/4"-20, SS

34шт.

34

BN55361

NUT,5/16"-18, Nylon, Stainless

16шт.

35

BN65711

CAP

Rect, 1.25 X .162 X 4.00

2шт.

36

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

2шт.

37

BN310862

WASHER

Co-Ap Bin

2шт.
