Запчасти Case IH FLX810 (02-035) - BIN GROUP, DOUBLE & TRIPLE BIN & DOUBLE BIN W/AUGER, RH, 50 CU. FT Bin Group

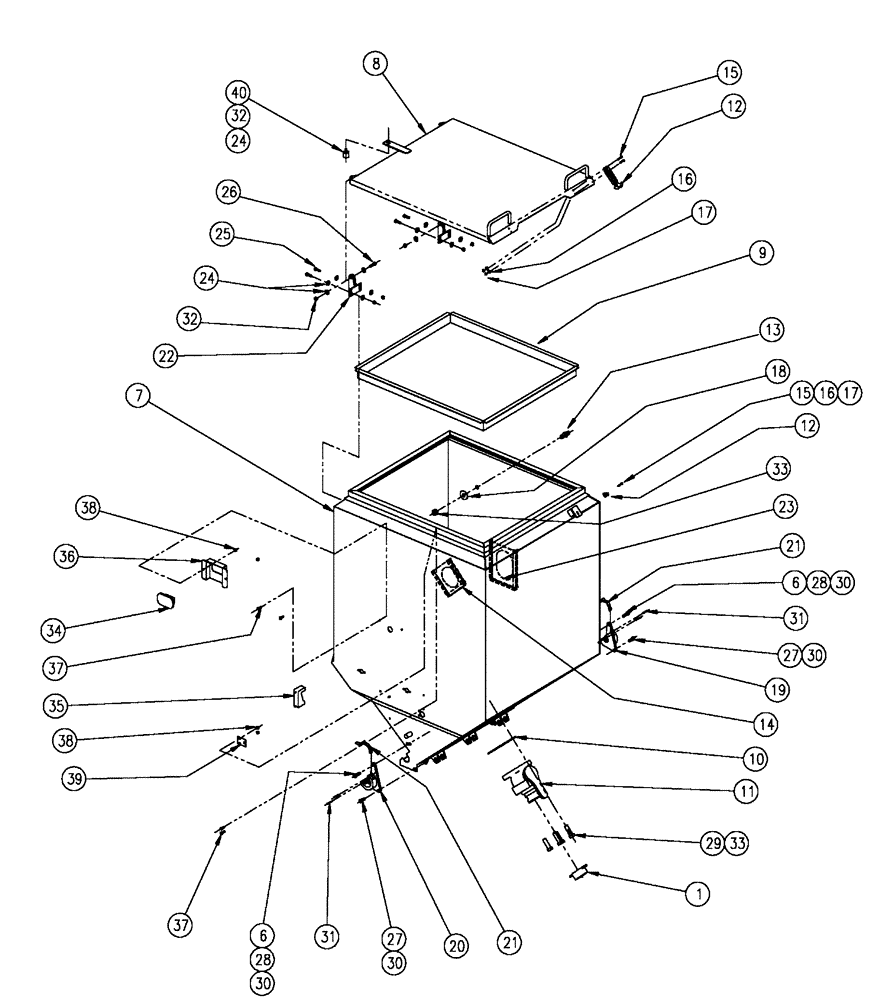

Схема запчастей Case IH FLX810 - (02-035) - BIN GROUP, DOUBLE & TRIPLE BIN & DOUBLE BIN W/AUGER, RH, 50 CU. FT Bin Group
21
31
28
20
32
14
30
21
30
15
34
16
36
18
31
29
25
27
30
33
10
16
40
39
17
30
38
24
26
9
13
6
37
37
35
19
15
33
38
27
6
11
32
12
23
22
8
1
12
24
17
28
7

Артикул

Название

Примечание

Количество

1

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

6

BN23452

WASHER,13/32" x 1.25 " OD x 12 GA, SS

2шт.

7

87266478

CONTAINER

Bin, RH Co-Ap-(50)

1шт.

8

87265914

COVER

Co-Ap Bin(50)

1шт.

9

BN312897

SCREEN

Co-Ap, 50

1шт.

10

BN309335

FLANGE,2" ANSI Flange EPDM Gasket

2" Ansi Flange, EPDM

1шт.

11

BN309336

VALVE,2" Full Port Valve Male Adapter x 2" ANSI Flange

2" FP, Ansi Flange

1шт.

12

BN309337

LATCH

Flexible Draw

1шт.

13

BN309338

PIN

5/8 With Shoulder

1шт.

14

87265979

WINDOW

5.5 x 5.5, Supplemental Bin

1шт.

15

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

3шт.

16

BN310265

WASHER

10, Stainless Steel

3шт.

17

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

3шт.

18

BN310267

WASHER,5/8", Stainless Steel

1шт.

19

BN35705

BEARING HOUSING

Valmar - HSG, LH

1шт.

20

BN35706

BEARING HOUSING

Valmar - HSG, RH

1шт.

21

BN35707

BEARING CAP

Valmar - Latch, Stainless Steel

2шт.

22

87266476

HINGE

Co-Ap Cover (50)

2шт.

23

87265978

WINDOW

Co-Ap Bin

1шт.

24

BN50142

WASHER,5/16", Stainless Steel

12шт.

25

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

4шт.

26

BN50234

BOLT,5/16"-18 X 1-1/4", Stainless Steel

2шт.

27

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

28

BN50258

BOLT,3/8"-16 X 1.25", Stainless

2шт.

29

BN50648

BOLT,5/8"-11 X 2.00", Stainless Steel

4шт.

30

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

31

BN55216

ROLL PIN

5/32 X 1 1/2, SS

4шт.

32

BN55361

NUT,5/16"-18, Nylon, Stainless

6шт.

33

BN55365

LOCK NUT,5/8"-11, Nylon, Stainless

5шт.

34

BN310648

LIGHT

1шт.

See Fig. 02-053

1шт.

35

BN319646

SENSOR

Hopper Level

1шт.

See Fig. 13-015

1шт.

36

BN310644

MOUNTING PLATE

Bin Lights

1шт.

37

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

4шт.

38

BN55359

LOCK NUT,1/4"-20, SS

4шт.

39

BN319230

COVER

Wire, HOP. Sensor

1шт.

40

BN310002

BUMPER

1.00 O.D. x 1.0 H

1шт.

Выбрано товаров: 38
