Запчасти Case IH FLX810 (02-034) - BIN GROUP, DOUBLE BIN, RH, 50 CU. FT Bin Group

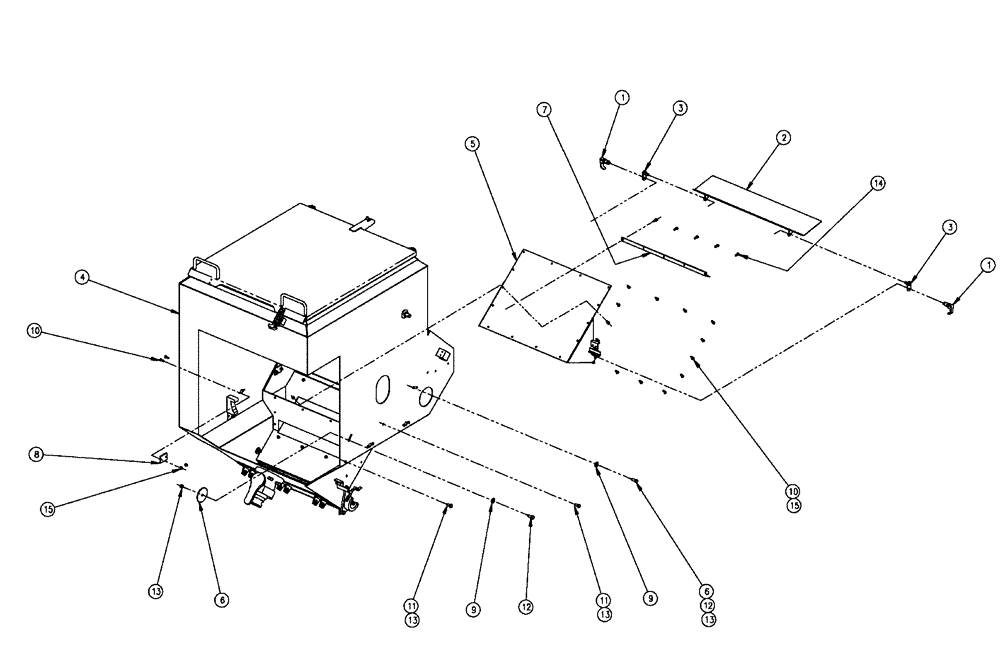

Схема запчастей Case IH FLX810 - (02-034) - BIN GROUP, DOUBLE BIN, RH, 50 CU. FT Bin Group
9
13
7
12
1
12
11
11
2
3
14
6
13
15
5
10
1
6
15
4
3
13
13
10
9
8

Артикул

Название

Примечание

Количество

1

342478A1

LATCH

Swell

2шт.

2

BN308146

COVER

Co-Ap, Lower

1шт.

3

BN308147

PIN

Lower Cover Pivot

2шт.

4

NS

NOT SERVICED

Bin Group, RH, (50)

1шт.

See Fig. 02-035

1шт.

5

BN310861

COVER

Support, RH

1шт.

6

BN310862

WASHER

Co-Ap Bin

2шт.

7

BN310863

STRAP

Formed, Co-Ap Cover

1шт.

8

BN35859

COVER

Shaft Hole, Co-Ap Bin

4шт.

9

BN50146

WASHER,3/8", Stainless

2шт.

10

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

22шт.

11

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

2шт.

12

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

13

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

14

BN313961

SCREW,Hex, 1/4" x 3/4", SST

1/4" X 3/4", HH, STP, SS

5шт.

15

BN55359

LOCK NUT,1/4"-20, SS

22шт.

Выбрано товаров: 16
