Запчасти Case IH FLX810 (02-025) - HYDRAULIC TUBES GROUP, DOUBLE BIN, 37 & 50 CU. FT Bin Group

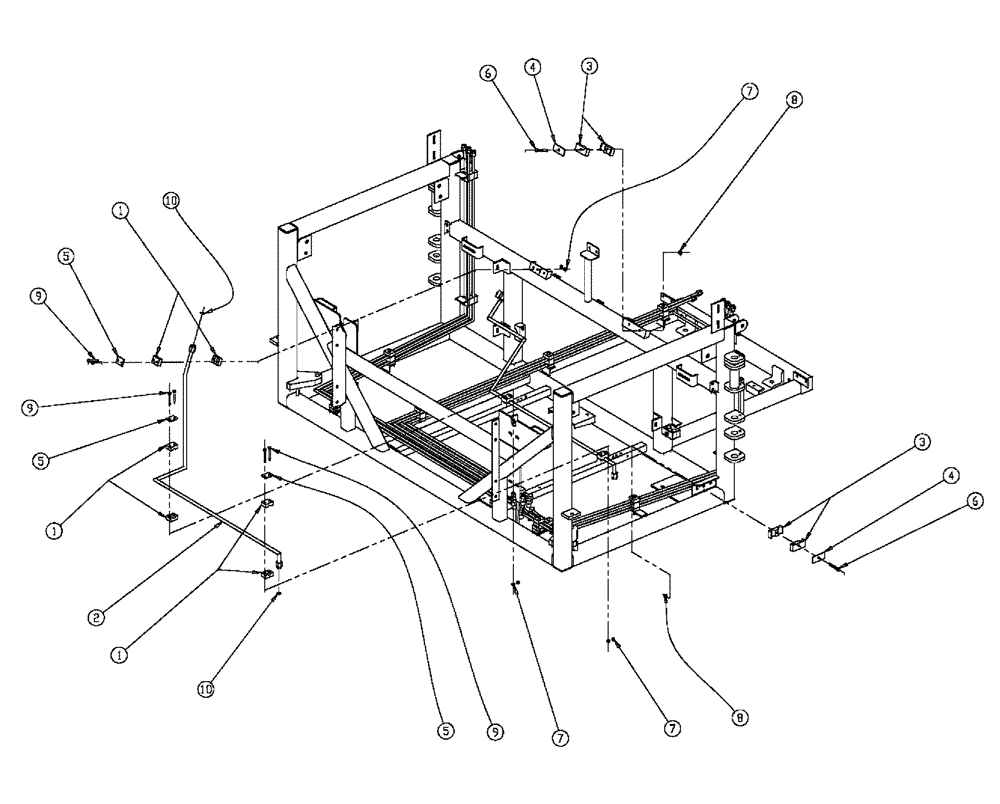

Схема запчастей Case IH FLX810 - (02-025) - HYDRAULIC TUBES GROUP, DOUBLE BIN, 37 & 50 CU. FT Bin Group
6
7
10
3
9
3
5
10
8
5
9
2
8
4
1
6
4
1
5
7
1
7
9

Артикул

Название

Примечание

Количество

1

BN29783

CLAMP

Single, 1/2" Tube

3шт.

2

BN306982

TUBE

Co-Ap, RH

1шт.

3

BN307913

CLAMP

Dual, 1/2 Pipe

2шт.

4

BN309484

PLATE

Dual, Size 3

2шт.

5

BN309485

PLATE

Single, Size 2

3шт.

6

BN50241

BOLT,5/16"-18 X 2-1/4", Stainless Steel

2шт.

7

BN55359

LOCK NUT,1/4"-20, SS

6шт.

8

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.

9

BN55366

BOLT,1/4"-20 x 2.00", Stainless Steel

6шт.

10

BN305413

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

For -8 Ffor

2шт.

Выбрано товаров: 10
