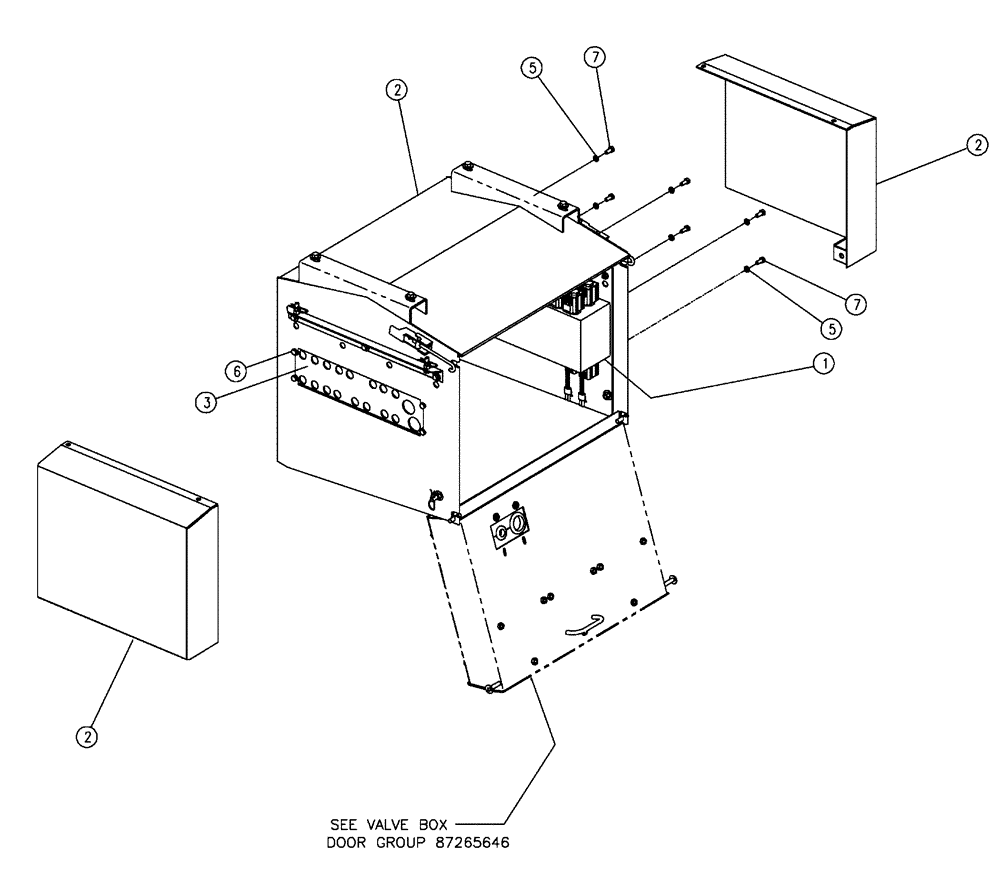

Запчасти Case IH FLX810 (02-019) - VALVE BOX GROUP, DOUBLE BIN W/AUGER Bin Group

1

87267731

HYDRAULIC VALVE

Manifold, Double With Fittings

1шт.

2

NS

NOT SERVICED

Box, Group, Valve 438A

1шт.

See Fig. 02-017

1шт.

3

344012A1

HYDRAULIC VALVE

8 section manifold

1шт.

5

BN50144

LOCK WASHER

5/16, LW, SS

6шт.

6

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

7

BN50476

BOLT,5/16"-18 x 0.75", Stainless

6шт.
