Запчасти Case IH FLX810 (02-017) - VALVE BOX GROUP, DOUBLE & TRIPLE BIN Bin Group

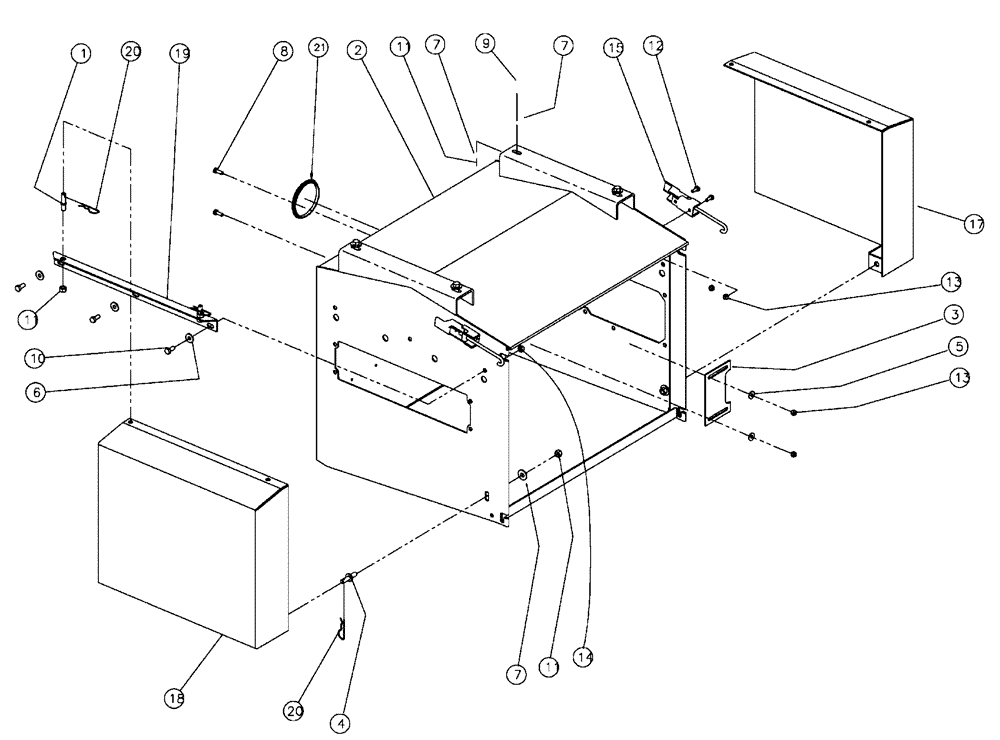

Схема запчастей Case IH FLX810 - (02-017) - VALVE BOX GROUP, DOUBLE & TRIPLE BIN Bin Group
4
6
9
20
12
11
17
1
20
15
21
7
19
3
7
13
2
14
11
8
10
18
7
13
11
5

Артикул

Название

Примечание

Количество

1

BN307047

PIN

3/8 With Shoulder

4шт.

2

87268848

BOX

Valve - 438A

1шт.

3

BN306268

COVER

Access, Valve Box

1шт.

4

BN310283

PIN

3/8 With .75 Shoulder

2шт.

5

BN50138

WASHER,1/4", SS

2шт.

6

BN50142

WASHER,5/16", Stainless Steel

6шт.

7

BN50146

WASHER,3/8", Stainless

10шт.

8

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

9

BN50258

BOLT,3/8"-16 X 1.25", Stainless

4шт.

10

BN50476

BOLT,5/16"-18 x 0.75", Stainless

6шт.

11

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

10шт.

12

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

4шт.

13

BN55359

LOCK NUT,1/4"-20, SS

6шт.

14

BN55361

NUT,5/16"-18, Nylon, Stainless

6шт.

15

BN65808

LATCH

Adjustable Draw

2шт.

17

BN67852

COVER

Side, RH

1шт.

18

BN67855

COVER

Side, LH

1шт.

19

BN67857

ANGLE

Mount, Side Cover

2шт.

20

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

6шт.

21

87265990

PLUG

Button, Flush Type

1шт.

22

87271165

CABLE,713mm L

Breakaway, 28"

1шт.

23

BN311038

NUT

5/16-18 X 2, HH, SS

1шт.

24

BN23452

WASHER,13/32" x 1.25 " OD x 12 GA, SS

12шт.

25

87268865

RETAINER COLLAR

Hinge, Door

2шт.

26

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

2шт.

Выбрано товаров: 25
