Запчасти Case IH FLX810 (02-016) - VALVE BOX GROUP, SINGLE BIN Bin Group

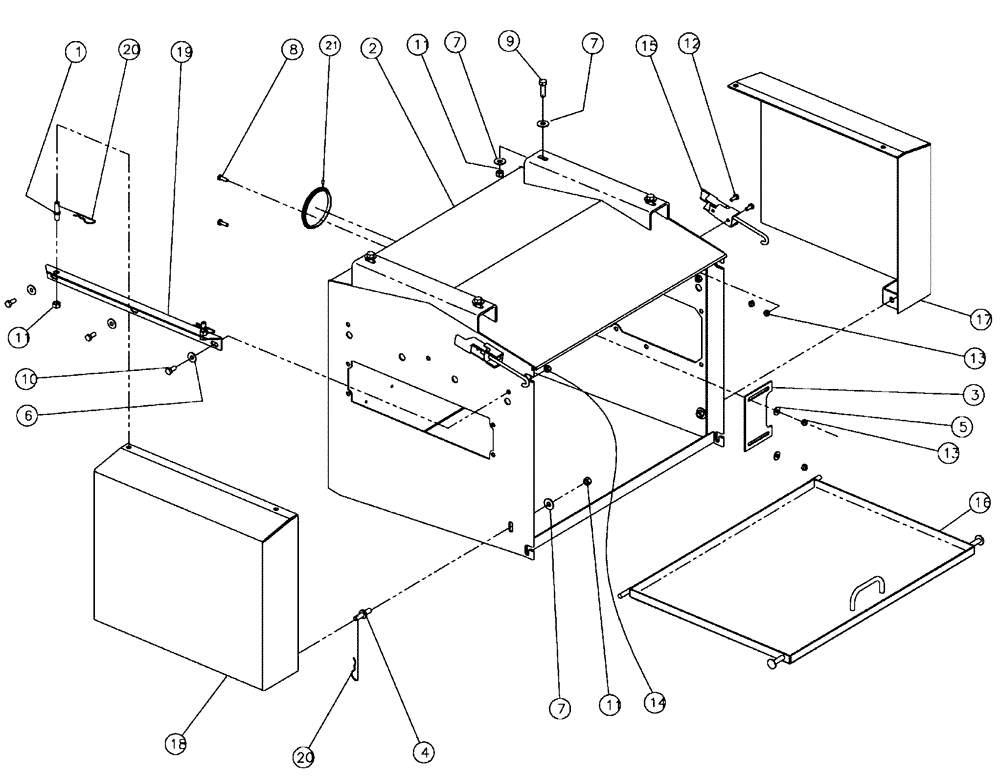

Схема запчастей Case IH FLX810 - (02-016) - VALVE BOX GROUP, SINGLE BIN Bin Group
3
9
20
20
17
15
4
8
13
11
2
11
21
11
7
7
6
14
16
5
12
7
1
18
10
19
13

Артикул

Название

Примечание

Количество

1

BN307047

PIN

3/8 With Shoulder

4шт.

2

87268848

BOX

Valve - 438A

1шт.

3

BN306268

COVER

Access, Valve Box

1шт.

4

BN310283

PIN

3/8 With .75 Shoulder

2шт.

5

BN50138

WASHER,1/4", SS

2шт.

6

BN50142

WASHER,5/16", Stainless Steel

6шт.

7

BN50146

WASHER,3/8", Stainless

10шт.

8

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

9

BN50258

BOLT,3/8"-16 X 1.25", Stainless

4шт.

10

BN50476

BOLT,5/16"-18 x 0.75", Stainless

6шт.

11

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

10шт.

12

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

4шт.

13

BN55359

LOCK NUT,1/4"-20, SS

6шт.

14

BN55361

NUT,5/16"-18, Nylon, Stainless

6шт.

15

BN65808

LATCH

Adjustable Draw

2шт.

16

BN67849

DOOR

Valve Box

1шт.

17

BN67852

COVER

Side, RH

1шт.

18

BN67855

COVER

Side, LH

1шт.

19

BN67857

ANGLE

Mount, Side Cover

2шт.

20

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

6шт.

21

87265990

PLUG

Button, Flush Type

1шт.

Выбрано товаров: 21
