Запчасти Case IH FLX810 (02-011) - PARTS GROUP, DOUBLE BIN W/AUGER, RH, 50 CU. FT Bin Group

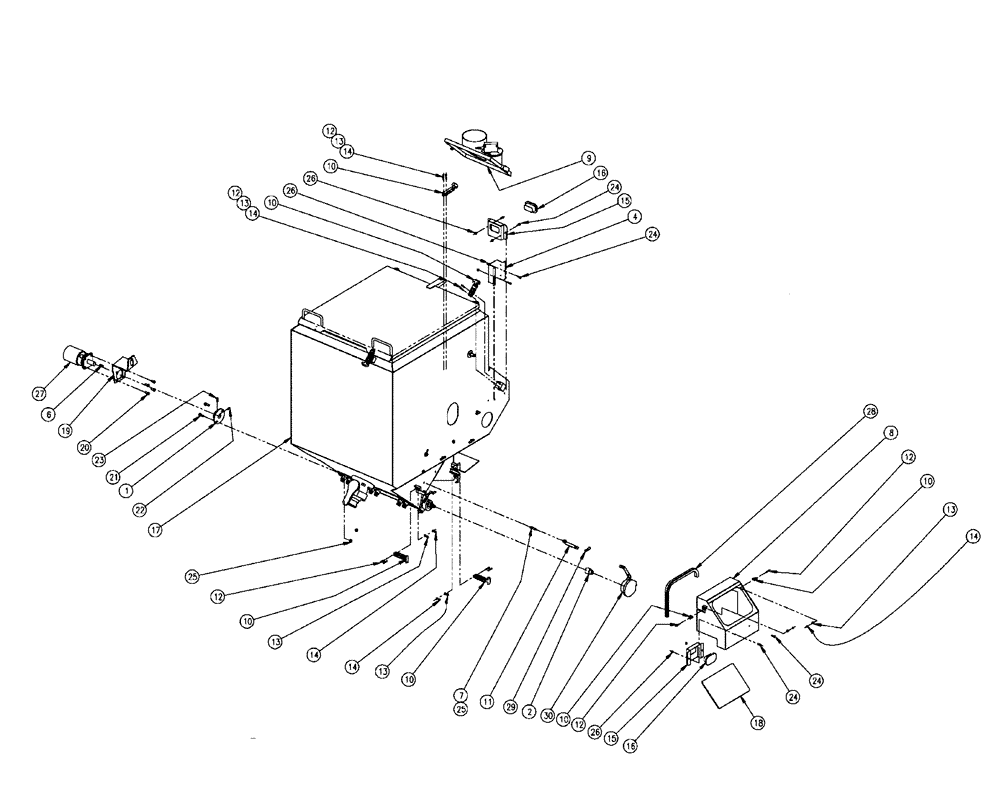

Схема запчастей Case IH FLX810 - (02-011) - PARTS GROUP, DOUBLE BIN W/AUGER, RH, 50 CU. FT Bin Group
28
21
15
6
23
9
26
26
24
10
10
16
19
7
13
26
22
18
12
12
14
8
4
13
1
14
27
14
13
29
25
12
2
14
10
25
24
10
24
10
16
24
17
15
12
13
13
30
10
20
14
12
11

Артикул

Название

Примечание

Количество

1

BN21398A

COUPLING

Machined

1шт.

2

BN22884

KIT

Adaptor

1шт.

4

86986421

BRACKET

Sensor Control

1шт.

6

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

7

BN307047

PIN

3/8 With Shoulder

1шт.

8

BN308143

COVER

Wind, RH

1шт.

9

86986418

COVER

RH Bin (Sensor)

1шт.

See Fig. 02-054

1шт.

10

BN309337

LATCH

Flexible Draw

2шт.

11

BN312519

BRACKET

Bracket, Rate

1шт.

12

BN310264

SCREW,#10 - 24 x 1 1/4", SST

10-24 X 1-1/4", BSH, SS

10шт.

13

BN310265

WASHER

10, Stainless Steel

10шт.

14

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

10шт.

15

BN310644

MOUNTING PLATE

Bin Lights

2шт.

16

BN310648

LIGHT

See Fig 02-053

2шт.

17

NS

NOT SERVICED

Bin Group, RH Double (50)

1шт.

See Fig. 02-034

1шт.

18

87265980

WINDOW

Hopper 12" x 8"

1шт.

19

BN35938

ARM

Torque Arm-Co-Ap, RH

1шт.

20

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

21

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

22

BN50421

SET SCREW

5/16"-18 X 1/2"

1шт.

23

BN50473

SET SCREW

5/16"-18 X 3/4"

1шт.

24

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

6шт.

25

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

3шт.

26

BN55359

LOCK NUT,1/4"-20, SS

6шт.

27

BN65718

HYDRAULIC MOTOR

Co-Ap Bin

1шт.

See Fig. 07-019

1шт.

28

BN67438

SEAL

Weather Strip, Wind Cover

1шт.

29

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

1шт.

30

BN314948

SENSOR

APPLIC. Rate

1шт.

See Fig. 13-016

1шт.

Выбрано товаров: 32
