Запчасти Case IH FLX810 (01-017) - AIR SYSTEM GROUP Basic Unit

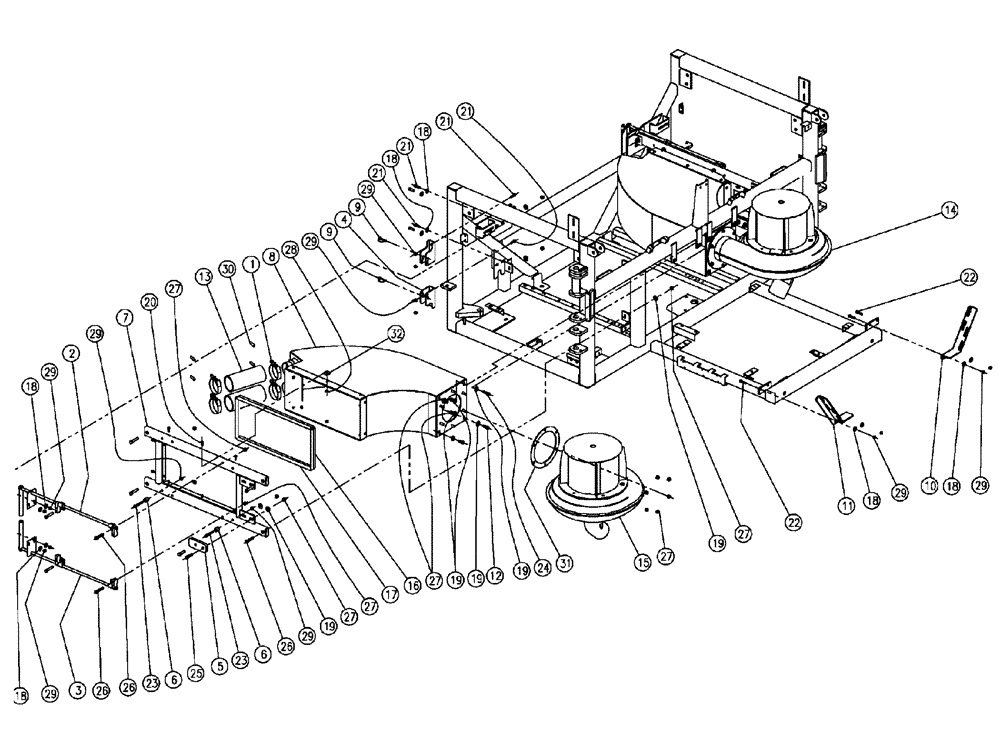

Схема запчастей Case IH FLX810 - (01-017) - AIR SYSTEM GROUP Basic Unit
26
24
19
17
23
2
29
27
29
3
29
9
18
32
7
18
26
12
16
19
27
30
11
22
6
18
18
4
29
13
27
10
29
27
8
22
23
19
15
6
21
21
21
29
21
29
19
29
18
25
28
19
5
27
31
1
27
14
26
18
20
9

Артикул

Название

Примечание

Количество

1

BN15497

CLAMP,76.2mm - 82.55mm

3 1/4", SS, T-Bolt

8шт.

2

BN300688

HANDLE

Lock, RH

2шт.

3

BN300689

HANDLE

Lock, LH

2шт.

4

BN300696

STOP

Handle Lock

4шт.

5

BN300697

STOP

Venturi, Side

2шт.

6

BN300698

STOP

Venturi, Bottom

4шт.

7

BN300699

FRAME

Airway Mount

2шт.

8

343300A1

AIR CHANNEL

Way

2шт.

9

BN15717

PIN

Snap, 1/4" x 1 3/4"

4шт.

10

87267764

BRACKET

RH RR Tube

1шт.

11

87267763

BRACKET

LH RR Tube

1шт.

12

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

13

BN302845

AIR HOSE,27.00"

4шт.

14

NS

NOT SERVICED

Fan Group, 6" Ccw-With Screen

1шт.

See Fig. 01-018

1шт.

15

NS

NOT SERVICED

Fan Group, 6" Cw-With Screen

1шт.

See Fig. 01-020

1шт.

16

BN303334

SEAL

Airway, Side

4шт.

17

BN303335

DOOR SEAL

Airway, Top & Bottom

4шт.

18

BN50142

WASHER,5/16", Stainless Steel

20шт.

19

BN50146

WASHER,3/8", Stainless

28шт.

20

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

20шт.

21

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

16шт.

22

BN50234

BOLT,5/16"-18 X 1-1/4", Stainless Steel

4шт.

23

BN50241

BOLT,5/16"-18 X 2-1/4", Stainless Steel

4шт.

24

BN50258

BOLT,3/8"-16 X 1.25", Stainless

4шт.

25

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

4шт.

26

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

16шт.

27

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

40шт.

28

BN55359

LOCK NUT,1/4"-20, SS

20шт.

29

BN55361

NUT,5/16"-18, Nylon, Stainless

24шт.

30

BN68086

CAP

Rnd, Rubber, .25 ID x 1.00

8шт.

31

BN68580

GASKET

Fan To Airway

2шт.

32

BN23452

WASHER,13/32" x 1.25 " OD x 12 GA, SS

20шт.

Выбрано товаров: 34
