Запчасти Case IH FLX810 (09-007) - FOAM FILL GROUP (16) - FOAM MARKER

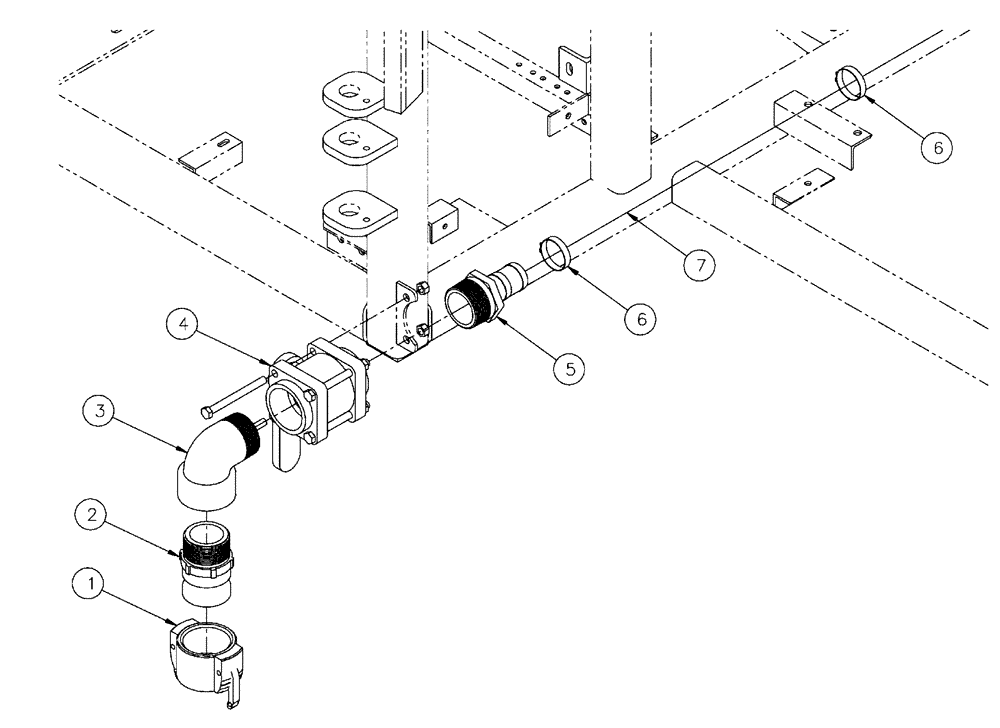

Схема запчастей Case IH FLX810 - (09-007) - FOAM FILL GROUP (16) - FOAM MARKER
6
4
2
6
1
3
7
5

Артикул

Название

Примечание

Количество

1

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

2

BN2396382

COUPLING,2" Male Adapter-2" Male Thread

F 2" Poly

1шт.

3

BN73785

ELBOW

90-Street 2" Poly

1шт.

4

BN317387

VALVE,2" Standard Port Valve

2" Standard

1шт.

5

BN305163

FITTING,2" - 11-1/2 Male NPT x 1-1/2" Hose Barb, Poly

2" NPT x 1.5" Hose Barb

1шт.

7

BN322251

Hose, 1.5" EPDM x 156"

1шт.

Выбрано товаров: 6
