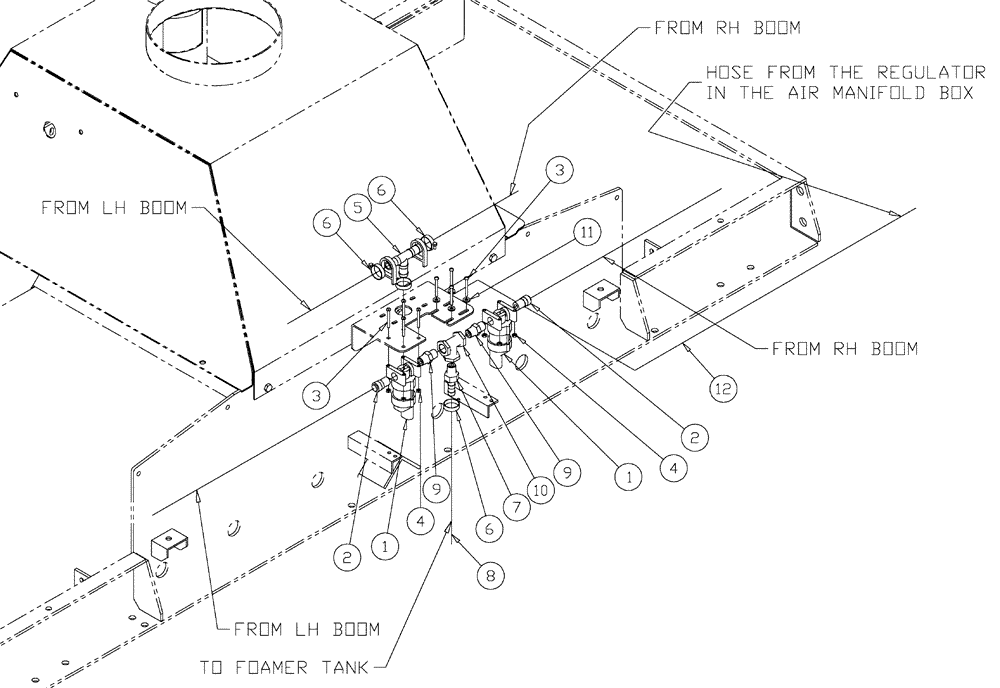

Запчасти Case IH FLX810 (09-006) - SOLENOID GROUP (16) - FOAM MARKER

1

BN307938

VALVE

Solenoid, 1/4 NPT

2шт.

2

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

2шт.

3

BN317051

BOLT

6-32 X 1.25"

8шт.

4

BN317053

LOCK NUT

6-32 nylon lock

8шт.

5

BN324009

TEE

All 1/2" HB, Poly

1шт.

6

BN324022

HOSE CLAMP

#8, Stainless Steel

5шт.

7

86986810

FITTING

Hosebarb, 3/8" X 1/4" NPT

1шт.

8

86986177

HOSE,0.38" ID x 100.00"

Clear

1шт.

9

86986808

NIPPLE

1/4" Short, Poly

2шт.

10

86986807

TEE

1/4" Poly

1шт.

11

86511189

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

4шт.

12

86986173

HOSE,0.50" ID x 200.00"

1шт.

87265139

WIRE HARNESS

RH Liquid Foamer

1шт.

Not Shown

1шт.
