Запчасти Case IH FLX810 (09-004) - CHAMBER GROUP, RH (16) - FOAM MARKER

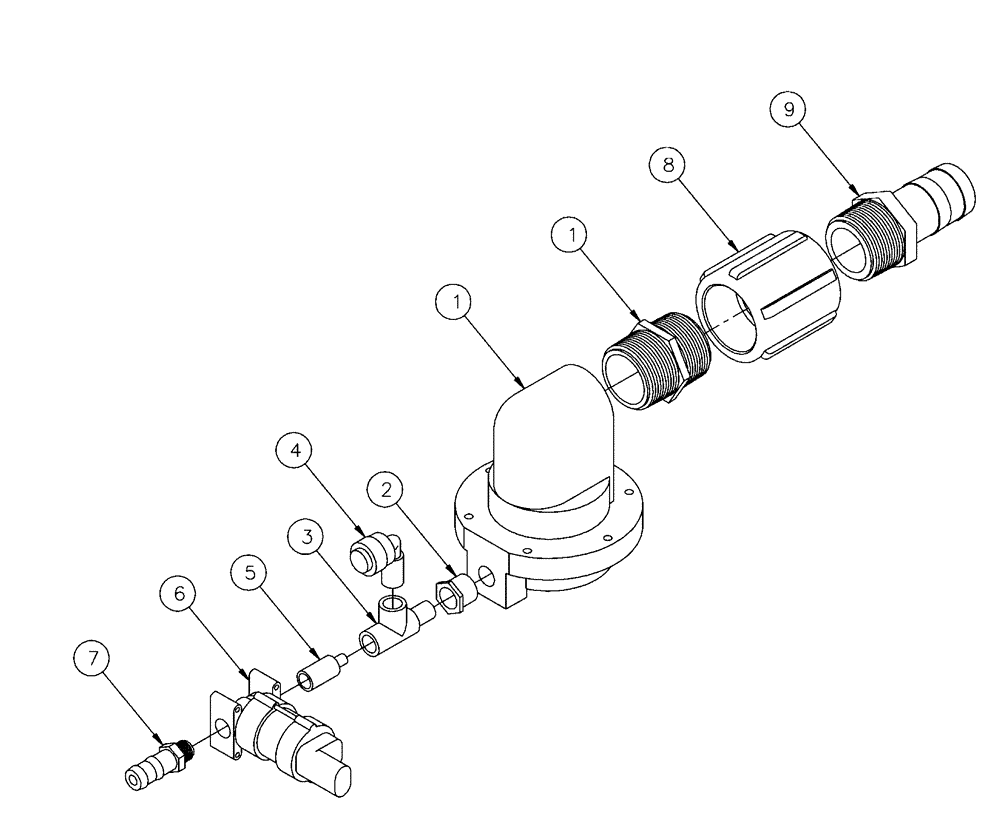

Схема запчастей Case IH FLX810 - (09-004) - CHAMBER GROUP, RH (16) - FOAM MARKER
1
1
3
8
5
4
7
9
6
2

Артикул

Название

Примечание

Количество

1

BN307636

CHAMBER

Foam Mixing

1шт.

2

BN313188

BUSHING

3/8NPT-1/4NPT, SS

1шт.

3

BN313189

TEE

4-4-4, NPT, SS

1шт.

4

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

5

BN322427

VENTURI

Foamer Assembly

1шт.

6

BN307938

VALVE

Solenoid, 1/4 NPT

1шт.

7

BN324008

FITTING

1/4" NPT x 1/2" Hose Barb, Poly

1шт.

8

BN305269

COUPLING

1-1/4" NPT, Poly

1шт.

9

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

Выбрано товаров: 9
