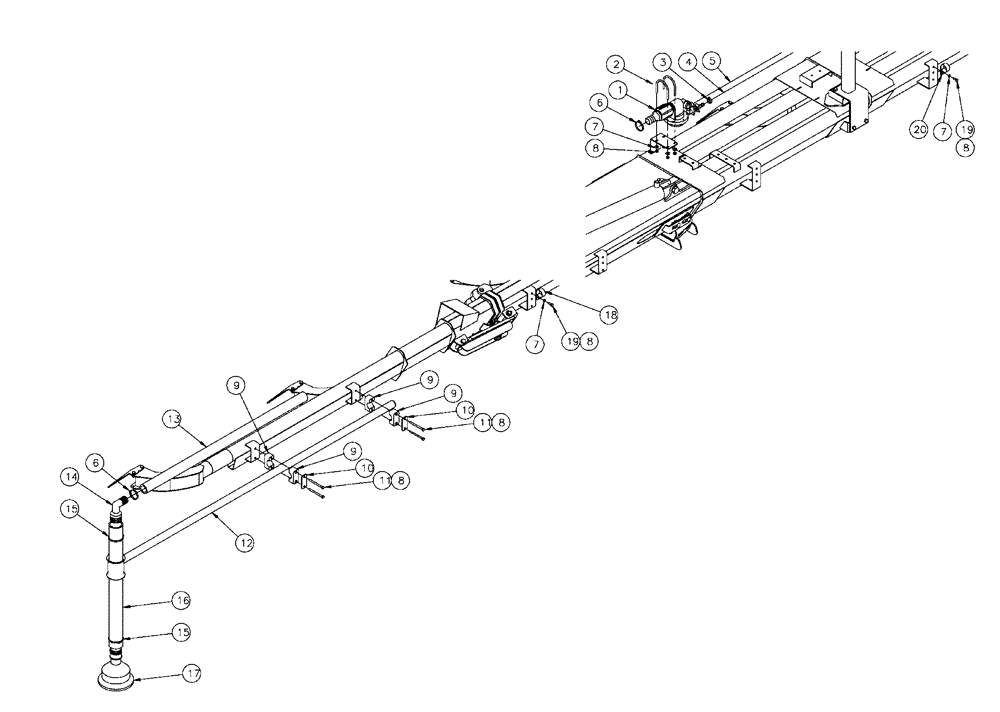

Запчасти Case IH FLX810 (09-002) - FOAM TUBE GROUP, RH (16) - FOAM MARKER

1

NS

NOT SERVICED

Chamber Group, Flex-Air, RH

1шт.

See Fig. 09-003

1шт.

2

87266747

U-BOLT

1/4"-20 x 2.5 ID x 3"

2шт.

3

BN324022

HOSE CLAMP

#8, Stainless Steel

1шт.

4

86986173

HOSE,0.50" ID x 200.00"

1шт.

5

86986175

TUBE,0.375" DIA x 200" L

Synflex, 3/8" X 200"

1шт.

6

BN310447

HOSE CLAMP

#20, Stainless Steel

2шт.

7

BN50138

WASHER,1/4", SS

8шт.

8

BN55359

LOCK NUT,1/4"-20, SS

12шт.

9

BN67054

CLAMP

1.315" OD

4шт.

10

BN309483

PLATE

Single, Size 5

2шт.

11

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

4шт.

12

86986166

TUBE,69.10" L

Foam Drop

1шт.

13

87266751

HOSE

1-1/4" X 262", Type K

1шт.

14

BN310939

FITTING,2" Male Thread x 1-1/4" 90 Degree Hose Barb

2" Hose Barb x 1-1/4" Hose Barb, 90 DEG, Poly

1шт.

15

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

2шт.

16

87268528

HOSE,2.00" ID x 26.00"

Foam Drop

1шт.

17

BN2403252

BELL

Foam Marker

1шт.

18

BN325890

CLAMP

Vinyl Coated 1-9/16

3шт.

19

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

1шт.

20

87035382

CLAMP,30.2mm, Coat, 10.3mm Bolt Hole, P Type

2шт.
