Запчасти Case IH FLX810 (01-010) - HOPPER GROUP, FLEX, 60’ & 70’ Basic Unit

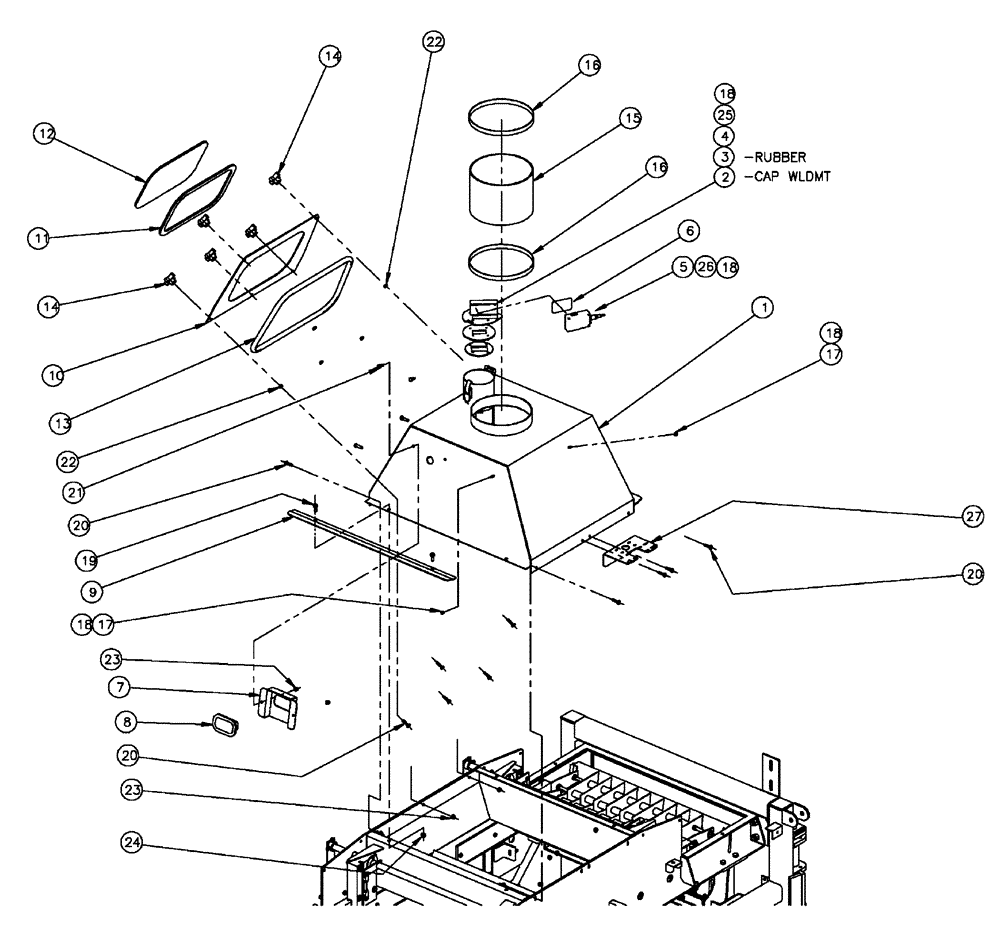

Схема запчастей Case IH FLX810 - (01-010) - HOPPER GROUP, FLEX, 60’ & 70’ Basic Unit
17
12
19
20
18
1
5
14
3
6
24
18
2
4
7
10
23
11
27
25
21
13
23
18
18
16
17
22
14
8
22
20
9
26
18
15
20

Артикул

Название

Примечание

Количество

1

86986109

HOPPER

1шт.

2

86986111

CAP

Cap, RH Mount

1шт.

3

86986115

RUBBER SLEEVE

Rubber

1шт.

4

86986114

PLATE

Retainer

1шт.

5

BN322583

SENSOR

See Fig 13-014

1шт.

6

BN321167

GASKET

Sensor Cushion

1шт.

7

BN310644

MOUNTING PLATE

W/M, Bin Lights

1шт.

8

BN310648

LIGHT

1шт.

9

BN306990

STRAP

Cover Holddown

2шт.

10

BN63535

COVER

Hopper Access

1шт.

11

84167814

RUBBER SEAL

Conveyor Access

1шт.

12

87265980

WINDOW

Hopper 12" x 8"

1шт.

13

BN68012

SEAL

Cover, Conv Access

1шт.

14

BN313479

KNOB

1/4-20 SS Insert

5шт.

15

BN69181

HOSE

8" ID x 6.00, Flexible

1шт.

16

BN85062

HOSE CLAMP

8"

2шт.

17

BN9990114

STRAP

"Eye Ty" 06205 3M

2шт.

18

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

8шт.

19

BN50476

BOLT,5/16"-18 x 0.75", Stainless

4шт.

20

BN50671

BOLT,1/4"-20 x 1.00", Stainless Steel

12шт.

21

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

4шт.

22

BN50054

NUT,1/4"-20, SS

5шт.

23

BN55359

LOCK NUT,1/4"-20, SS

11шт.

24

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

25

BN2407985

SCREW,Hex, #10 - 24 x 3/4"

10-24 x 3/4", HH, SST

4шт.

26

BN316803

SCREW,#10 - 24 x 1 1/2", SST

Mach-#10-24 X 1.5SS

2шт.

27

87266013

PLATE

Solenoid Valve Mount

1шт.

Выбрано товаров: 27
