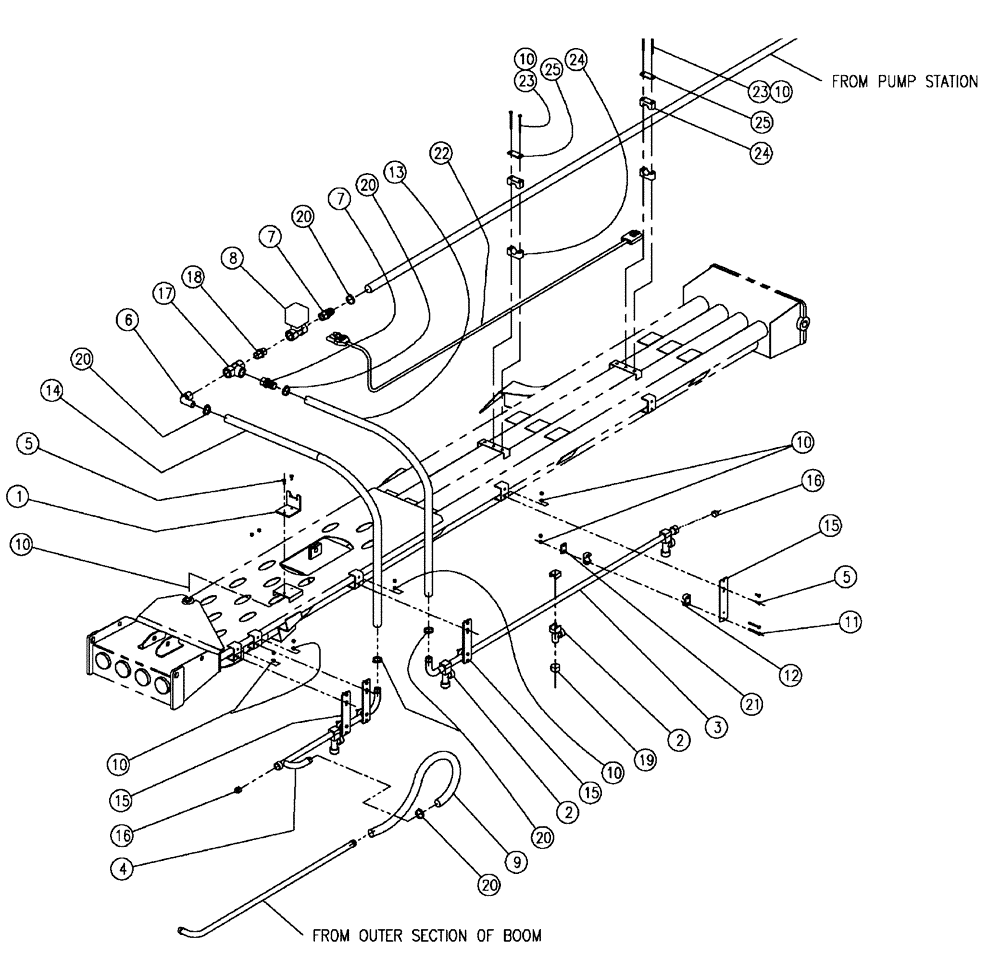

Запчасти Case IH FLX810 (10-031) - WET BOOM, 3.0”, RH, INNER, 60’ Wet Kit

1

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

1шт.

2

BN25237

NOZZLE

Nozzle (1 Way) 3/4" Pipe

4шт.

4

BN300291

BAR

Spray, Inner, End, RH

1шт.

5

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

10шт.

6

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

7

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

8

87389559

VALVE

Electric, 1" Ball

1шт.

9

BN53912

HOSE

1" ID EPMD x 38"

1шт.

10

BN55359

LOCK NUT,1/4"-20, SS

22шт.

11

BN55379

BOLT,1/4"-20 X 2-1/4", Stainless Steel

8шт.

12

BN65324

CLAMP

1" OD, Poly

4шт.

13

BN66856

HOSE

1" EPMD x 25.00"

1шт.

14

BN66859

HOSE

1" EPMD x 23.00"

1шт.

15

BN68981

BRACKET

Spray Bar

4шт.

16

BN73553

PLUG

3/4" NPT, Poly

2шт.

17

BN73629

TEE

1" Poly Pipe

1шт.

18

BN73648

NIPPLE

1" Short Poly Pipe

1шт.

19

BN74619

CAP

W/Gasket Tee Jet Black

4шт.

20

BN310447

HOSE CLAMP

#20, Stainless Steel

6шт.

21

BN311249

PLATE

Top , Single, Size 3

4шт.

22

BN313987

WIRE HARNESS

Ball Valve EXT.

1шт.

23

BN55381

BOLT

1/4"-20 X 3-1/4", Stainless Steel

4шт.

24

BN67494

CLAMP

Single,1.5 DIA.

2шт.

25

BN309483

PLATE

Clamp Top, Single Clamp

2шт.
