(10-025) - SPARGE GROUP, FLEX LIQUID, 60’ & 70’

Запчасти Case IH FLX810 (10-025) - SPARGE GROUP, FLEX LIQUID, 60’ & 70’ Wet Kit

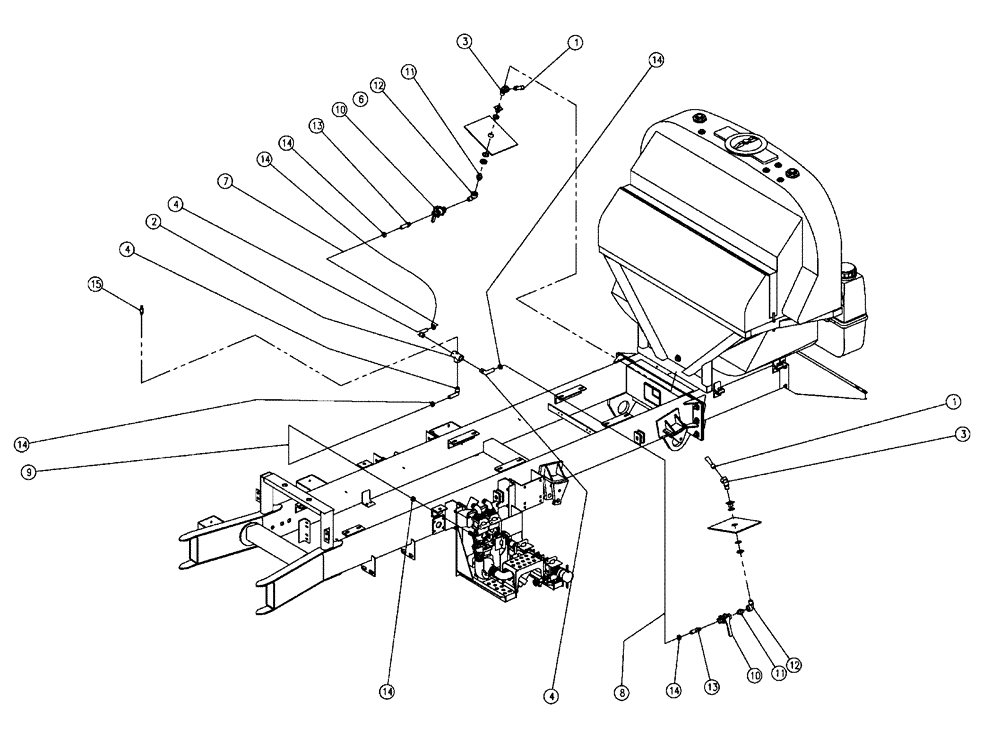

Схема запчастей Case IH FLX810 - (10-025) - SPARGE GROUP, FLEX LIQUID, 60’ & 70’ Wet Kit
14
10
1
4
10
6
12
3
12
11
14
4
11
3
2
8
13
7
1
14
9
14
13
4
14
15
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN310059

NOZZLE

Sparge 9/32

2шт.

2

BN310060

TEE

1", Poly W/1/4" Port

1шт.

3

BN310061

ELBOW,3/4" 45 Degree Poly Street Elbow

Elbow, 45 Street, 3/4", Poly

2шт.

4

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

3шт.

7

BN53747

FLEXIBLE HOSE,1.00" ID x 48.00"

1шт.

8

BN53756

HOSE,42.00"

1шт.

9

BN53820

EPDM 1" ID x 92"

1шт.

10

BN73564

VALVE

3/4" Ball Poly 2 Way

2шт.

11

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

2шт.

12

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

90, Street, 3/4" Poly

2шт.

13

BN73569

FITTING

Hosebarb-3/4 NPT X 1 Hose

2шт.

14

BN310447

HOSE CLAMP

#20, Stainless Steel

6шт.

15

87266753

SENSOR

pressure xducer

1шт.
