(10-024) - MANIFOLD GROUP, FLEX LIQUID, 60 & 70’

Запчасти Case IH FLX810 (10-024) - MANIFOLD GROUP, FLEX LIQUID, 60 & 70’ Wet Kit

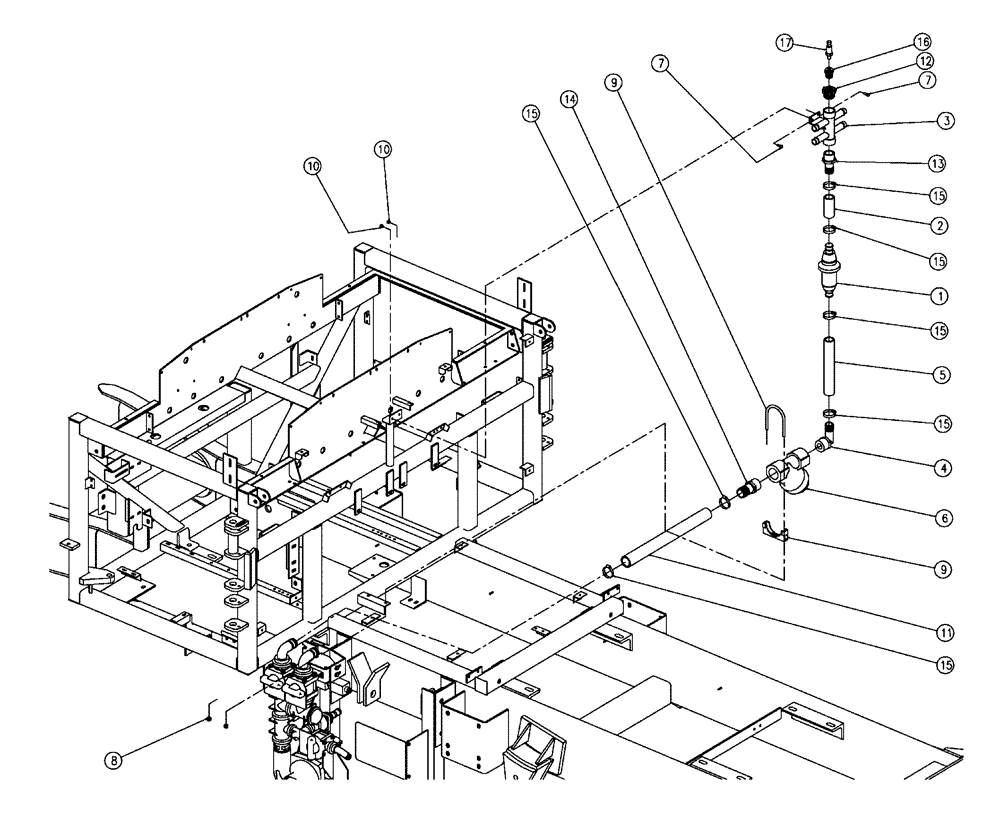

Схема запчастей Case IH FLX810 - (10-024) - MANIFOLD GROUP, FLEX LIQUID, 60 & 70’ Wet Kit
15
17
4
6
11
10
15
2
15
13
12
3
7
8
9
16
14
15
5
9
1
15
15
10
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87378188

REPAIR KIT

Raven RFM60 Flow Meter With Adaptor Harness

1шт.

2

BN24645

HOSE

1 1/4 EPDM x 3 1/2

1шт.

3

BN304699

MANIFOLD

Flex Liquid

1шт.

4

BN308040

FITTING,1-1/2" Male Thread x 1-1/4" 90 Degree Hose Barb

1.5 NPT, 1.25 HB, 90º

1шт.

5

BN29563

HOSE

Bulk 1.25" EPDM, Discharge

1шт.

Cut 10" from bulk hose

1шт.

6

BN309963

FILTER STRAINER,1-1/2" x 1-1/2" Y Strainer

Line,1.5", 50 Mesh

1шт.

7

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

8

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

9

BN53399

PIPE CLAMP

3" Muffler

1шт.

10

BN55359

LOCK NUT,1/4"-20, SS

2шт.

11

BN67239

HOSE

1.50 X 20.50 EPDM

1шт.

12

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

Reducer, 1-1/4" MPT x 3/4" FPT, Poly

1шт.

13

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

14

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

1шт.

15

BN76020

HOSE CLAMP

1 & 1/2 - 2 Hose SS

6шт.

16

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT, Poly

1шт.

17

87266753

SENSOR

pressure xducer

1шт.
